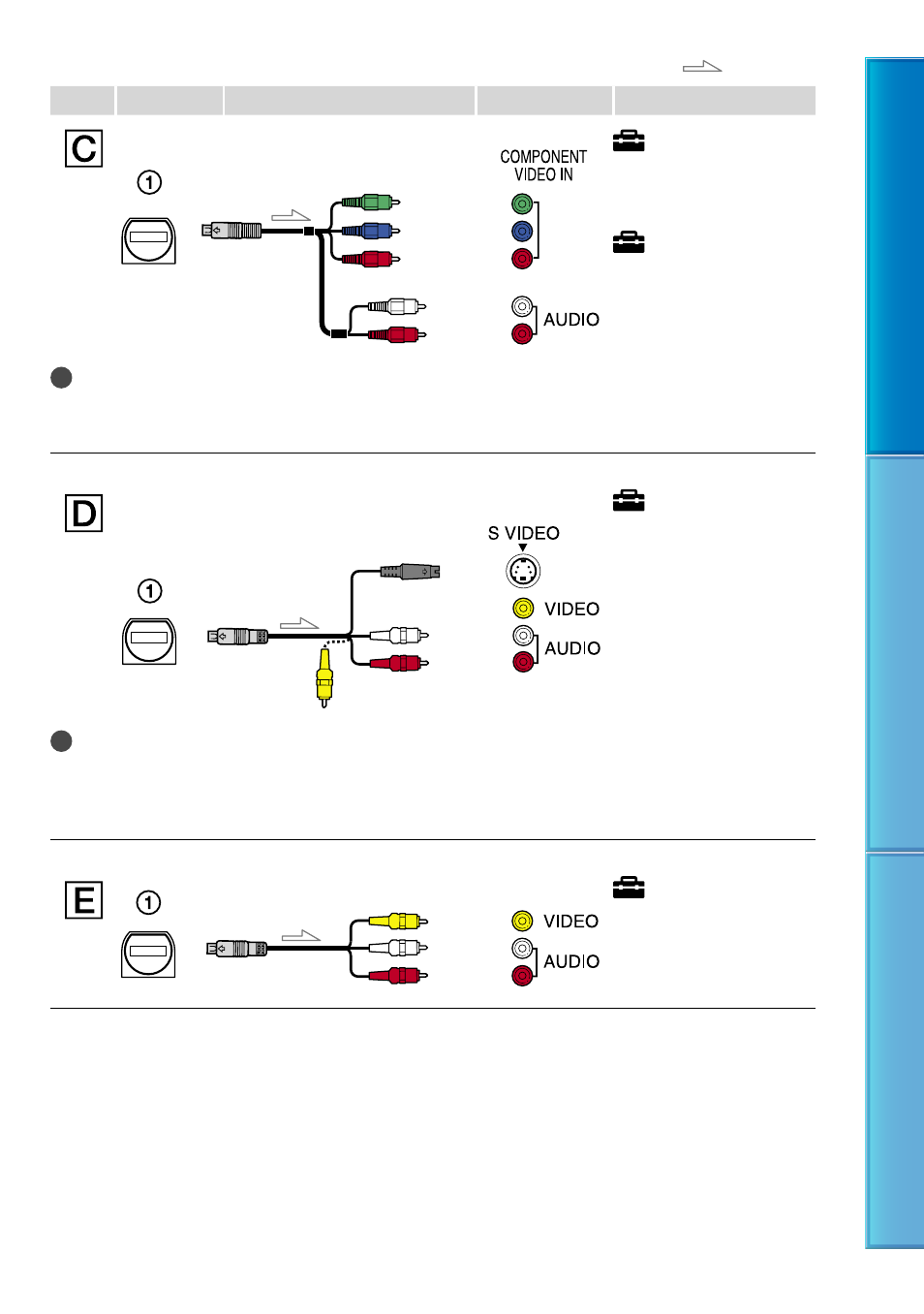

: Signal flow
Type Camcorder Cable TV HOME MENU setting
(SETTINGS) 
[OUTPUT SETTINGS]
 [COMPONENT] 
[576i] (p. 92)
(SETTINGS) 
[OUTPUT SETTINGS]
 [TV TYPE] 
[16:9]/[4:3] * (p. 91)
Notes
If you connect only component video plugs, audio signals are not output. Connect the white and red
plugs to output audio signals.
(SETTINGS) 
[OUTPUT SETTINGS]
 [TV TYPE] 
[16:9]/[4:3] * (p. 91)
Notes
When the S VIDEO plug (S VIDEO channel) is connected, audio signals are not output. To output audio
signals, connect the white and red plugs to the audio input jack of your TV.
This connection produces higher resolution images compared with the A/V connecting cable (Type ).
(SETTINGS) 
[OUTPUT SETTINGS]
 [TV TYPE] 
[16:9]/[4:3] * (p. 91)
* Set [TV TYPE] according to your TV.





Component A/V cable
(supplied)
(Green) Y
(Blue) P
B
/C
B
(Red) P
R
/C
R
(White)
(Red)
A/V connecting cable with
S VIDEO (sold separately)
(White)
(Red)
(Yellow)
A/V connecting cable
(supplied)
(White)
(Red)
(Yellow)
