Simplicity 1180 - Manual (Page 50)

46 TP 400-2307-03-LW-S

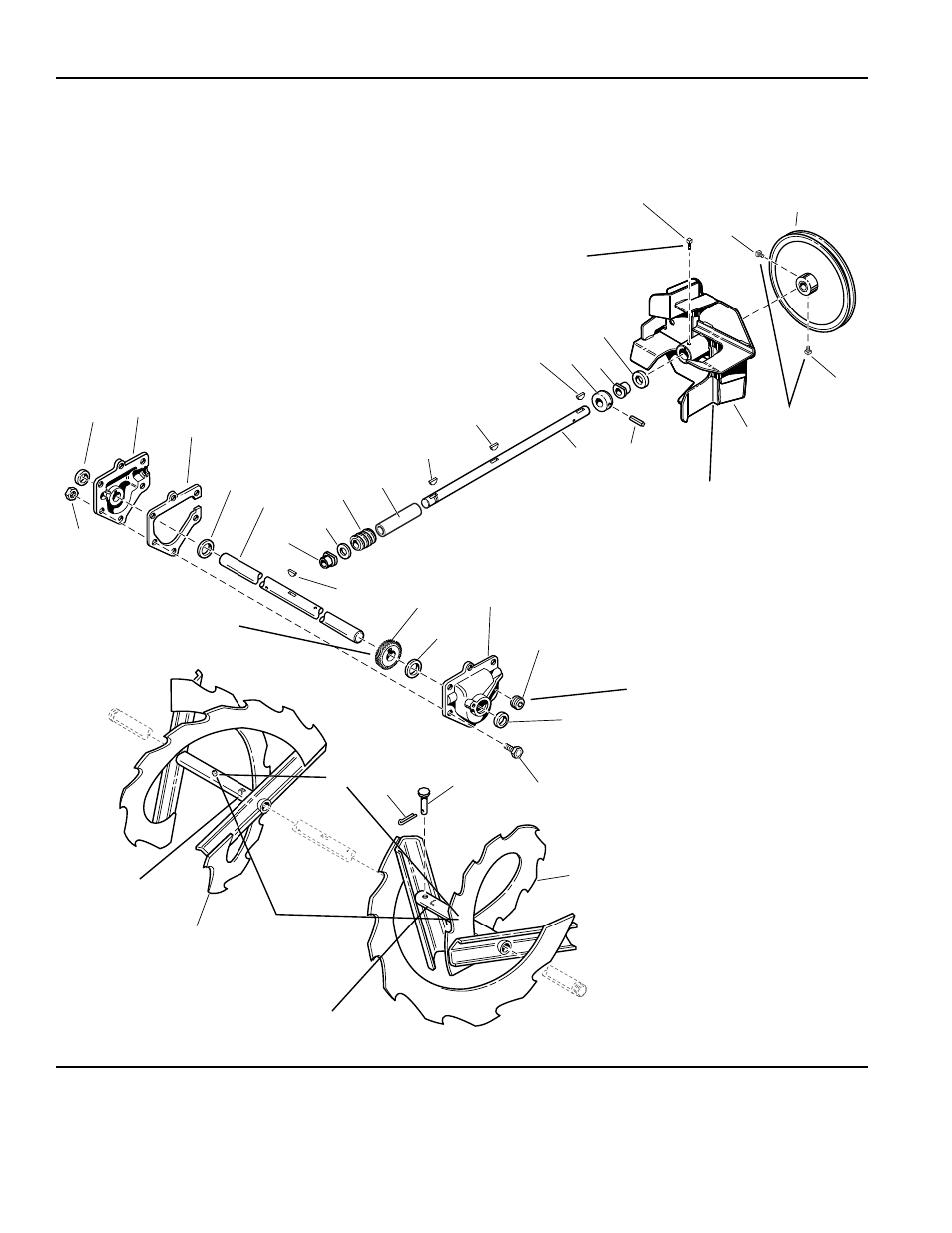

Auger and Impeller Group - 28”
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985467
End of hub to be flush
with end of rolled down
shaft (Ref. 9).
Torque to 30 -34 ft-lbs.
40 - 46 Nm.
Impeller to be positioned
against bearing before
tightening set screw.
Marked side of worm
gear must contact against
left thrust washer to assure
proper gear mesh.
Auger assembly
stamped "R".
Auger assembly
stamped "L".
Torque to
18-21 ft-lbs.
24 - 28 Nm.
Apply grease until
it appears at ends
of auger assembly
(2 places).
Torque to 9 - 11 ft-lbs.
12 - 15 Nm.
1
2
3
4
5
6
7
8 9
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
27
2
10
10
6
26
14
18
11
29 29
The above parts group applies to the following Mfg. Nos.:
1693654 970M, 9HP Manual Start
1693655 970M, 9HP Manual Start (Export)
1694243 970E, 9HP Electrical Start
© Copyright 2002 Simplicity Manufacturing, Inc. All Rights Reserved.
