3-1 Connections to External Devices
3-1-1 Connections to Digital Devices
This unit can input serial digital signals (video and
audio) from another digital VTR such as the MSW-
A2000/A2000P/M2000/M2000P/2000/2000P and

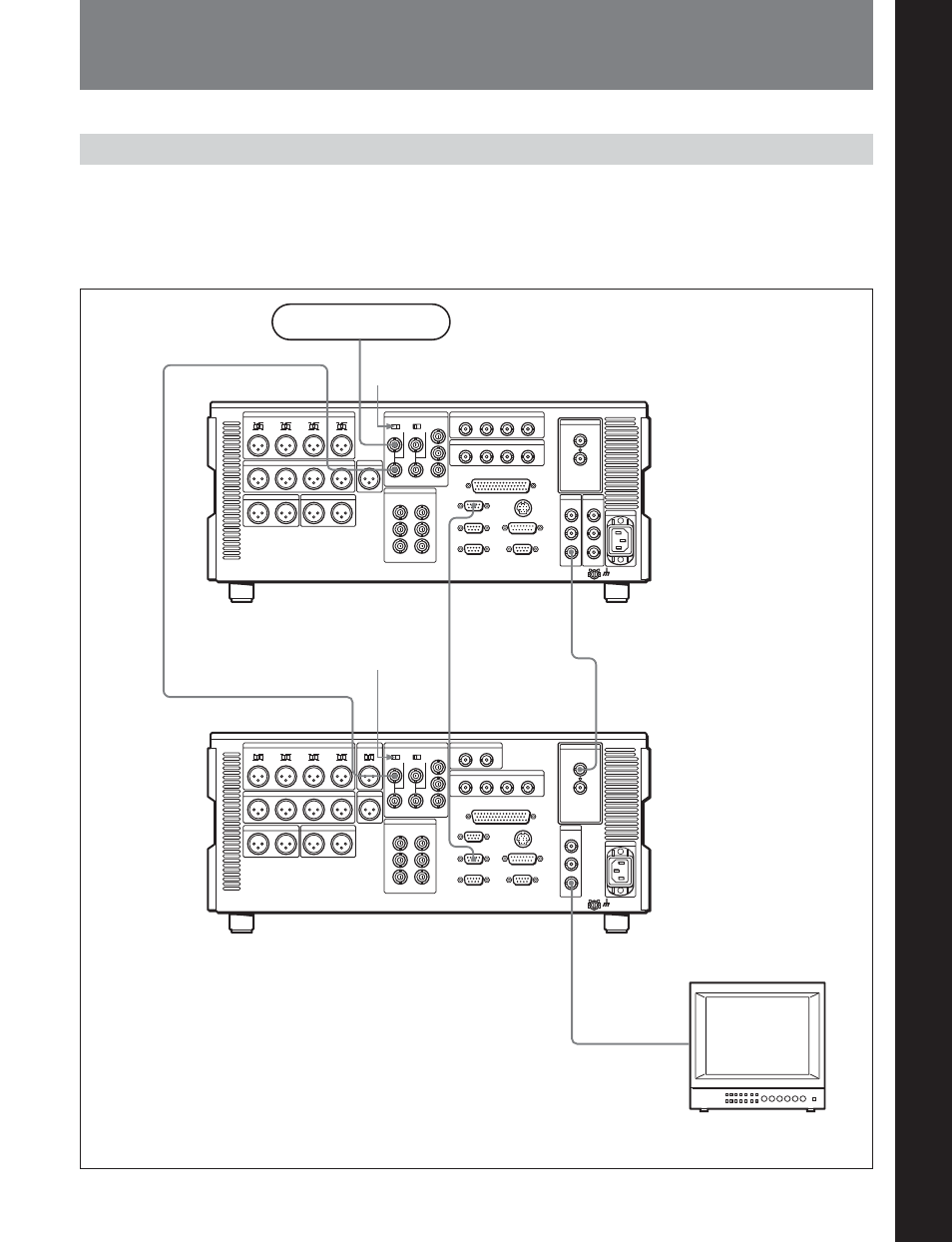

DVW-A500/A500P/500/500P. The following example shows the connections with a MSW-A2000/A2000P/
M2000/M2000P/2000/2000P unit as a player, with this
unit used as recorder.
75 Ω 75 Ω
REMOTE 1-OUT(9P)
REMOTE 1-IN(9P)
SDI OUTPUT 3
SDI OUTPUT 3
SDI INPUT REF. VIDEO INPUT
REF. VIDEO INPUT
Reference signal
MSW-A2000/A2000P/M2000/
M2000P/2000/2000P (player)
DVW-M2000/M2000P/2000/2000P (recorder)
BVM-1454 series video
monitor
75
Ω
termination
switch: ON
75
Ω
termination
switch: OFF
