Sony DAV-DZ270 - Manual (Page 25)

25 GB
Ge
tting Star
te
d
DAV-HDZ278
Note
• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Tip
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial) as shown below.
CENTER SUBWOOFER
DIGITAL IN
P B /C B P R /C R Y COAXIAL OPTICAL
FRONT R FRONT L SUR R SUR L
SPEAKER
TV/VIDEO HDMI OUT VIDEO OUT
SPEAKER
COMPONENT VIDEO OUT
COAXIAL 75
AM FM
ANTENNA
DMPORT
DC5V
0.7A MAX
AUDIO IN L R
TV/VIDEO
COAX
IAL 7 5
FM
ANTEN
NA
A
B

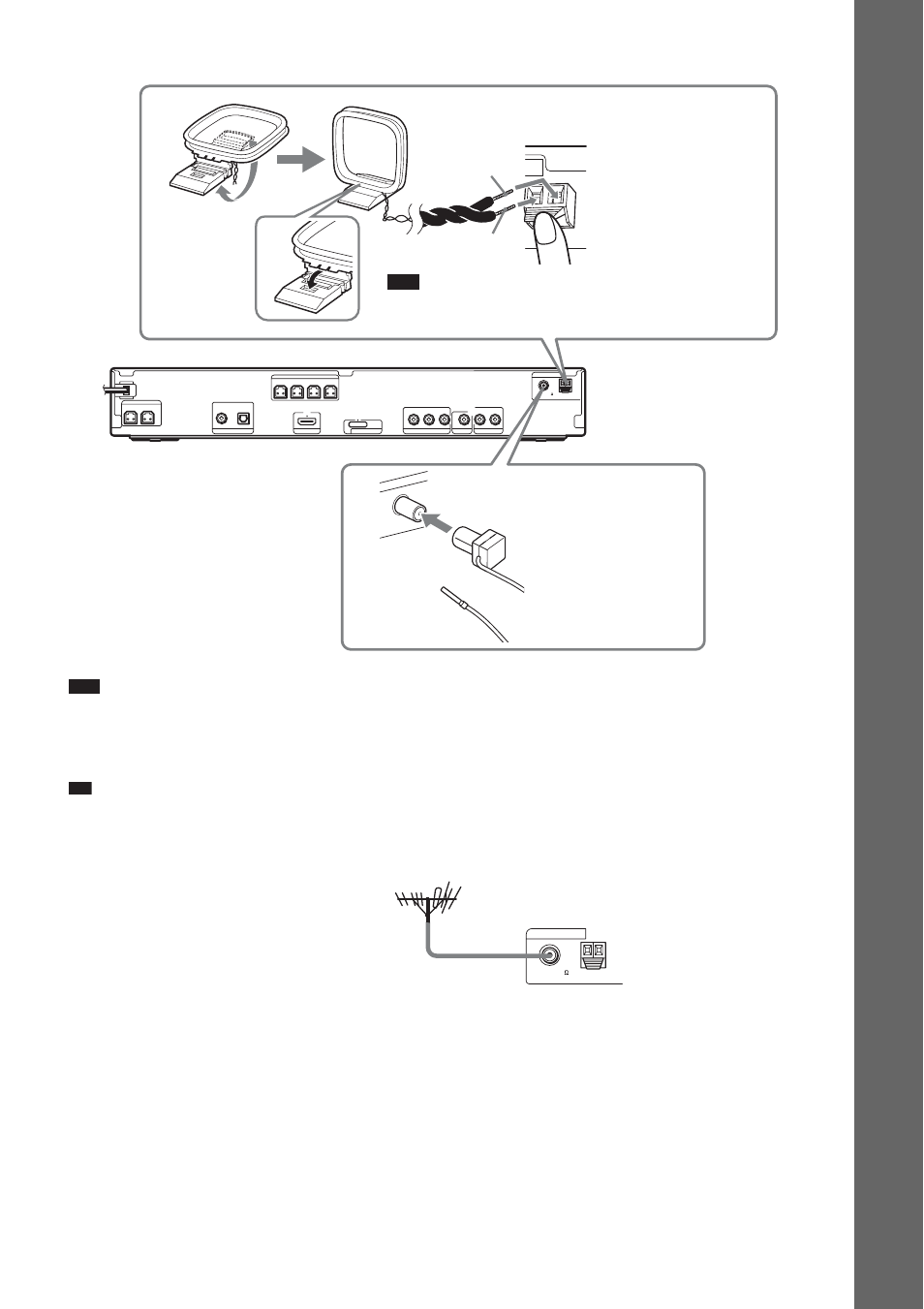

Rear panel
AM loop antenna (aerial)
(supplied)
FM wire antenna (aerial)
(supplied)
or
Note
• Cord (A) or cord (B) can be connected to either
terminal.
COAXIAL 75
AM FM
ANTENNA
Outdoor FM antenna (aerial)
Unit
