Spalding M60 1111 - Manual (Page 20)

20
P/N M601111 08/05
8.
57
36
56
52
21

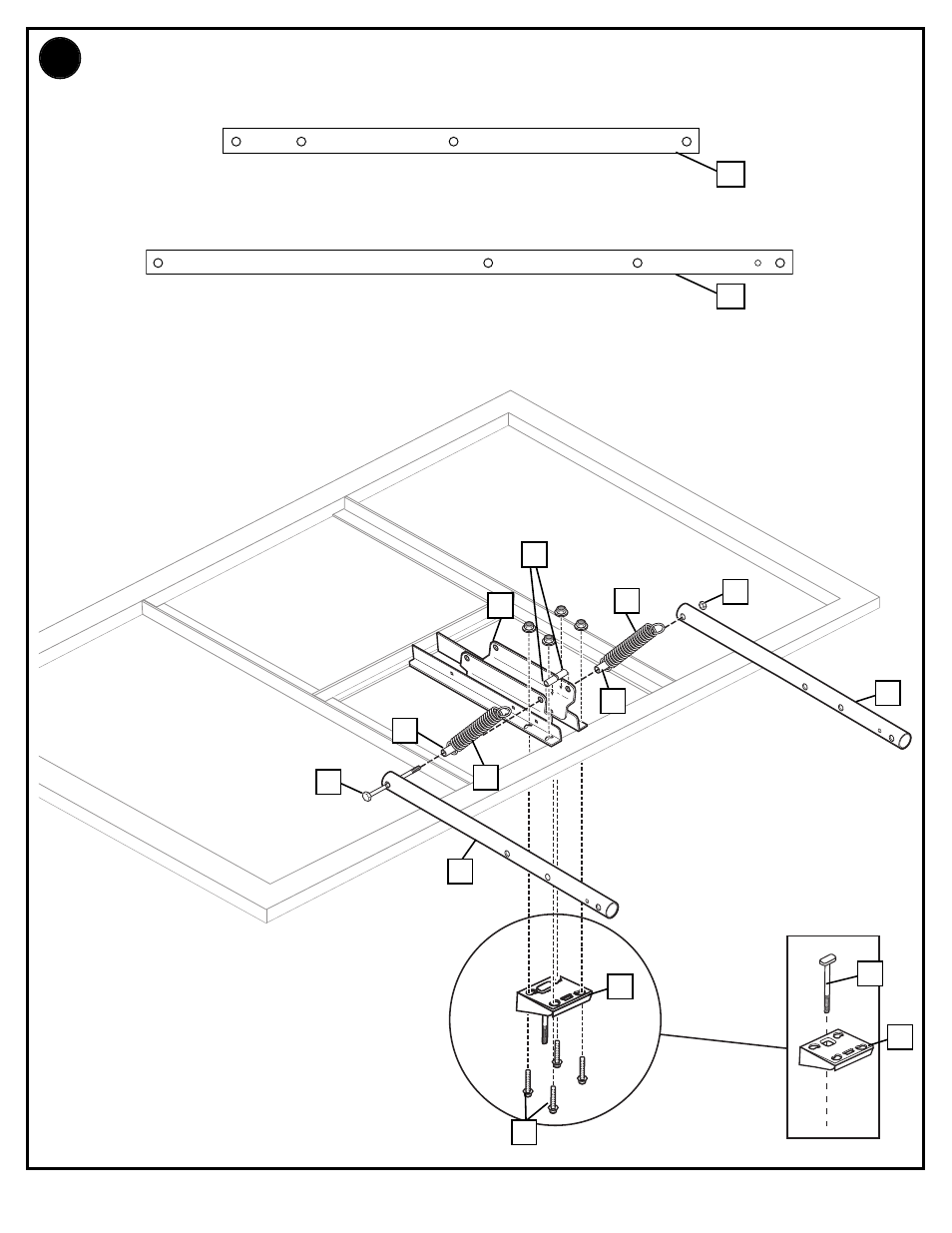

Attach lower elevator tubes (34) and counter balance spring (36) to backboard support
brackets (52) using spacers (53 & 56), bolt (57), and nut (21) as shown.
34
34
53
56
36
33 Upper Elevator tube
Toward
Pole
Toward
Board
34 Lower Elevator tube
Toward
Pole
Toward
Board
Identify elevator tubes (33 & 34).
68
52
66
52
