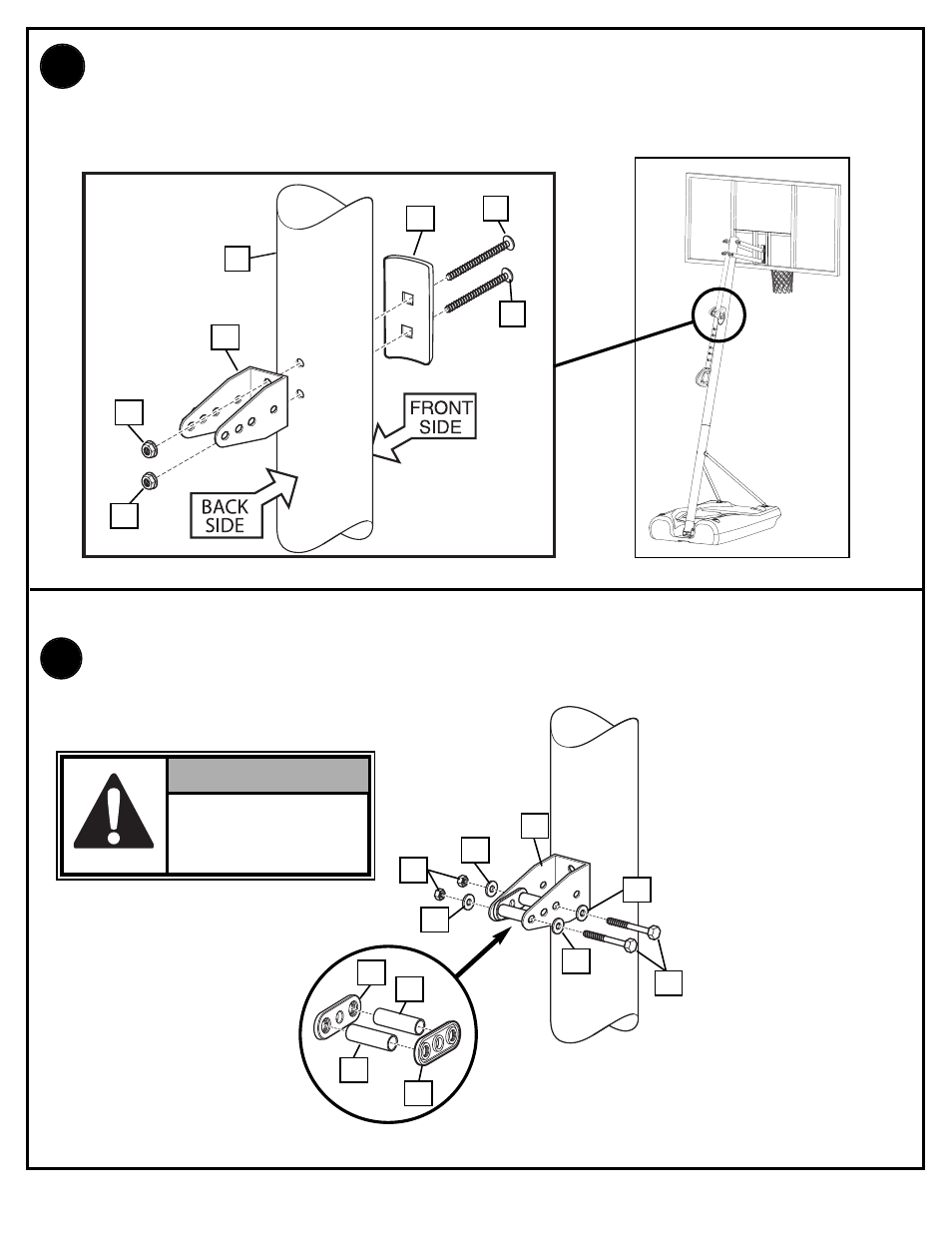

1 . Install pole mount bracket (28) and reinforcement bracket (18) with carriage bolts (22) as
shown. Tighten flange nuts (11) completely.
1
28
11
11
18
22
22
2. Attach spacers (24, 43) to pole mount bracket (28) with bolts (29), washers (50), and lock
nuts (31) as shown.
28
50
50
31
29
50
50
43
24
24
43
IMPORTANT!
Tighten just until
washers (50) stop
moving.
