Stamina Products CT2.0 - Manual (Page 5)

Part No. and Description Qty
65 Bolt, Button Head (M8 x 1.25 x 15mm) 4
66 Bolt, Button Head (M8 x 1.25 x 20mm) 2
67 Bolt, Button Head (M8 x 1.25 x 48mm) 2
73 Bolt, Hex Head (M6 x 1 x 38mm) 4
80 Nylock Nut (M8 x 1.25) 2
90 Lock Washer (M6) 4
91 Lock Washer (M8) 10
86 Acorn Nut (M6 x 1) 4
87 Acorn Nut (M8 x 1.25) 4
88 Arc Washer (M6) 4
89 Arc Washer (M8) 8
48 Large Washer (M8 x 32mm x 2mm thick) 2
53 Plastic Washer (M8 x ø18 x 2mm thick) 4
57 Large Washer (M16 x 0.5mm thick) 2
64 Carriage Bolt (M8 x 1.25 x 65mm) 4
5
76 Screw, Round Head (M5 x 15mm) 6

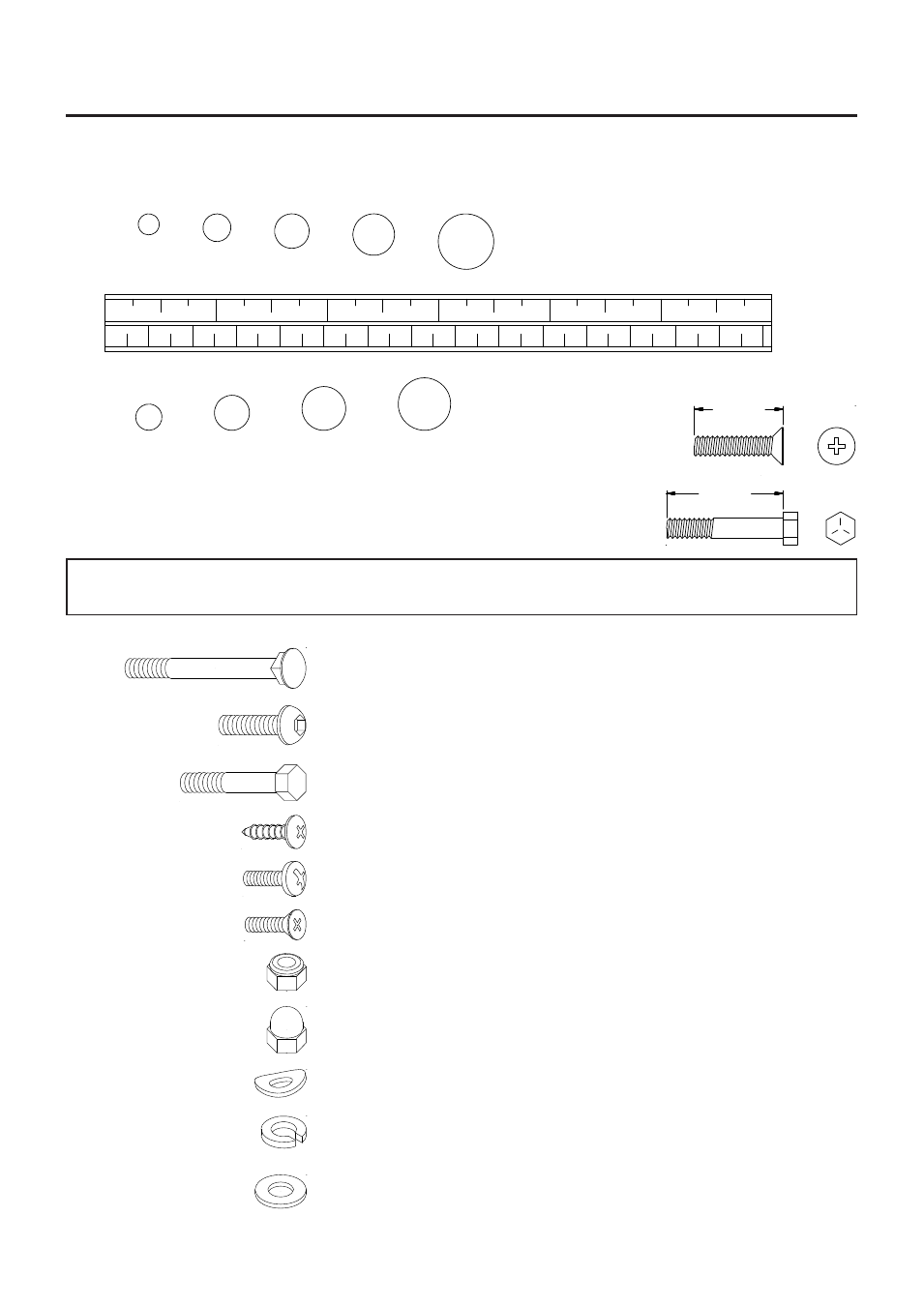

HARDWARE IDENTIFICATION CHART
This chart is provided to help identify the hardware used in the assembly process. Place the washers, the
end of the bolts, or screws on the circles to check for the correct diameter. Use the small scale to check the
length of the bolts and screws.
NOTICE: The length of all bolts and screws except those with flat heads is
measured from below the head to the end of the bolt or screw.
Flat head bolts and screws are measured from the top of the
head to the end of the bolt or screw.
mm.
in.
INCHES
MILLIMETERS
1 1/2 0 2 1/2 3 1/2 4 1/2 5 1/2 6 1/2
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
6 8 10 12
3/16" 5/16" 1/2" 3/8" 1/4"
length
length
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
77 Screw, Round Head (M5 x 0.8 x 15mm) 4
78 Screw, Flat Head (M5 x 0.8 x 12mm) 1
