7
ENGL
ISH
CONNECTIONS

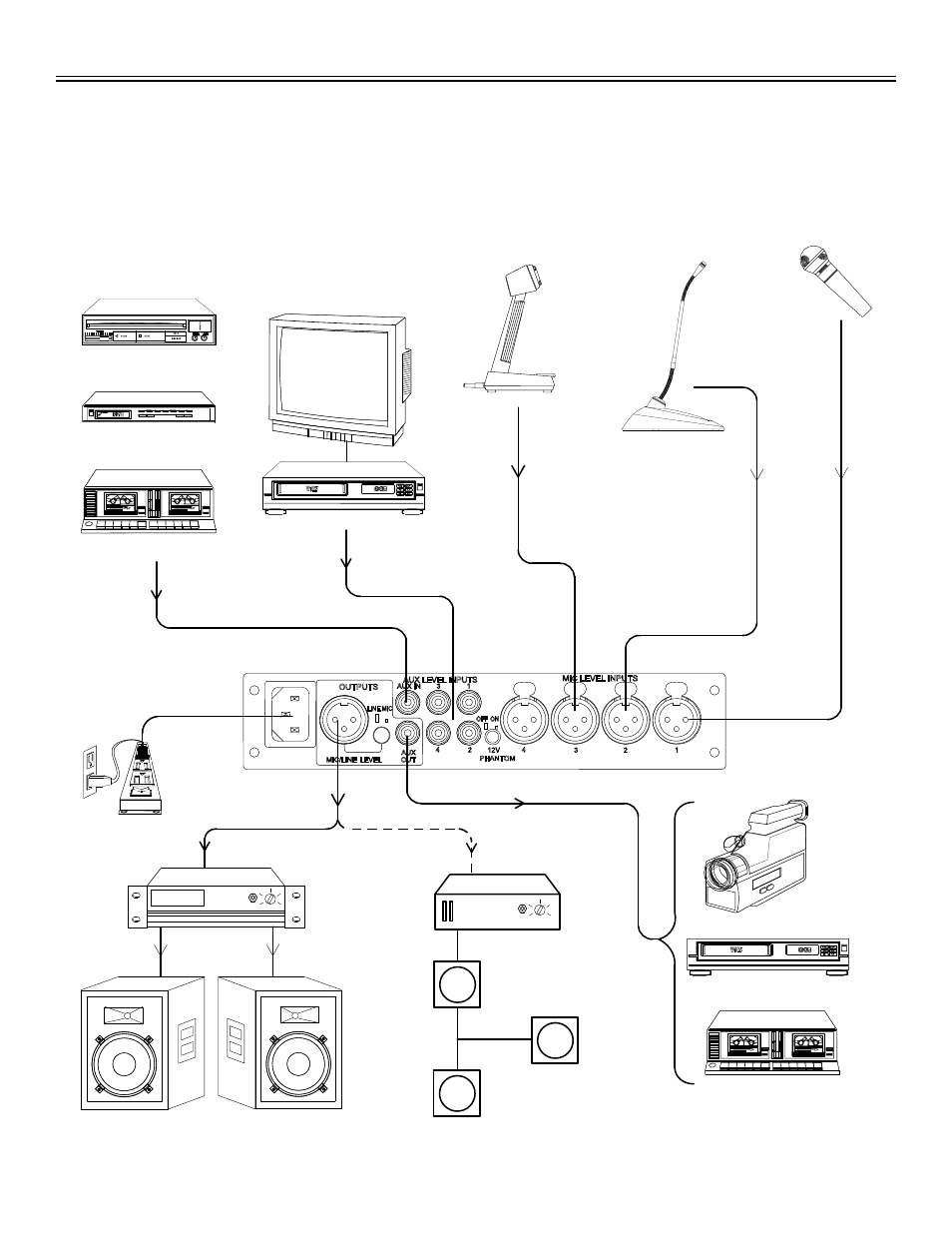

The following diagram illustrates a few of the many types of connections
possible with the SCM268. Note that nothing is connected to the channel
4 microphone input (MIC LEVEL INPUT 4). This is because channel 4 is
being used for the consumer-level equipment connected to the channel 4
auxiliary level input (AUX LEVEL INPUT 4). Connecting both auxiliary lev-
el and microphone level inputs to a single channel is not recommended
because the SCM268 would not be able to independently mix the two
sources.
В
В
В
В
В
В
AUX IN
CONSUMER-LEVEL
EQUIPMENT
CHANNEL 4
CONSUMER-LEVEL
EQUIPMENT
CHANNEL 3
DYNAMIC
MICROPHONE
CHANNEL 2
CONDENSER
MICROPHONE
CHANNEL 1
DYNAMIC
MICROPHONE
CD PLAYER
OR
AM/FM RECEIVER
OR
TAPE DECK
POWER SUPPLY
AMPLIFIER
70 V P.A.
LOUDSPEAKERS
AUX OUT
OR
OR
LINE OUT
VCR
