Dimensions – State Models: 305 User Manual
Page 36
36
305, 505, 705 Indoor Manual
Dimensions
* This is the minimum dimension from the wall. The wall bracket is adjustable to allow an additional 1.57 inches
(40 mm).
A
B
C
D
K
I
J
G
F
H
E

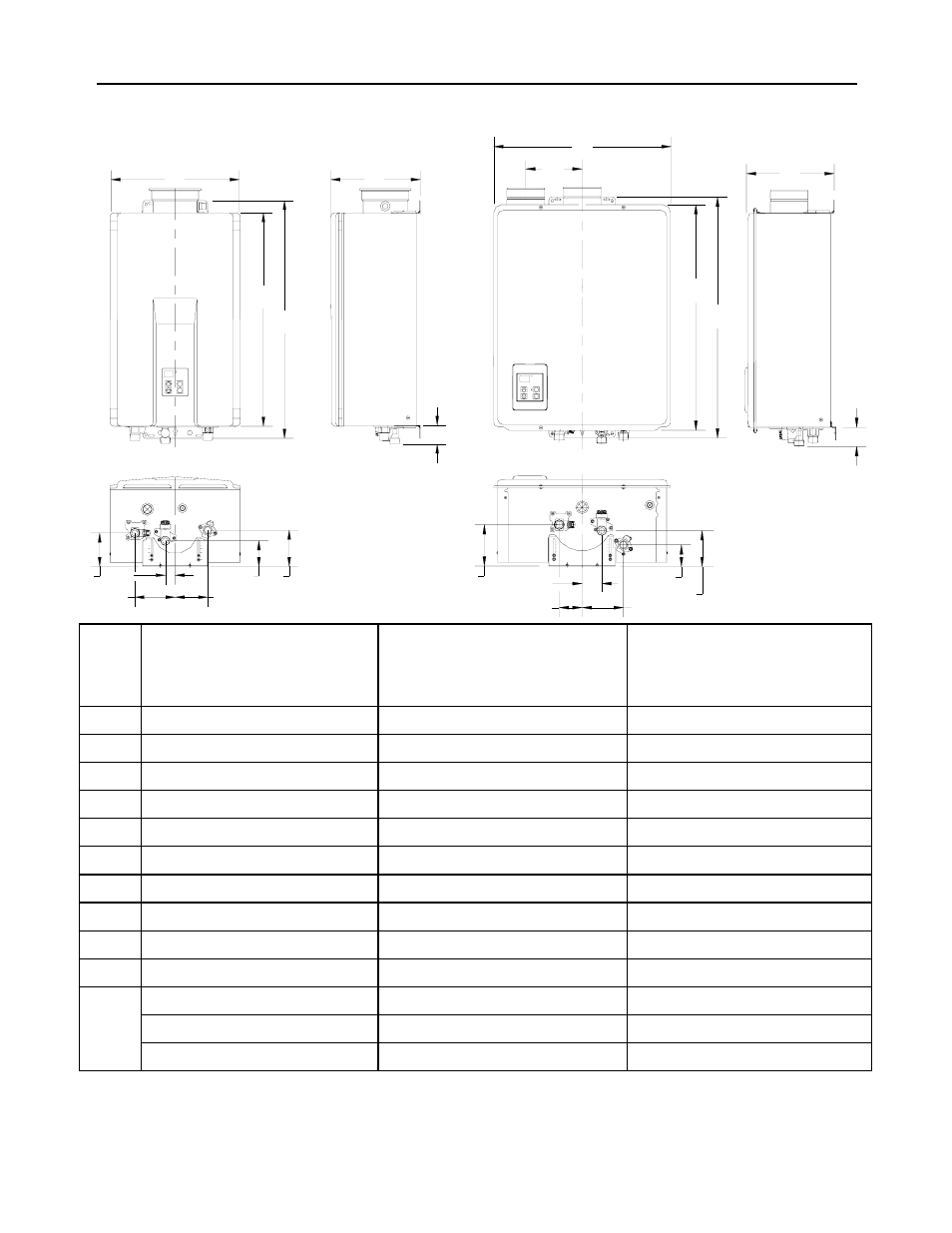

305 and 505 Models
705 Model
DIM DESCRIPTION
305
505
in (mm)
705
in (mm)
A
Width
14 (355.6)
18.5 (470)
B
Depth *
9.6 (244.5)
9.1 (230.5)
C
Height - Unit
22.9 (582)
23.6 (600)
D
Height - with brackets
25.5 (648.2)
25.2 (639.8)
E
Hot Water Outlet - from wall *
3.6 (91)
4.3 (110)
F
Hot Water Outlet - from center
4.3 (110)
2.4 (61)
G
Cold Water Inlet - from wall *
2.8 (70)
3.7 (94)
H
Cold Water Inlet - from center
1.1 (27)
2.0 (52)
I
Gas Connection - from wall *
4.3 (109)
2.2 (56.2)
J
Gas Connection - from center
3.5 (89)
4.3 (110)
From base to gas connection
1.6 (40)
1.6 (40)
From base to cold connection
2.0 (50)
2.0 (50)
From base to hot connection
1.6 (41)
1.6 (41)
K
10.8600
L
A
C
D
E
G
I
H
F
J
B
K
