DISPOSAL OF BATTERY

Location of a nickel-metal-hydride battery

This unit is provided a nickel-metal-hydride battery for the power failure warning device. The battery is

located in the electrical box inside the cover on the lower left side. (Fig. 1)

The high voltage components are enclosed in the electrical box. The cover should be removed

by a qualified engineer or a service personnel only to prevent the electric shock.

Disposal of nickel-metal-hydride battery

1. Turn off the power switch and disconnect the power supply plug.

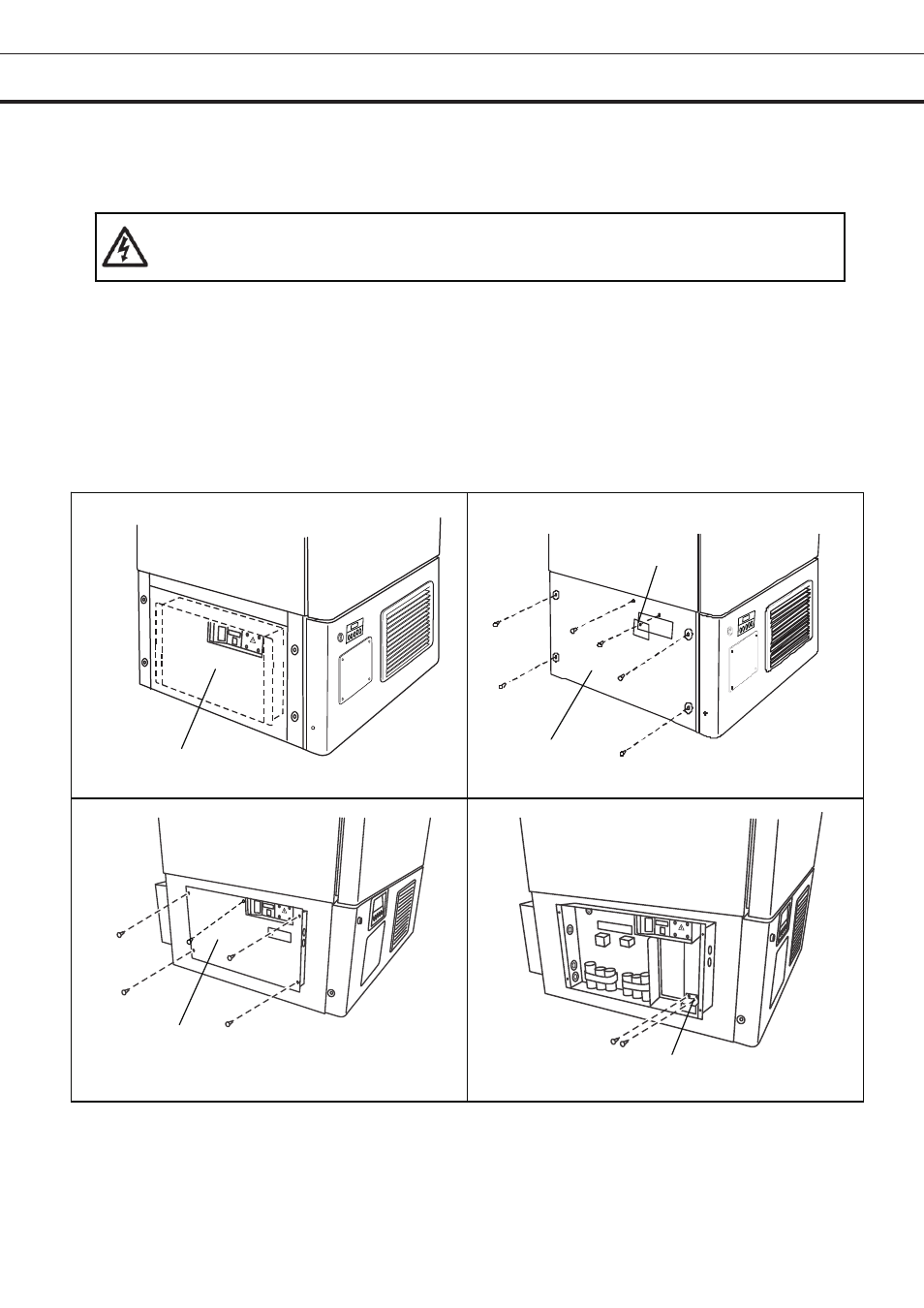

2. As shown in the Fig. 2, remove 6 screws fixing the side cover with a screw driver and remove the side

cover.

3. Remove 5 screws fixing the electrical box cover with a screw driver. (Fig. 3)

4. Disconnect the battery connector and remove 2 screws fixing the battery mounting plate. (Fig. 4)

5. Take out the battery.

6. Follow the procedure for recycling or proper disposal.

Fig. 4

Battery
mounting plate

Fig. 2

Switch cover

Side cover

Electrical box cover

Fig. 3

Fig. 1

Electrical box
