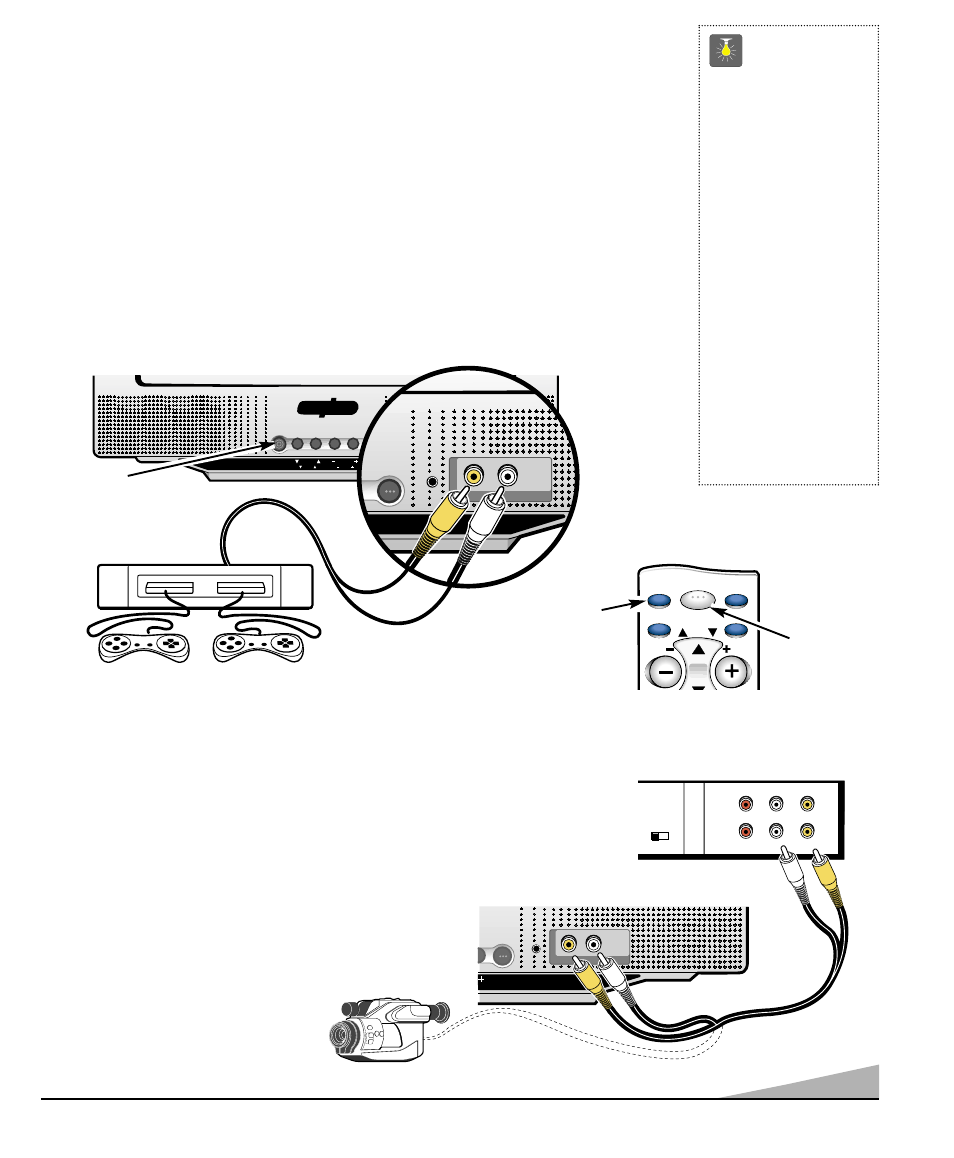

USING THE FRONT AUDIO/VIDEO INPUT JACKS
CONNECTING A VIDEO GAME
Switch off TV and video game before connecting cables.
1. Connect game Audio Output to the TV Audio Input. Then connect game Video Out to the
TV Video In ❶ .
2. Press POWER key ❷ to turn on the TV . Turn on external equipment also.
3. For DS13310—Press the GAME MODE key ❸ on the front panel or GAME (INPUT)
key ❹ on the remote control to select program source: TV signal or signal from the equip-
ment you have connected to the A/V jacks. The TV will automatically change the screen
and sound to factory preset game settings.
For DS19310—Press the INPUT key ❹ on the remote control to select program source:
TV signal or signal from the equipment you have connected to the A/V jacks.
AS
GAME MODE GAME MODE CHANNEL CHANNEL VOLUME VOLUME
MENU MENU MENU MENU
POWER POWER
POWER POWER VIDEO IN VIDEO IN AUDIO IN AUDIO IN
❶
VIDEO GAME
GAME MODE
KEY (DS13310)
GAME
(INPUT)
MENU RECALL
RESET
CH
POWER
VOL VOL
❹
❷
❸
REMOTE CONTROL
TV
A/V INPUT
JACKS
CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT
Switch off TV and external equipment before connecting cables.
1. Connect VCR Audio Out and Video Out ❶ to the TV Audio Input and
Video Input ❷ .
2. Press POWER to turn on the TV . Turn on external equipment also.
3. Press the GAME (INPUT) or INPUT key to select program source: TV
signal or signal from the equipment you have connected to the A/V jacks.
See page 6 for remote control operation
.
POWER POWER VIDEO IN VIDEO IN AUDIO IN AUDIO IN
CH3 CH4
IN
OUT
A/V JACKS
RF
CHANNEL
R- -L AUDIO VIDEO
R- -L AUDIO VIDEO
❶
BACK VIEW OF VCR
❷
CAMCORDER
TV A/V INPUT JACKS
QuickTips
■ Make sure all cable
connectors are fully
seated on jacks.
■ A solid Blue screen
with the word Game
or Video displayed
means that the
Game / Video mode is
selected, but no
signal is being
detected at the
Video jack.
