UHF/VHF/CATV
75 Ω
AS
VIDEO IN VIDEO IN
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press
the MENU key
GAME MODE GAME MODE CHANNEL CHANNEL VOLUME VOLUME
MENU MENU MENU MENU
POWER POWER VIDEO IN VIDEO IN AUDIO IN AUDIO IN
AS
GAME MODE GAME MODE CHANNEL CHANNEL VOLUME VOLUME
MENU MENU MENU MENU
POWER POWER
GAME (INPUT)
MENU
MUTE
SLEEP V-GUI DE
DISPL AY
CAPTI ON
REC ALL
RES ET
CH
PO WER
VOL
VOL
1 2
3 4
5
6 7
8
9 0
Please wait
TV is searching
for your channels
MENU
❷
❸
❹

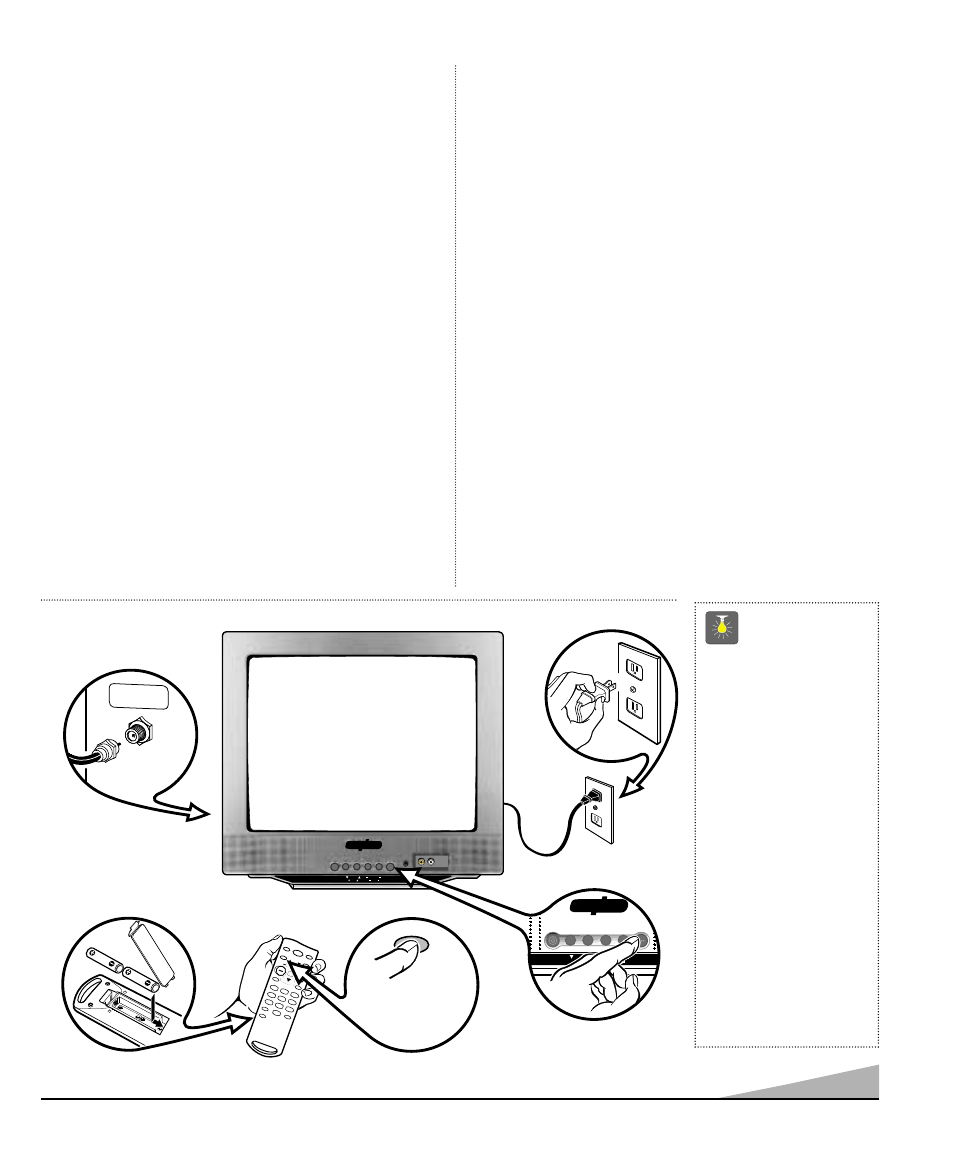

BASIC SETUP
(See Hookup,
on page 4.)
❺
➊
QuickTips
■ Do not position the
TV in a confined area.
Allow normal air
circulation for
electronic parts.
■
Front panel keys
work like the remote
control keys.
■ The TV will automati-
cally select the
correct Antenna mode
for the type of signal
you connect.
Need help?
Visit our website at
www.sanyoctv.com
or Call 1-800-877-5032
(Install batteries, see page 5.)
(Switch on Power.)
SPECIFICATIONS
PICTURE TUBE SIZE
(Measured Diagonally) . . . . . . . . . 13-inch screen
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-inch screen
PICTURE RESOLUTION . . . . . . . . . . 260 Lines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Video Input: 260 Lines
ANTENNA INPUT . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . . 120VAC 60Hz
POWER DS13310 . . . . . . . . . . . . 53 watts
DS19310 . . . . . . . . . . . . 68 watts
HORIZONTAL DIM. (Width)
DS13310 . . . . . . . . . . . . 14.6 in. (372mm)
DS19310 . . . . . . . . . . . . 19.2 in. (488mm)
VERTICAL DIM. (Height)
DS13310 . . . . . . . . . . . . 13.1 in. (332mm)
DS19310 . . . . . . . . . . . . 17.8 in. (452mm)
DEPTH DIM. (Thickness)
DS13310 . . . . . . . . . . . . 14.7 in. (374mm)
DS19310 . . . . . . . . . . . . 18.4 in. (467mm)
WEIGHT (Approx.)
DS13310 . . . . . . . . . . . . 19.4 lbs. (8.8 Kg.)
DS19310 . . . . . . . . . . . . 36.3 lbs. ( 16.5 Kg.)
SOUND DS13310 . . . . . . . . . . . . 1 Speaker, Size: 5x9 cm
DS19310 . . . . . . . . . . . . 1 Speaker, Size: 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . . Built-in with 1W
FRONT A/V INPUT JACKS . . . . . . . . Video/Audio Input
FEATURES
◆ Trilingual On-Screen Menu
◆ Automatic Channel Search
◆ Auto Shut Off
◆ Closed-Captioning/QuikCap
◆ Auto Flesh Tones
◆ Digital picture controls with
on-screen display
◆ Automatic picture
adjustments
◆ Front Audio/Video Input
Jacks
◆ Game Mode (DS13310)
◆ V-Guide (Parental Control)
◆ Sleep Timer (3 hours)
◆ TV Reset
Automatic Fine Tuning
VHF and Cable Channels
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
Remote Control
Large Glow-in-the-Dark
basic operating keys
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Game (Input) (DS13310)
Input (DS19310)
CAUTION: FCC Regulations state that improper modifica-
tions or unauthorized changes to this unit may
void the user’s authority to operate the unit.
