Page 26
511.5
(20.14")
443.5
(17.46")
10U
33.0
(1.29")
80.0
(3.15")
60.0
(2.36")
40.0
(1.57")
479.0 (18.86")
440.0 (17.32")
440.0 (17.32")
483.0 (19")
inc. conns
inc.
knobs

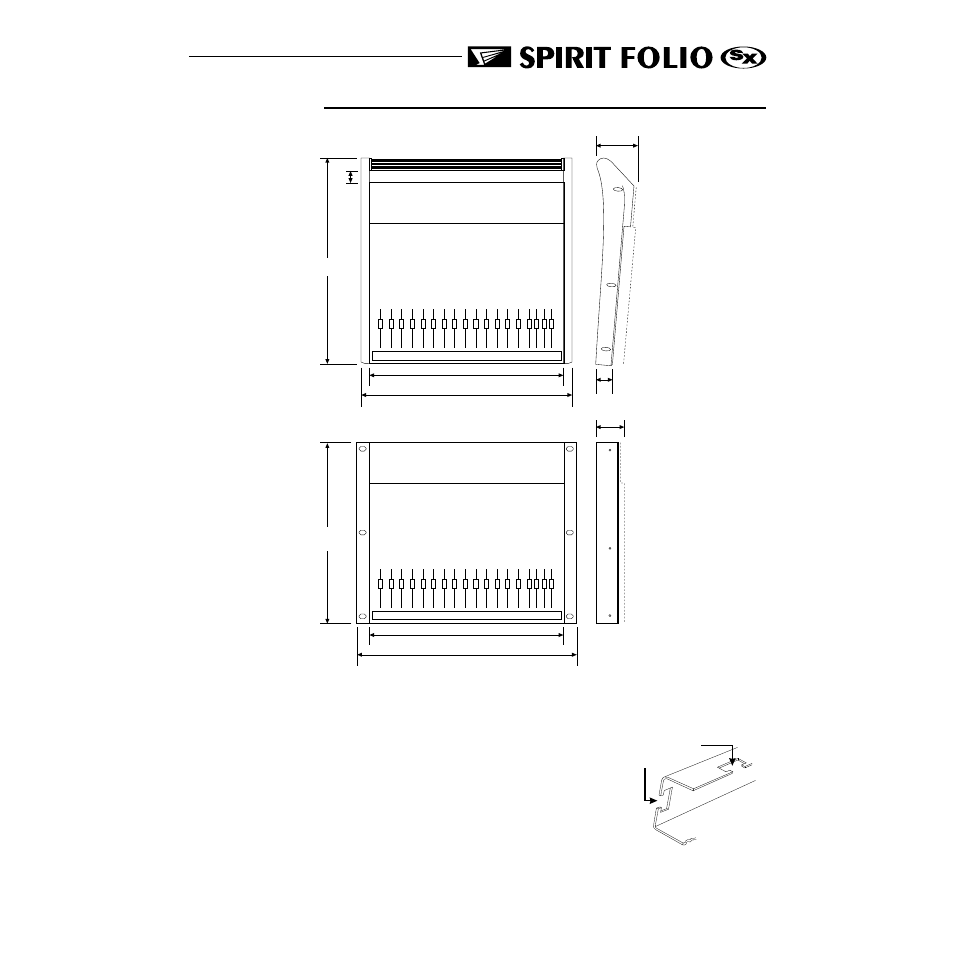

DIMENSIONS
All dimensions are in millimetres (inches in brackets).
Rack Mount Option
FITTING THE Rack MounT OPTION
The FOLIO SX may be rack mounted using the optional rack-mounting kit which requires only a posidriv screwdriver
and pliers for installation. The procedure is as follows:
o Remove the moulded side cheeks by releasing 3 screws each side.
o Remove the base panel by releasing 10 screws, noting the small cutout at the front edge.
o Carefully release the power connector by sqeezing the moulded side clips with pliers
(note that you do not have to disconnect the wiring) and reposition it in the cutout on
the bottom edge of the panel (see illustration).
o Replace the base panel with the cutout at the rear of the desk, positioned over the
power connector.
o Fit the rack-mount side brackets with the mounting flanges to the front of the desk.
Normal
Rack Mount
Power Supply Connector Location
Rear of fascia
