Application 1 - LIVE SOUND REINFORCEMENT

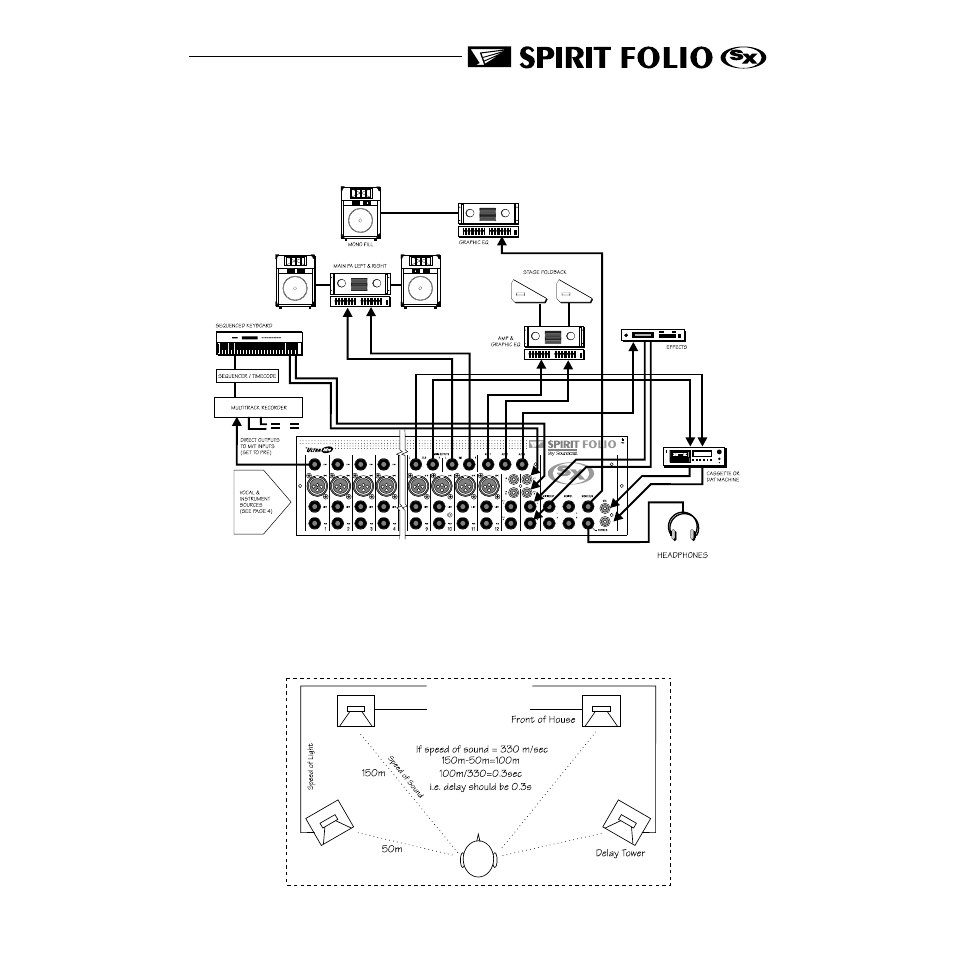

This drawing shows a typical configuration for sound reinforcement with the main PA fed from Mix L & R, plus an addi-
tional centre fill fed from the Mono output. The Aux sends are used for foldback and effects, and Sub L & R are used to
feed a recorder. In this case all channels would be routed to SUB, and SUB TO MIX pressed to routed all sources to SUB
and MIX.
Using Delay IN REINFORCEMENT SYSTEMS
The drawing below illustrates how to calculate delay settings for fill speakers in multiple speaker installations.
