Physical specifications, Physical dimensions, Figure 1: physical dimensions – Silicon Image SiliconDrive SSD-H16G(I)-3500 User Manual
Page 10: Table 1: physical dimensions
P
HYSICAL
S
PECIFICATIONS
SSD-H
XXX
(I)-3500 D
ATA
S
HEET
S
ILICON
S
YSTEMS
P
ROPRIETARY
This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
All unauthorized use and/or reproduction is prohibited.
3500H-03DSR
P
AGE
1
F
EBRUARY
2, 2009
P
HYSICAL
S
PECIFICATIONS
The SiliconDrive 1.8" Drive products are offered in an industry-standard 1.8"
Drive form factor. See
Drive capacities.
P
HYSICAL
D
IMENSIONS
This section provides diagrams that describe the physical dimensions for the
1.8" Drive.

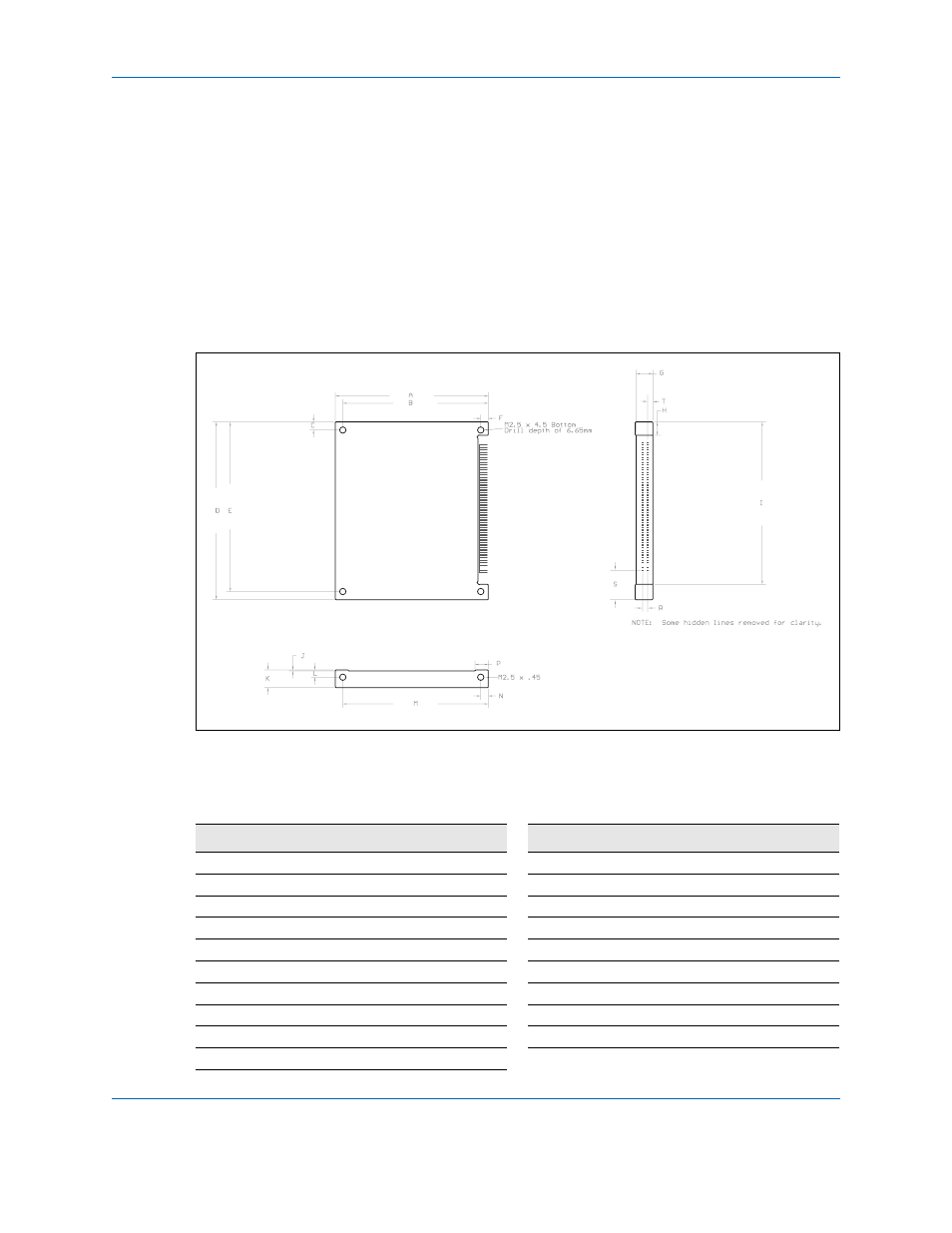

Figure 1: Physical Dimensions
Table 1: Physical Dimensions
Dimension Millimeters Tolerance (mm)
Dimension Millimeters Tolerance (mm)
A
60.00
±0.25
K
6.90
±0.125
B
57.05
±0.25
L
2.82
±.10
C
3.20
±0.10
M
57.05
±0.25
D
69.85
±0.25
N
2.95
±0.10
E
66.65
±0.25
P
5.19
±0.125
F
2.95
±0.10
Q
11.57
±0.125
G
6.55
±0.125
R
2.00
±0.10
H
5.25
±0.125
S
11.71
±0.125
I
63.85
±0.25
T
3.00
±0.10
J
.35
±0.0125
