IT Combustible Gas Sensor Module
Sierra Monitor Corporation 1991 Tarob Ct. Milpitas, CA 95035 (408) 262-6611 (800) 727-4377 Fax: (408) 262-9042
Web site: www.sierramonitor.com E-Mail: [email protected]
Specifications:
Sensor type:
Infrared, Dual Wavelength
Performance
Range:
Repeatability: +/-1% LEL
Response Time: T60<10sec
Calibration freq: 180 days
Accuracy: +/- 1% for 0-50% LEL range
+/- 2% for 51-100% LEL range
Output:
Display:
Fixed and Scrolling LED
Signal Output: Sentry digital bus
Analog 4-20 mA
3-wire Non-Isolated
4-wire Isolated
Serial RS-485 Modbus RTU
Relay : Optional
Options:
Relays:
5 amp Alarm, Warning (0.25 amp Trouble)
5A@ 250 VAC, 5A@ 30VDC (Alarm, Warning)
Board includes auxiliary connection for Sentry
multiplexing
HART: Termination board includes HART, Modbus RS-
485, 4-20mA, Digital Input, 2A Relay output, No
Sentry Bus
Power:
Power consumption:
3 watts max.
Input voltage: 24 VDC nominal: 10-30VDC
RFI/EMI Protection: EN50081-2, EN50082-2
Operating Range:
Ambient Temp Range:
-40 o to 176 o F (-40 o to 80 o C)
Relative Humidity: 0-99% Non-Condensing
Construction:
Dimensions:
(H x W x D)
(A1 & A2) 6.9 x 5.7 x 3.9 in. (17.5 x 14.5 x 9.9 cm)
(S1 & S2) 7.5 x 5.0 x 4.4 in. (19 x 13 x 11 cm)
Weight:
(A1 & A2) 3.4 lb. (1.5 Kg)
(S1 & S2) 7.2 lb. (3.3 Kg)
Housing: Epoxy coated Aluminum or 316 Stainless Steel
Hazardous Area
Classification: Explosion proof, Class I, Div. 1,
Groups B, C, D Class I, Zone 1,
Group IIC, IP66, IP65, NEMA 4X
II2 GD, Ex d IIC T6 = -40
o C to 85 o C
Warranty: 2 years
Approvals:
FM Approval 6320 Combustible Gas Detector Performance
FM Approval 3600 Class I Div. 1, Groups B, C, D
SIL-2 Certified Certified by Lloyd's Register (IEC 61508)
CSA For enclosure in hazardous locations
ABS Certificate of Compliance
CQST
Specifications subject to change without notice

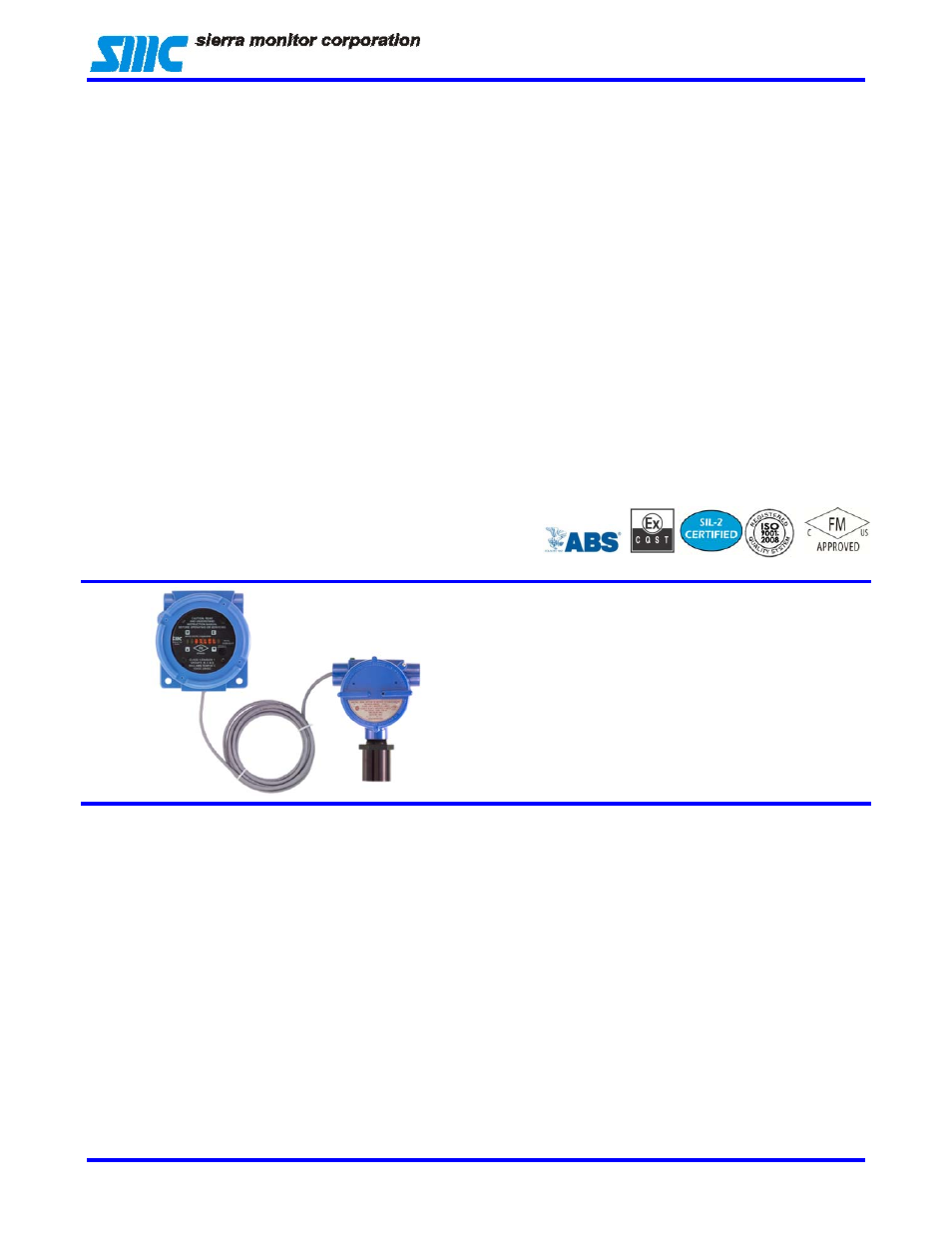

Remote Sensor Option
It is often necessary to sample the combustible gas at some
distance from the gas sensor module. The IT Series enables
the user to mount the sensor remotely from the transmitter
without the need for expensive and high-maintenance
sample pumps. The Remote Sensor Option provides a
separate gas sensor that can be mounted up to 50 feet from
the transmitter and connected via a cable included.
Ordering Information:
Model Enclosure
Relay/Connection
Output
Gas Type
Sensor
Protection
Remote Option
5100-02-IT - XX - XX - XX - X - X
- A1 = AL ¾” NPT - 01 = No Relays (std) - 01 = Standard - 0 = Standard - 0 = None
- A2 = AL M20 x 1.5 - 02 = Relays Option - 1 = Conformal - 1 = Remote Sensor
- S1 = SS ¾” NPT - 05 = HART Option Sensor
- S2 = SS M20 x 1.5
Accessories:
5311-00
Rainshield
5311-02 Rainshield with calibration port
Calibration Accessories:
5358-01 Calibration Head, Standard
5360-00 Calibration Gas Delivery Fitting
Calibrators High Capacity:
1250-01 Gas Sensor Calibration Kit, Type A (CO, H
2
S)
1260-02 Combustible Gas 50% LEL Gas Cylinder Type A
1260-42 Hydrogen, 50% LEL, Gas Cylinder, Type A
1260-00 Zero Gas (Air), Gas Cylinder, Type A (if satisfactory zero ambient air not available)
Rev. 5/13
