1 Connecting the Control unit
Connect the system connector of the control unit to the SYSTEM CONTROL terminal on the bottom
of the subwoofer.
Insert the plug of the SYSTEM CONTROL cord, then secure the screws of the plug.
Note
• Before connecting the control unit, place the subwoofer on a stable work surface that is larger than the subwoofer.
• Be sure to place a soft cloth on the work surface to avoid damaging the surface of the subwoofer.

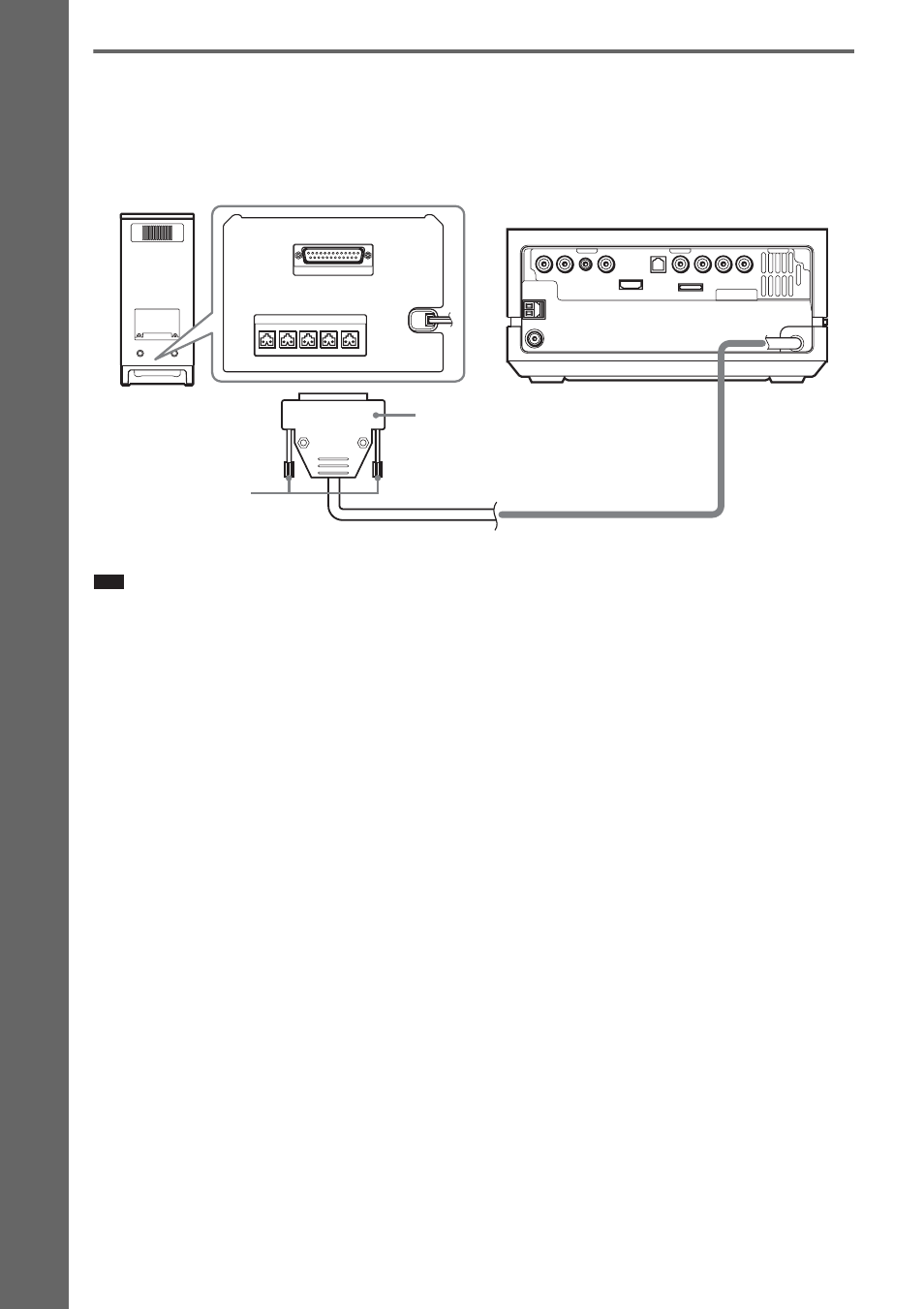

SYSTEM CONTROL ONLY FOR HCD-IS50
SPEAKER ONLY FOR SS-IS15
CENTER SUR L SUR R FRONT L FRONT R
DMPORT
Rear of the
subwoofer
SYSTEM CONTROL cord
Rear of the control unit
Bottom of the subwoofer
Screws
Plug
