Samsung HT-DM550 - Manual (Page 5)

PREP
ARA
TION
8 7

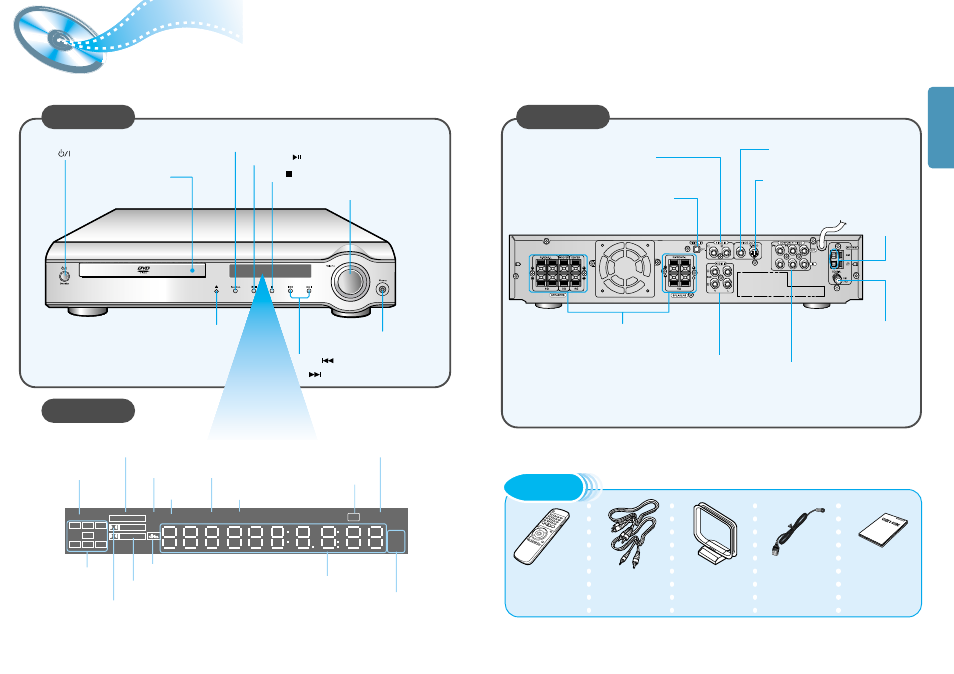

Description
Front Panel
Display
Remote Control
(AH59-01101F)
Audio Cable
(AH39-40001U)
Video Cable
(AH39-40001V)
User's Manual
(AH68-01142A)
FM Antenna
(AH42-0001A)
AM Antenna
(AH42-20001P)
Accessories
Volume control
Play/Pause ( ) button
Stop ( ) button
Power ( ) button
Headphone Jack
Open/Close button
Disc Tray
Function button
Rear Panel
5.1 Channel Speaker
Output Terminals
FM Antenna
Connector
Tuning Down & Skip ( ) buttons
Tuning Up & Skip ( ) buttons
External Digital Component Input
Connectors
Use these for connections to external equipment
capable of digital output.
External Video Component
Input Connector
External Audio Component
Input Connector
Video Output Connector
Connect the TV's video input jacks (VIDEO
IN) to the VIDEO OUT connector.
S-Video Output Connector
If the TV is equipped with an S-Video input
connector (S-VIDEO IN), connect it to the
player's S-Video output jack.
AM Antenna
Connector
COMPONENT VIDEO
OUTPUT/INPUT jacks
Connect a TV with component video
input jacks to these jacks.
TITLE
indicator
DTS Disc indicator
PRO LOGIC indicator
PRO LOGIC
LINEAR PCM P . SCAN DSP TITLE PBC PRGM ST TUNED
kH Z
MH Z
L C R
LS
LFE
S RS
D I G I T A L
STEREO indicator
DSP
indicator
PBC
indicator
RADIO
FREQUENCY
indicator
PROGRAM
indicator
System Status Display
SPEAKER
indicator DOLBY DIGITAL indicator
TUNER indicator
LINEAR PCM
indicator
P.SCAN
indicator
