Connecting VHF and UHF Antennas
If your antenna has a set of leads that look like this, see “Antennas
with 300-ohm Flat Twin Leads,” below.
If your antenna has one lead that looks like this, see “Antennas with
75-ohm Round Leads,” on next page.
If you have two antennas, see “Separate VHF and UHF Antennas,” on
next page.
10
I N S TA L L AT I O N
C h a p t e r Tw o
1

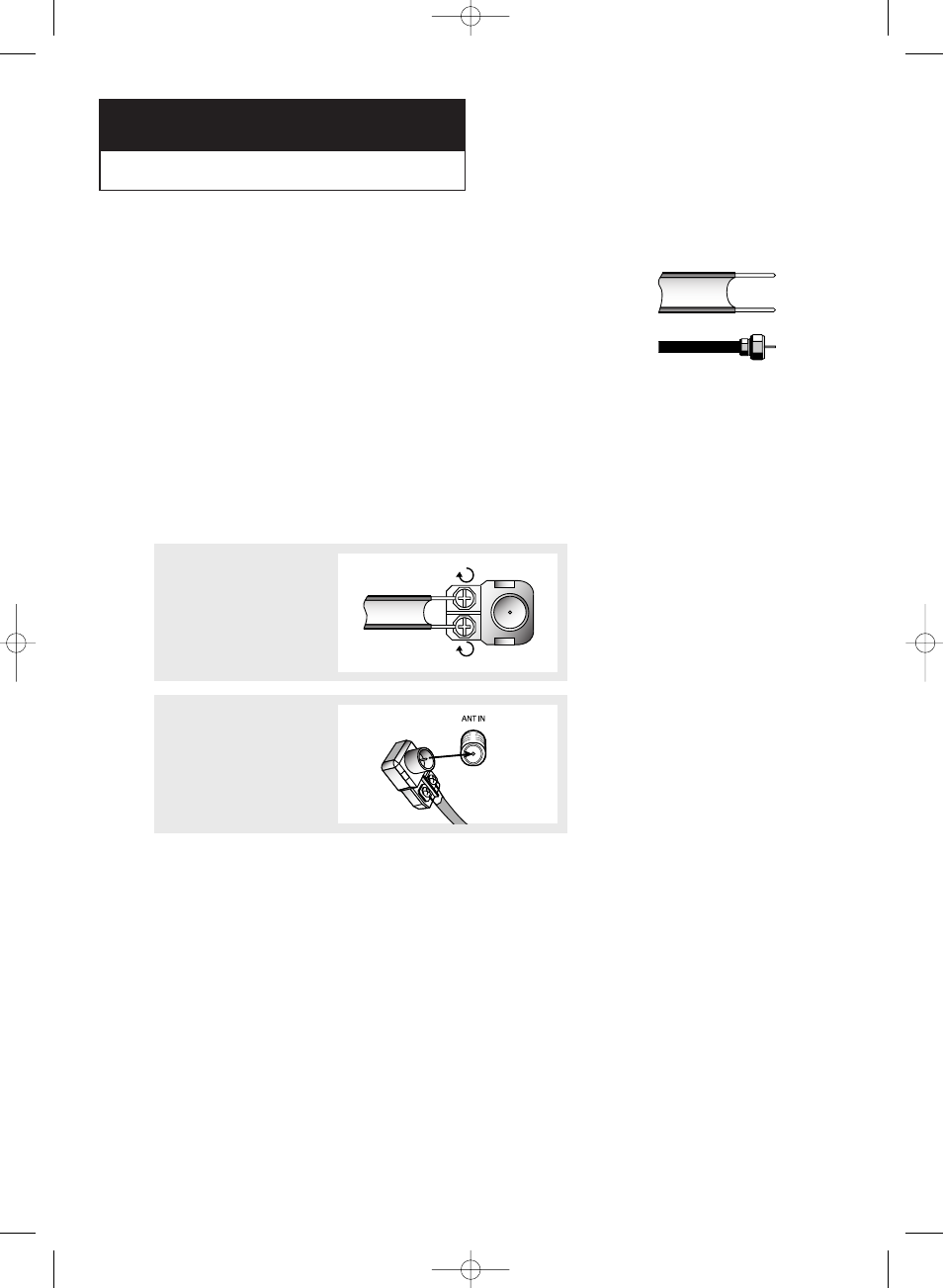

Place the wires from the twin
leads under the screws on the
300-75 ohm adapter (not
supplied). Use a screwdriver
to tighten the screws.
2
Plug the adapter into the “ANT
IN” terminal on the rear panel.
Antennas with 300-ohm Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300-ohm
twin flat leads, follow the directions below.
