SETTINGS

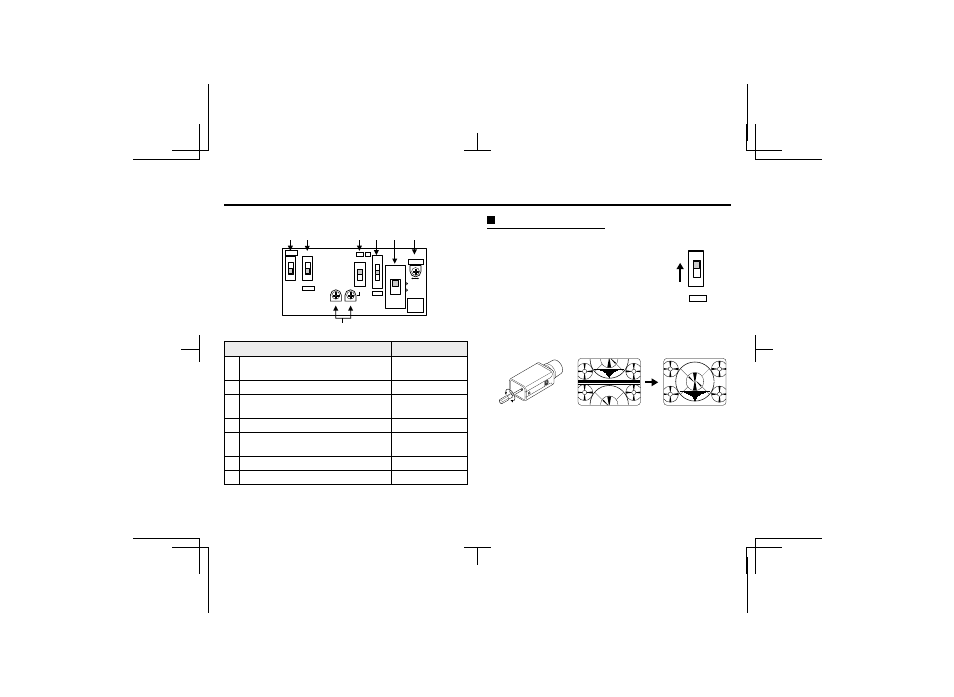

Camera setup section
Control name Position
a Color and Black/White level switch
(C-BW) L
b SYNC switch (SYNC) INT
c Red and Blue color adjustment volume
(R, B) about centre
d White balance switch (WB) A
e Electronic iris (EI)/Backlight
compensation (BLC) switch OFF
f Auto-iris lens switch (A.I. LENS) DC
g Lens iris level volume (LEVEL) about centre
Line phase adjustment
Set the SYNC switch to the L-L position.
When using a camera switcher to connect 2
cameras or more to one monitor, there may be
a vertical roll of the images when switched. In
such a case, set as described below.
Switch the display on the monitor from camera
1 to camera 2.
Adjust the LINE PHASE volume on camera 2 until the vertical roll of
the image stops.
If more than two cameras are used, please repeat this procedure for
all the cameras.
CAUTION:
If the vertical roll cannot be corrected by setting the LINE PHASE
volume on camera 2, try setting the LINE PHASE volume on camera
1. If it still cannot be corrected, please check that the polarity of the
power cords of all connected devices is correct.
b
c
d e f g a
LEVEL
DC
VIDEO
A. I.
LENS
L H
VR301
ON
OFF
ON
WB
A
M
BLC
EI
VR302
B R
VR303
C-BW
L
H
L-L
SYNC
INT
L-L
SYNC
INT
L53U4/US GB 1999, 10, 14
English
11
