Chapter 2: Installation
2-5
1. Unplug the power cord from the
power supply.
2. Using a screwdriver, loosen and
remove the heatsink screws from
the motherboard in the sequence
as shown in the picture on the
right.
3. Hold the heatsink as shown and
gently loosen it from the CPU by
moving it from side to side. (Do
not use excessive force)
4. Once it is loosened, remove the
heatsink from the CPU socket.
5. To reinstall the CPU and the
heatsink, clean the surface of
the CPU and the heatsink to
remove the old thermal grease.
Reapply the proper amount of
thermal grease on the surface
before reinstalling them on the
motherboard.

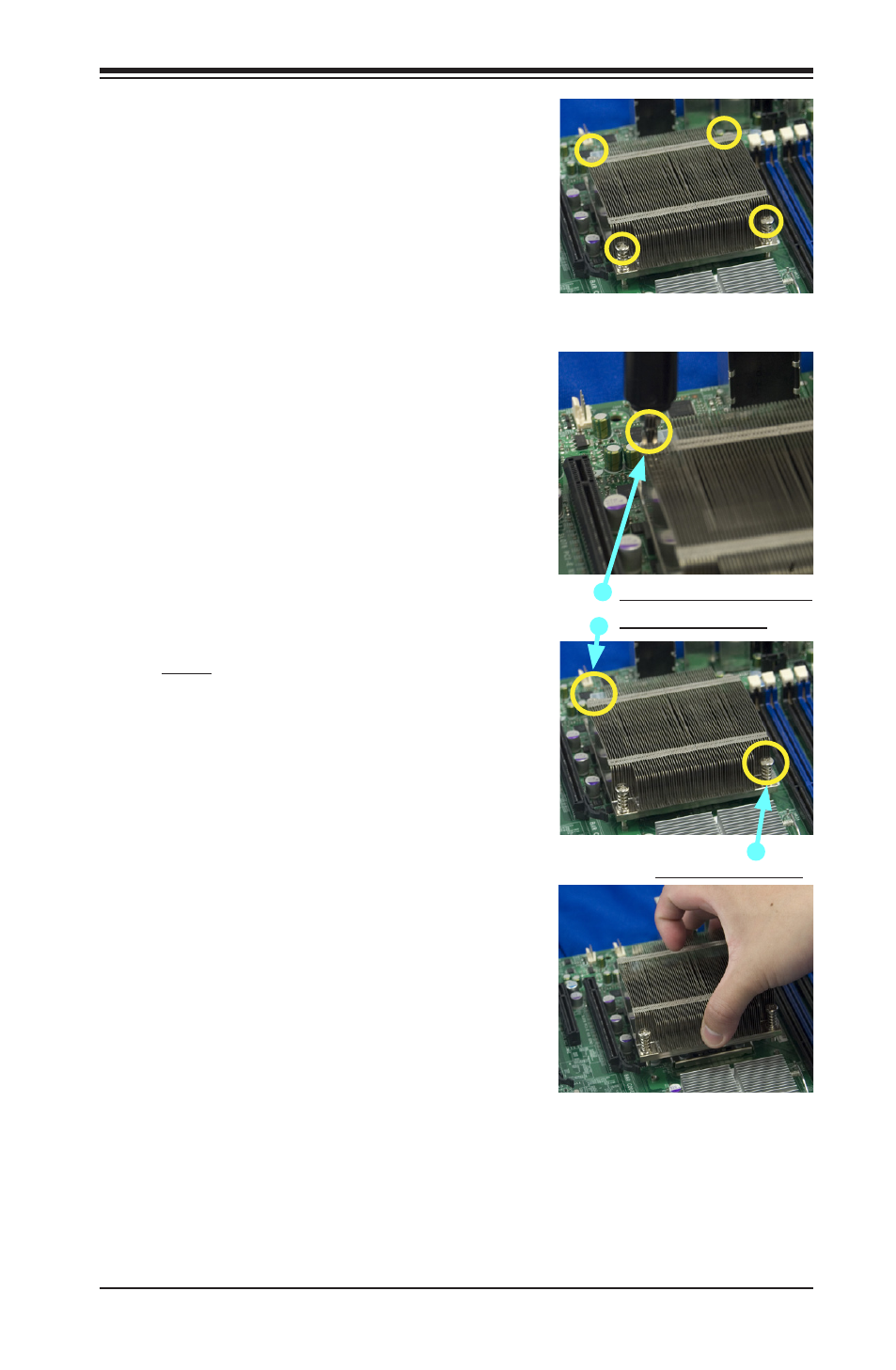

Using a screwdriver to
Remove Screw#1
Remove Screw#2
Passive Heatsink Removal
4. Finish the installation by fully
tightening all four screws. Do not
over-tighten to avoid possible
damage to the CPU.
