5

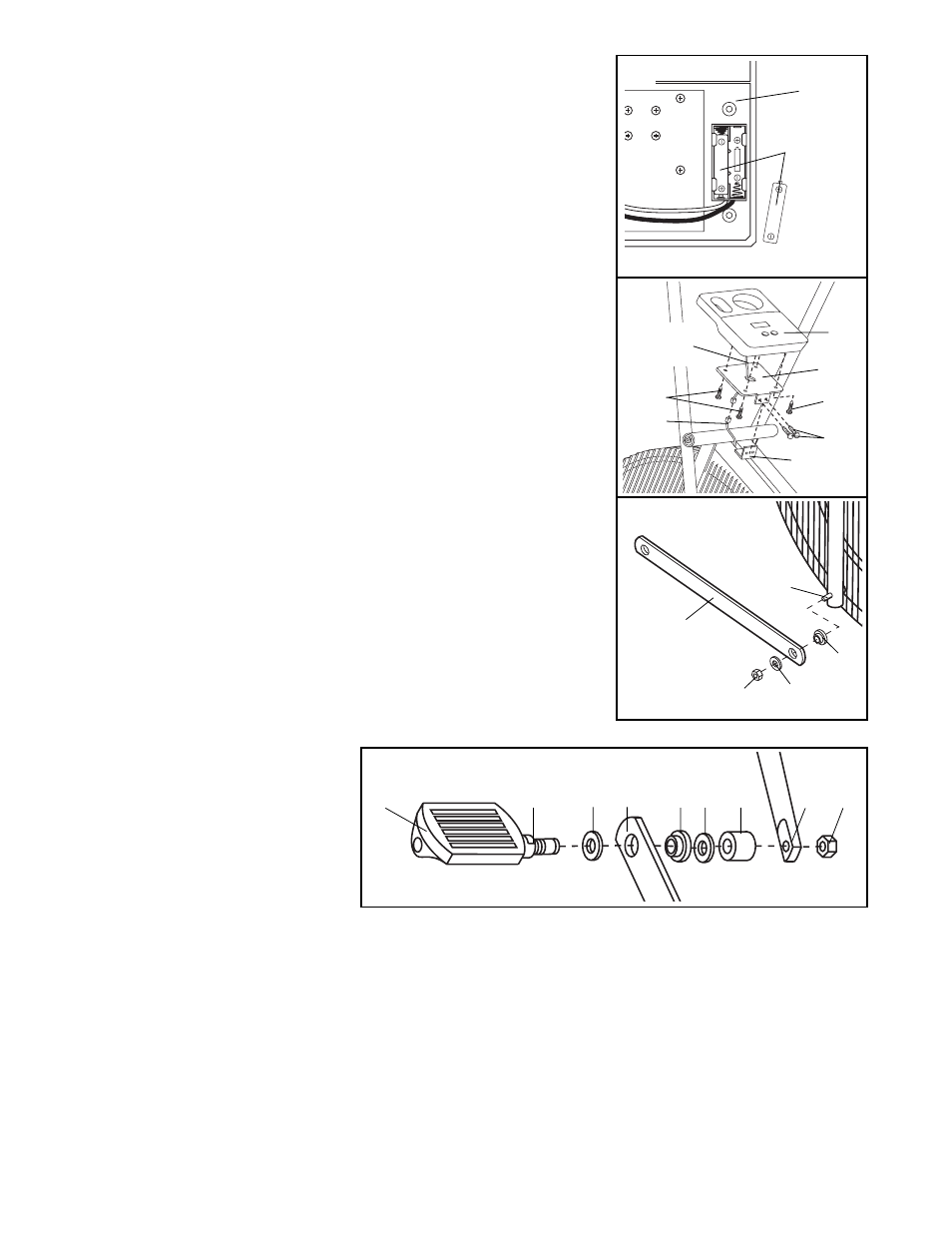

5. The Electronic Monitor (19) requires two ÒAAÓ batteries (not
included). Alkaline batteries are recommended. Locate the battery
compartment on the back of the Monitor. Insert two batteries into
the Monitor. Make sure that the negative ends of the batteries
(marked ÒÐÓ) are touching the springs in the Monitor. Close
the battery cover.
6. Thread the wire on the Electronic Monitor (19) through the hole in the
middle of the Monitor Bracket (61). Attach the Electronic Monitor (19)
to the Monitor Bracket with four Monitor Screws (59).
Connect the Sensor Wire (47) to the wire on the Electronic Monitor
(19). Attach the Monitor Bracket (61) to the Frame (46) using two M4
x 12.5mm Tek Screws (60). Make sure that the Sensor Wire is not
pinched between the Monitor and the Frame.
7. Apply a small amount of grease to the bolt welded in the Right
Handlebar (38). Connect a Link Arm (26) to the lower end of the
Right Handlebar with a Brass Handlebar Bushing (27), an M8
Washer (43), and an 8mm Locknut (36) as shown.
Attach the other Link Arm to the Left Handlebar in the same manner
(not shown).
47
Monitor
Wire
46
59
59
26
36 43
27
38
19
61
60
8. Note: Apply a small amount of
grease to all of the small parts
assembled in this step. Slide a
13mm Washer (23) onto the
indicated end of a Pedal Axle
(24). Insert the Pedal Axle into
the right Link Arm (26). Slide a
Steel Link Arm Bushing (32), a
13mm Washer (23), and a
Pedal Spacer (33) onto the
Pedal Axle. Firmly tighten the Pedal Axle clockwise into the right arm of the Crank (39). Tighten a 1/2Ó
Locknut (22) onto the Pedal Axle.
Attach the other Pedal to the left arm of the Crank (not shown) in the same manner.
9. Make sure that all parts of the exercise bike are properly tightened.
11 24 23 26 32 23 33 39 22
6
7
8
Batteries
19
5
