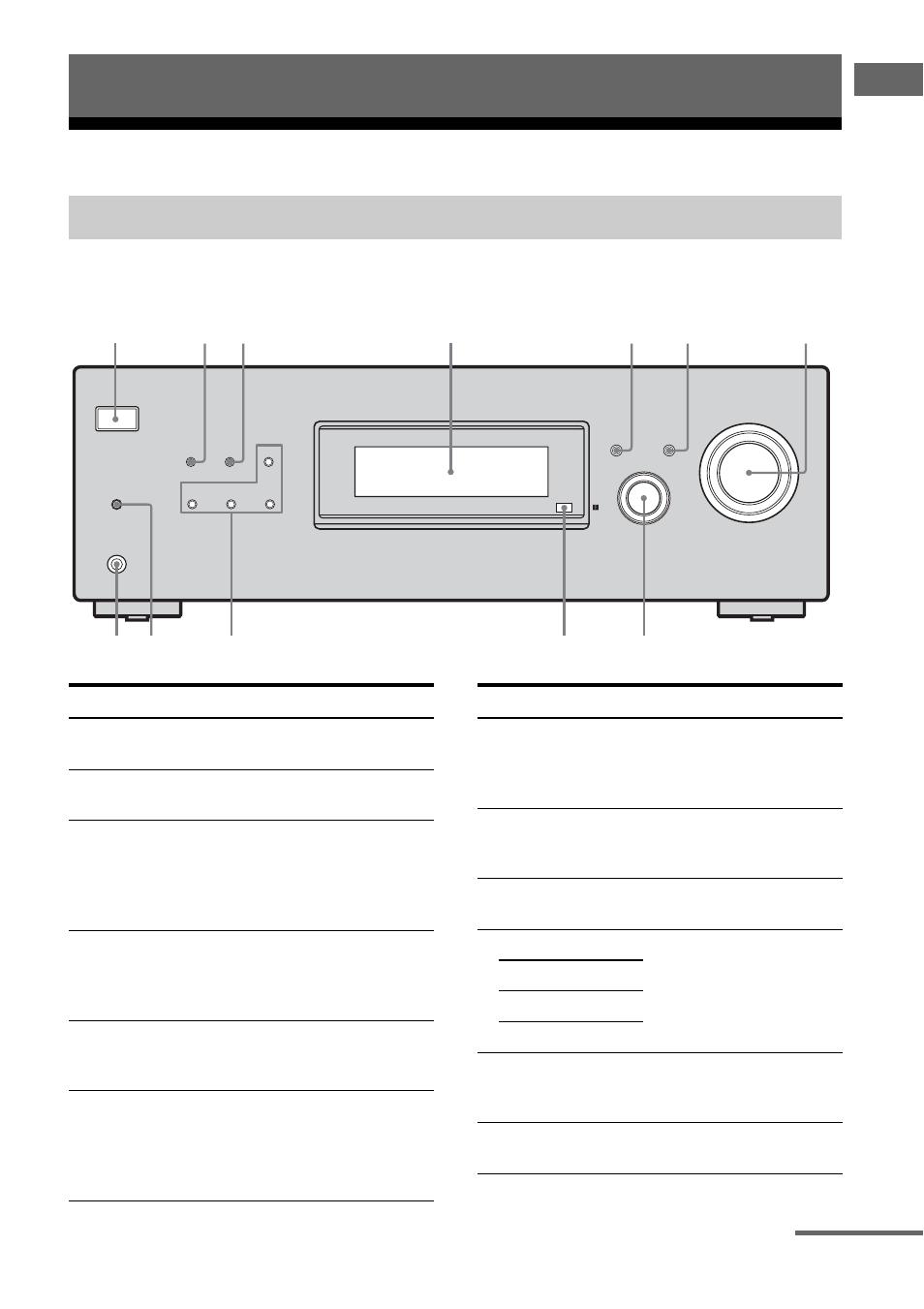

Description and location of parts
Front panel
.
Getting Started
Receiver
VIDEO IN/
PORTABLE AUDIO IN
PHONES
INPUT SELECTOR
A.F.D. MOVIE MUSIC
?/1
DIMMER SLEEP 2CH
DISPLAY
MASTER VOLUME
INPUT MODE
8 9 qa q; qs
1 4 2 3 6 5 7
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 21, 25, 26, 39).
B DIMMER Press to adjust the
brightness of the display.
C SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically
(page 46).
D Display
The current status of the
selected component or a list
of selectable items appears
here (page 6).
E DISPLAY
Press to select information
displayed on the display
(page 46).
F INPUT MODE
Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 43).
Name Function
G MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 23, 24, 25,
26).
H INPUT
SELECTOR
Turn to select the input
source to play back (page
24).
I Remote sensor Receives signals from
remote commander.
J 2CH
Press to select a sound field
(page 35, 36, 38).
A.F.D.
MOVIE
MUSIC
K VIDEO IN/
PORTABLE
AUDIO IN jack
Connects to a portable
audio such as MP3 player,
etc. (page 16).
L PHONES jack
Connects to headphones
(page 51).
continued
