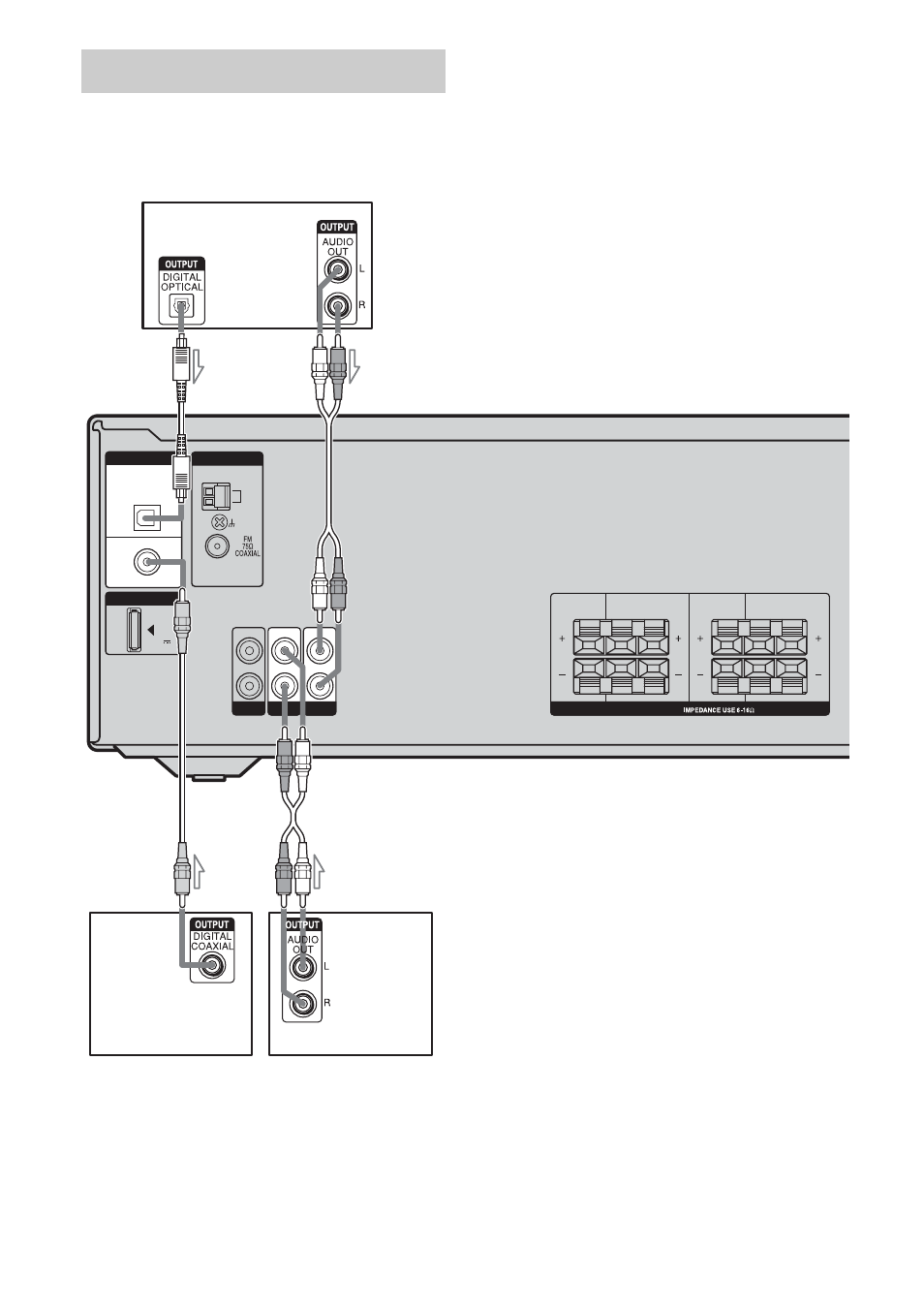

The following illustration shows how to
connect video components such as DVD
player, Blu-ray disc player, satellite tuner, etc.
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead)
.
Connecting video components
SA-CD/CD
L
R
SAT
IN
SURROUND SUB
WOOFER L R
SPEAKERS
FRONT CENTER
L R
DVD/BD
IN
DIGITAL
DMPORT
OPTICAL
SAT
IN
COAXIAL
ANTENNA
AM
IN
DC5V
0.7A MAX
TV
IN
A
C
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Coaxial digital cord (supplied)
B
Satellite tuner/
Set-top box
DVD player/
DVD recorder/
Blu-ray disc player TV
B
