Connecting to the Console Port
The DB-9 serial port on the switch’s front panel is used to connect to the
switch for out-of-band console configuration. The on-board configuration
program can be accessed from a terminal or a PC running a terminal
emulation program. The pin assignments used to connect to the serial port
are provided in the following tables.

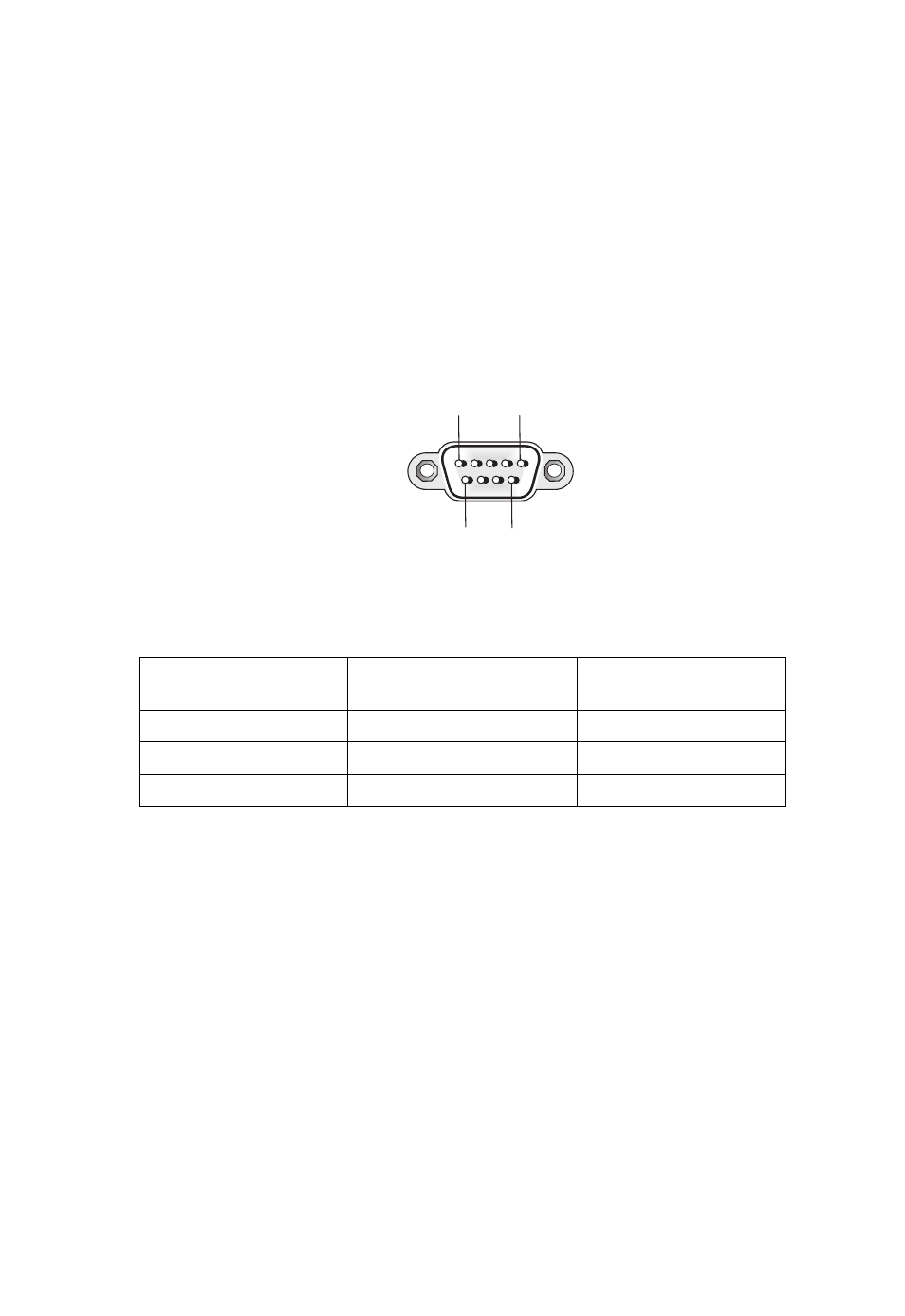

Figure 3-7. Serial Port (DB-9 DTE) Pin-Out
The serial port’s configuration requirements are as follows:
◆ Default Baud rate—9,600 bps
◆ Character Size—8 Characters
◆ Parity—None
◆ Stop bit—One
◆ Data bits—8
◆ Flow control—none
Table 3-1. Wiring Map for Serial Cable
Switch’s 9-Pin
Serial Port
Null Modem
PC’s 9-Pin
DTE Port
2 RXD (receive data)
<----------------------------
3 TXD (transmit data)
3 TXD (transmit data)
----------------------------->
2 RXD (receive data)
5 SGND (signal ground) ------------------------------
5 SGND (signal ground)
No other pins are used.
1
5
6
9
