Figure 3-2, Attaching the brackets -5, Figure 3-3 – SMC Networks TIGERSWITCH SMC8648T User Manual
Page 41: Installing the switch in a rack -5, Ounting
M
OUNTING
3-5
To rack-mount devices:

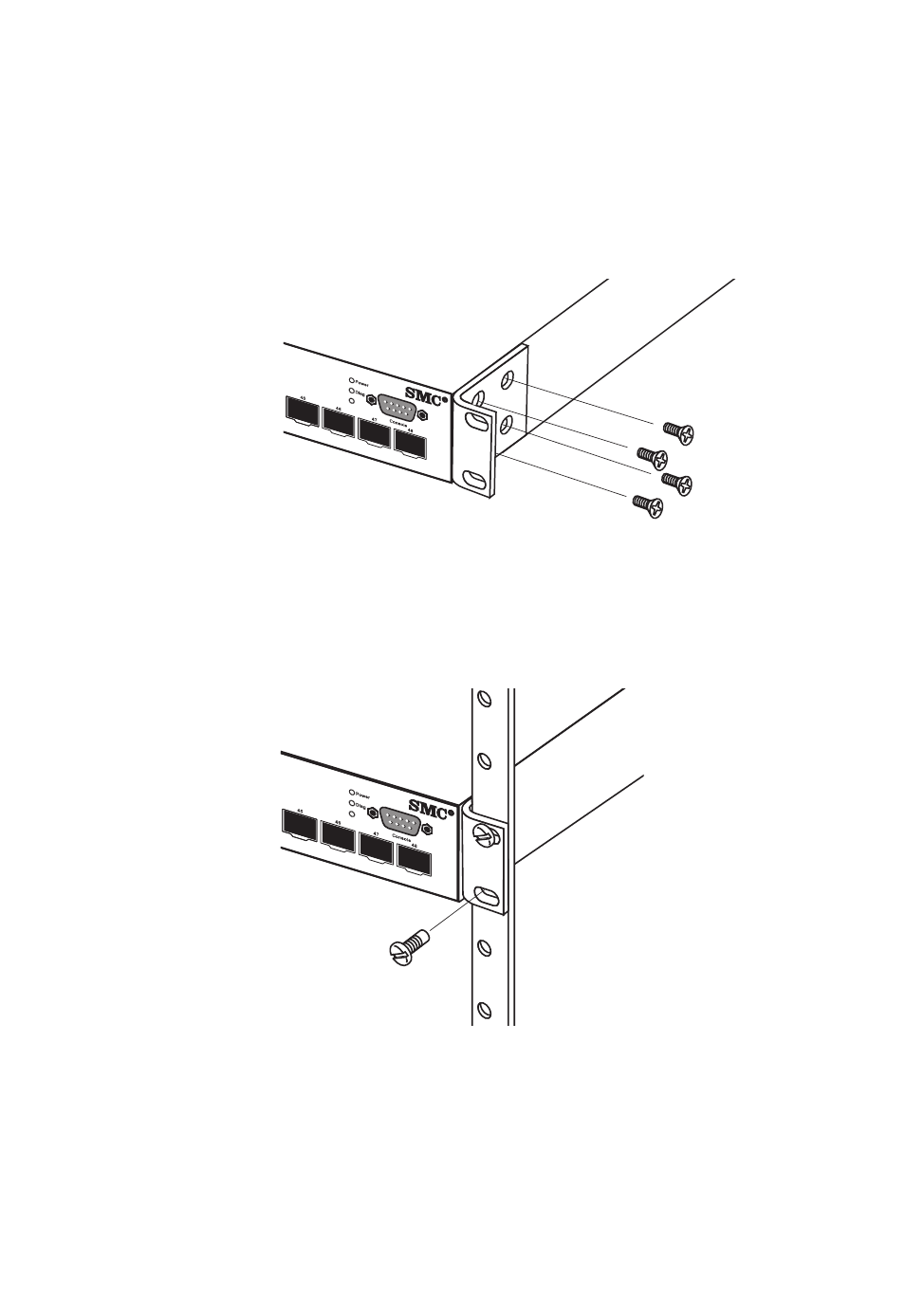

1. Attach the brackets to the device using the screws provided in the
Bracket Mounting Kit.
Figure 3-2. Attaching the Brackets
2. Mount the device in the rack, using four rack-mounting screws (not
provided).
Figure 3-3. Installing the Switch in a Rack
TigerSw
itc
h 10/100/1000
8648T
RPU
Tige
rSw
itch
10/1
00/1
000
8648
T
RPU
