Indications and displays

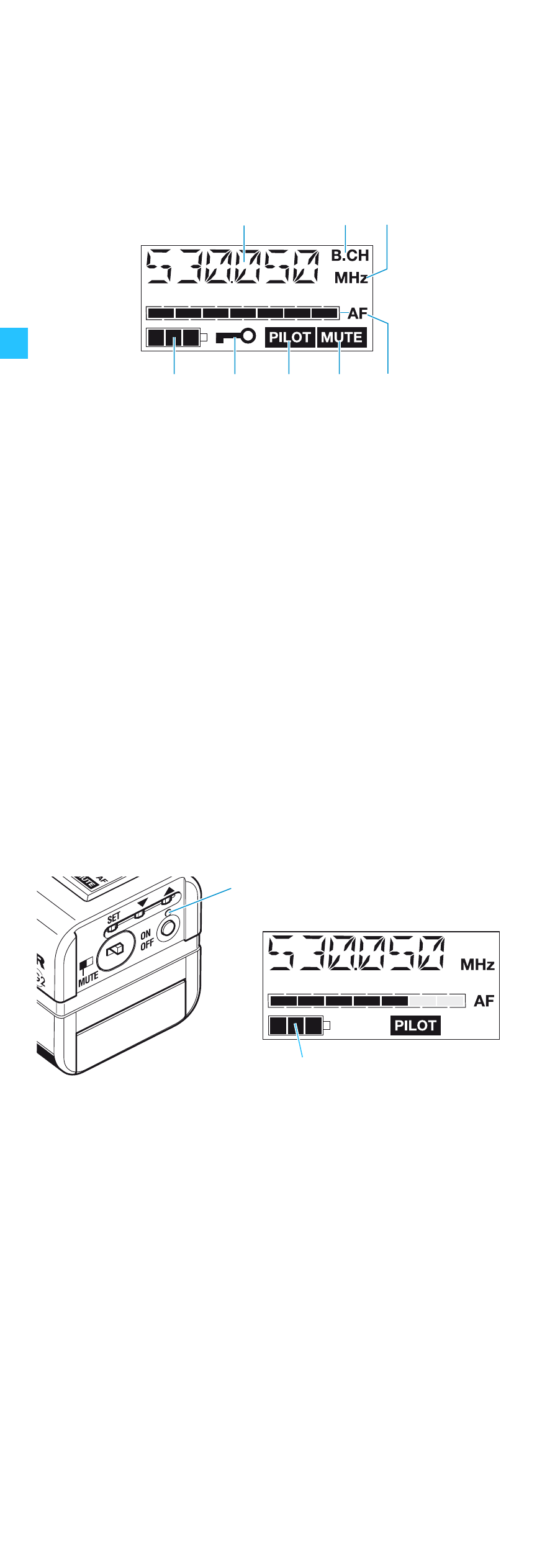

LC display panel
ቢ
Alphanumeric display
ባ
“B.CH“ – appears when the channel bank and
the channel number are displayed
ቤ
“MHz“ – appears when the frequency is displayed
ብ
4-step battery status display
ቦ
Lock mode icon
(lock mode is activated)
ቧ
“PILOT” display
(pilot tone transmission is activated)
ቨ
“MUTE” display
(audio input is muted)
ቩ
7-step level display for audio signal “AF”
Operation and battery status indication
The red LED (LOW BAT/ON)
¶
provides information on the
current operating state of the plug-on transmitter:
Red LED lit up: The plug-on transmitter is switched
on and the capacity of the batteries/
BA 2015 accupack is sufficient.
Red LED flashing: The batteries are/the BA 2015
accupack is going flat (LOW BAT)!
In addition, the 4-step battery status display
ብ
on the
display panel provides information on the remaining
battery/BA 2015 accupack capacity:
3 segments: capacity approx. 100 %
2 segments: capacity approx. 70 %
1 segment: capacity approx. 30 %
Battery icon flashing: LOW BAT
