ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK.

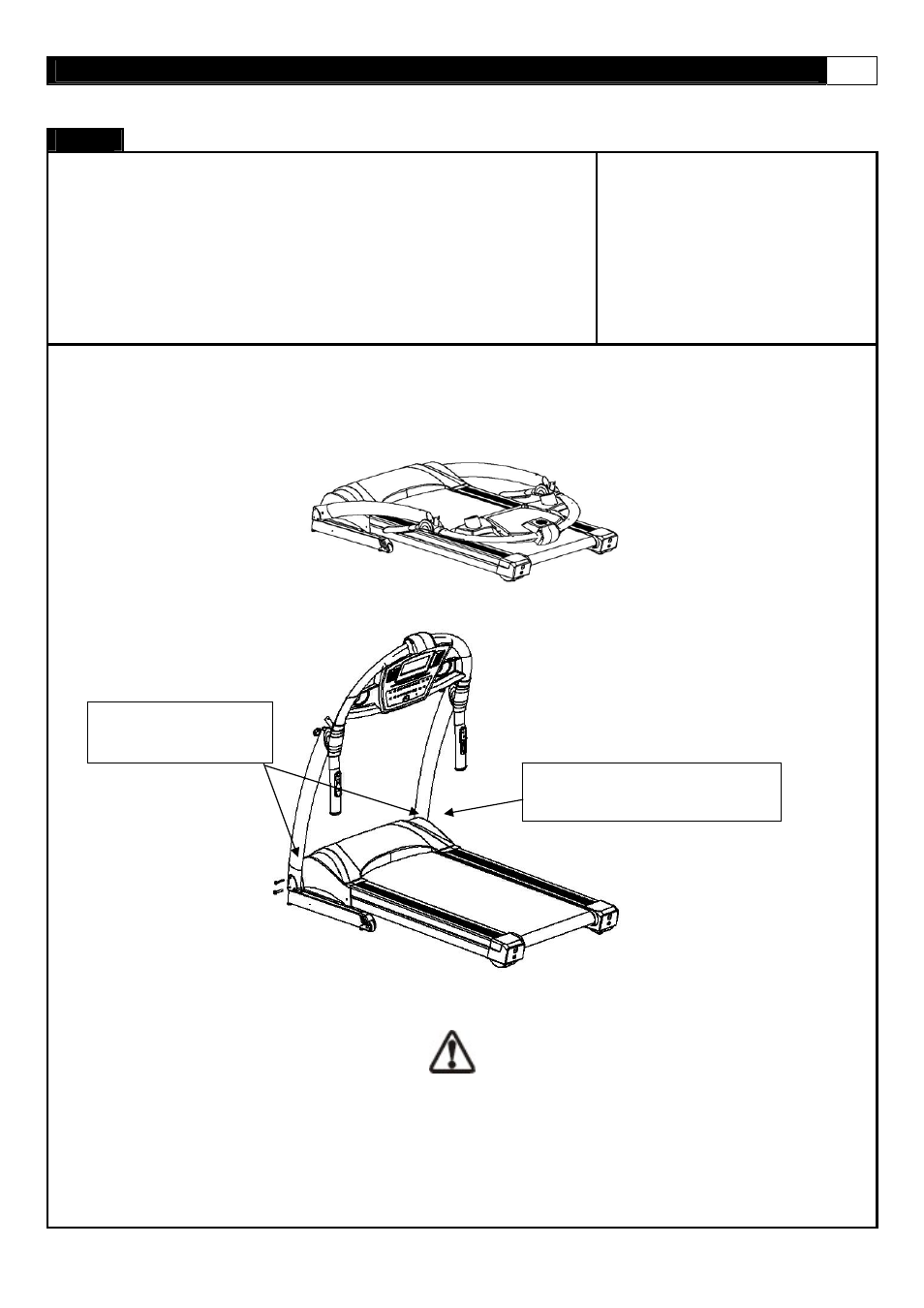

Step1: Assemble console mast to the base frame.
1).Place the product in the area it will be used
Note: the treadmill must be placed on a level surface.
2).Remove the treadmill from the packing
3).Rotate the left and right uprights towards the front of the treadmill.
4).Once the uprights are in position secure the left side with 4 M8*50 bolts.
5). Repeat the above process for the right side
Bolts should be hand tight only. Do
not tighten until step 2 is complete
Caution Pinch point Do not
pinch the wires between frame
Only and hand tighten
bolts until step is
complete
