Your Granite amplifier is protected against both overheating and short circuits by
means of the following circuits:
l
A main power supply fuse
l
A fail-safe protection circuit activating at 85°C.
. Overcurrent Channel Circuit Breakers
l
Short-circuit shutdown
TROUBLESHOOTING
PROBLEM CAUSE
No Sound and are not lit
l
no power or ground at amp
l
no remote turn-on signal
l
blown fuse near battery
l
blown power supply fuse (accessible
through access cover on-bottom of amp)
Repeatedly blown amp fuse or
l
speaker or leads may be shorted
frequent activation of thermal
l
verify adequate cooling of the amplifier
shut-off
l
speaker load may be less than 2 Ohms
SERVICE
Your Soundstream amplifier is protected by a limited warranty. Please read the
warranty card enclosed with this product.

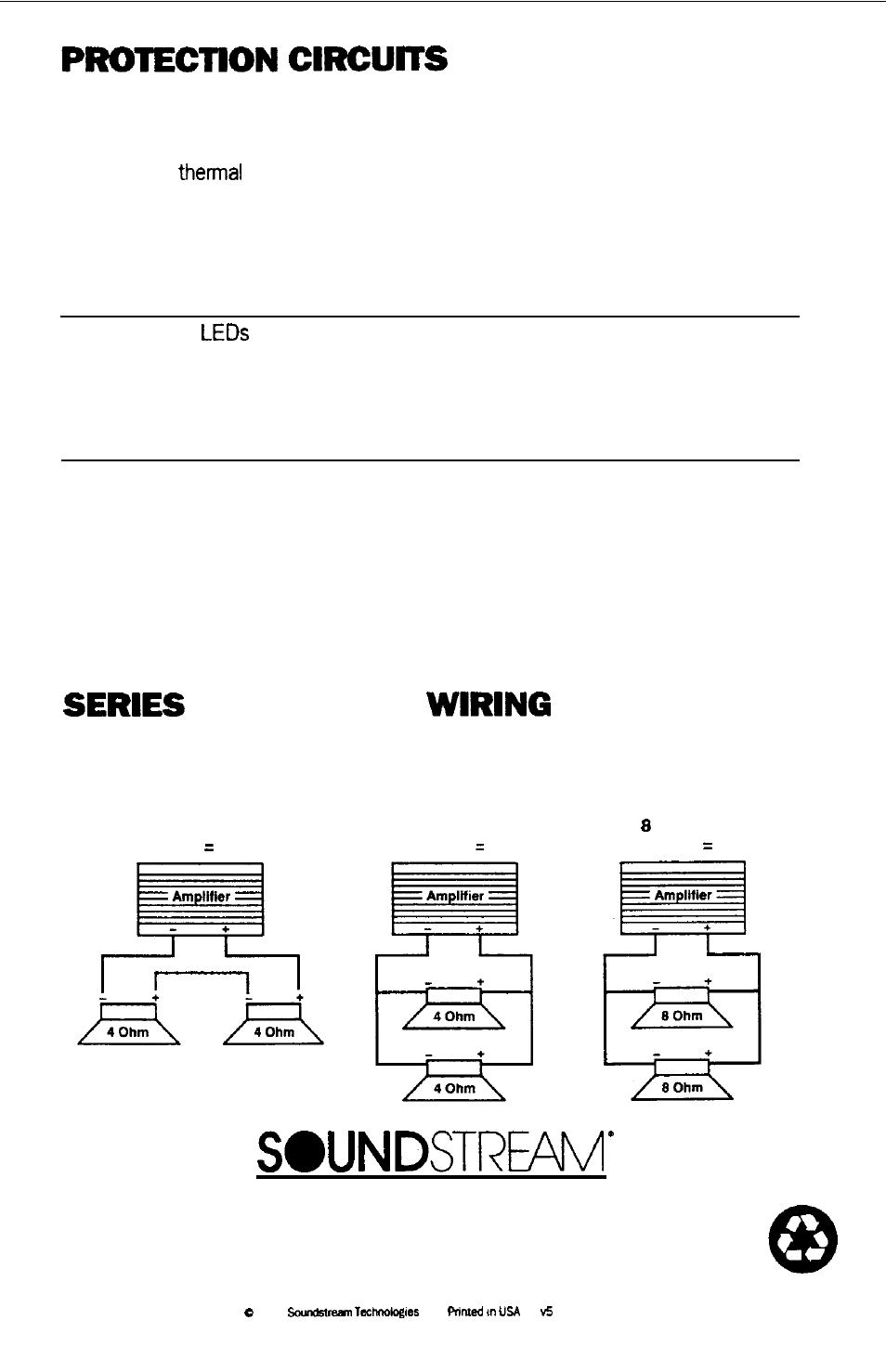

& PARALLEL DIAGRAMS
See
the diagram below. Note that the manner in which speakers are connected
affects the load presented to the amplifier. Keep your speaker load at 2 ohms or
greater for any Granite amplifier (4 ohms or greater in Bridged Mode).
Two 4 Ohm Speakers
in SERIES 8 Ohms
Two 4 Ohm Speakers
in PARALLEL 2 Ohms
Two Ohm Speakers
in PARALLEL 4 Ohms
