REAR PANEL CL608e and CL612e
Power On/Off Switch: Turns power On or Off.
AC Input: Input 115V 50/60 Hz connector. Use the cable
provided.
AC Fuse: Input power protection. Type 3A/250V.
Interface Slot: Slot to plug in an interface adapter. An adapter must be
connected before the printer is operational.The adapter
types available are:
RS232C Serial I/F Module, DB-25P.
IEEE1284 Parallel I/F Module, AMP 57-40360
Universal Serial Bus I/F Module
Ethernet 10/100BaseT I/F Module
Memory Card Slot: Two connectors for optional PCMCIA Memory Cards.
EXT: External signal connector, AMP 57-60140.
Page 2-16 PN 9001074 Rev. B SATO CL Series “e” Printers
Section 2. Installation

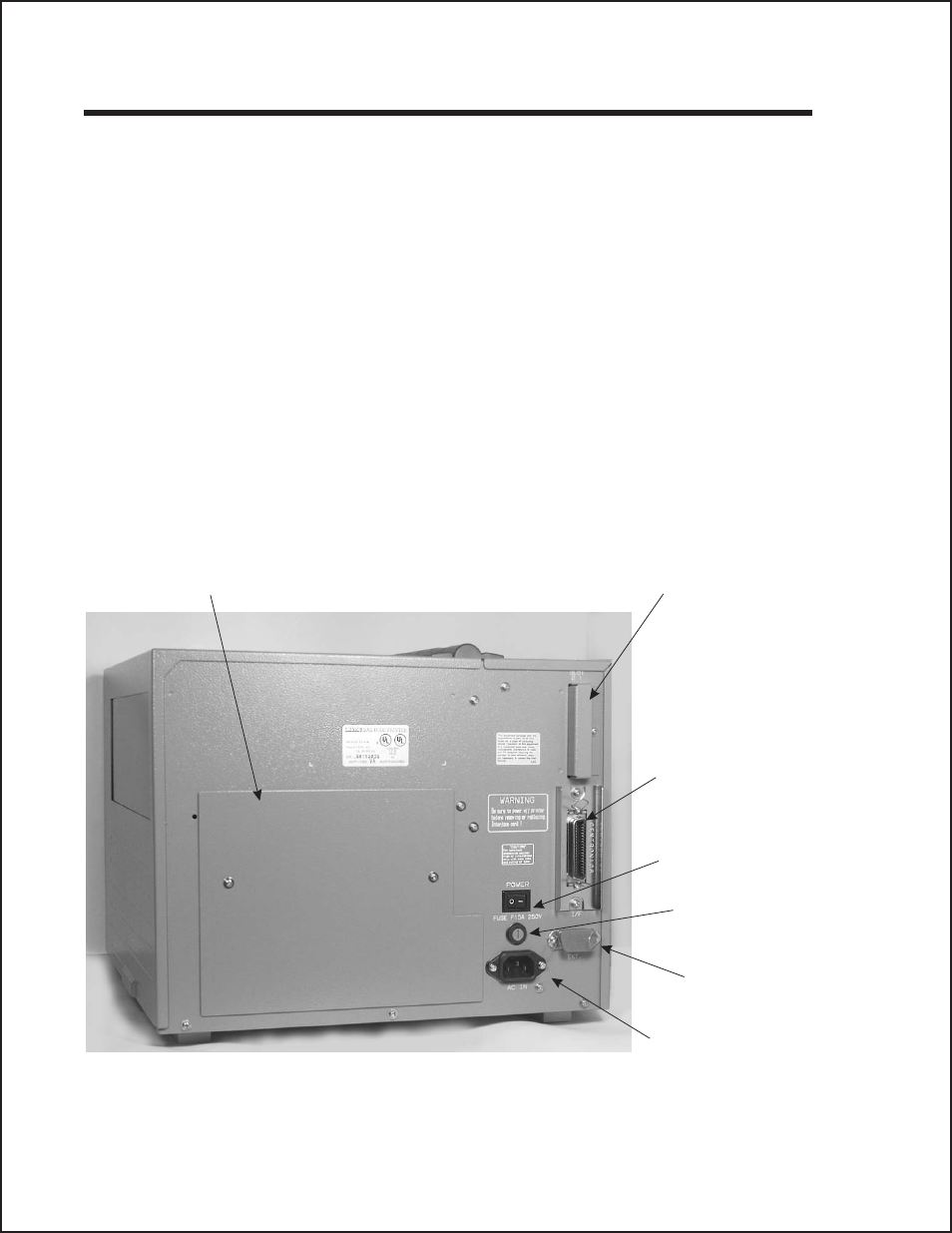

PCMCIA Memory
Expansion slot
AC Power Input
Connector
External Accesory
Connector
Power Switch
I/F Module
Parallel Shown
Cover Plate
Remove for access to Dispenser
and Fan-Fold Slots
AC Fuse
