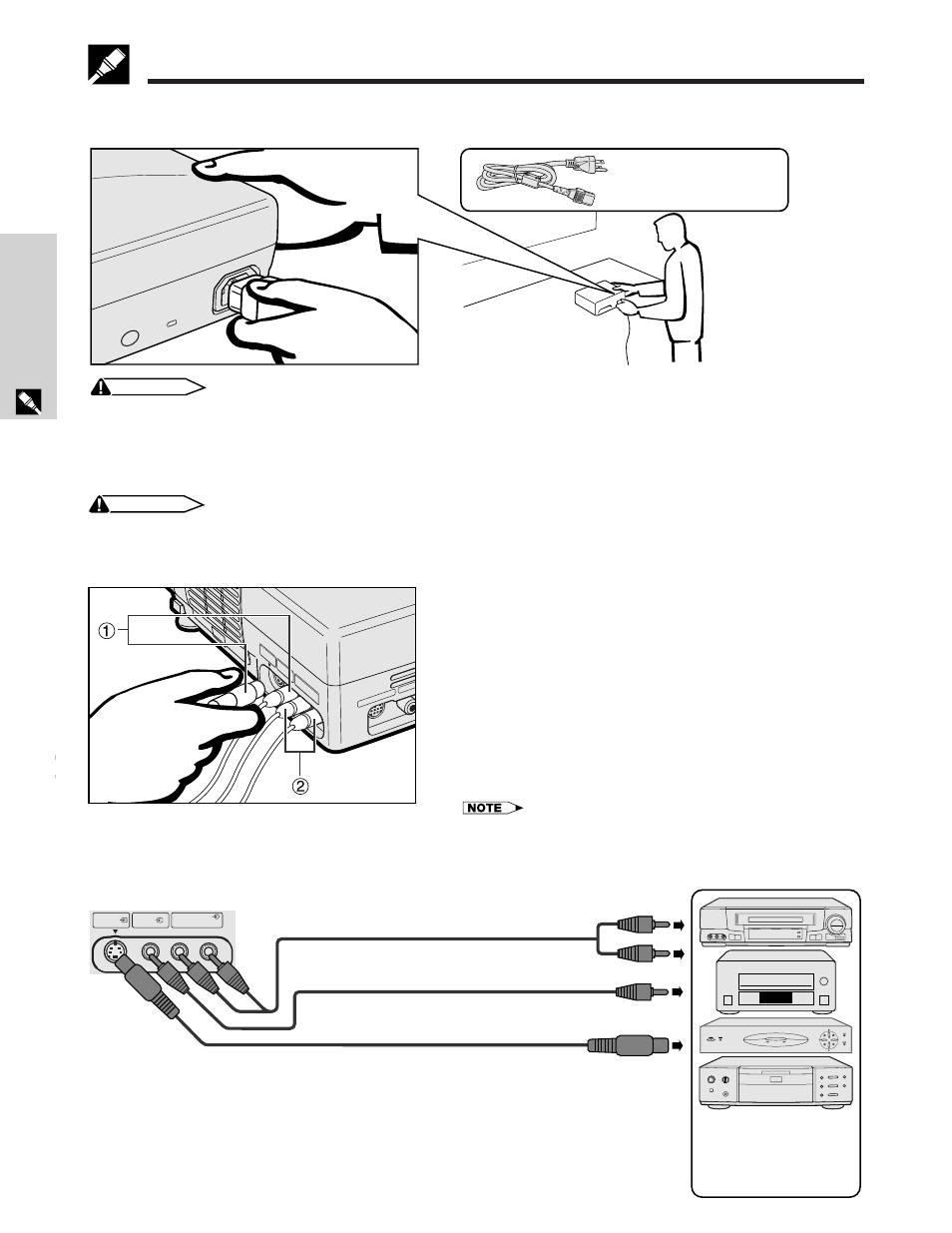

Sharpvision XV-Z7000U - Manual (Page 11)

E-11
Setup & Connections
Connecting the Power Cord
Plug the supplied power cord into the AC socket on the back of the projector.
Power cord
CACCU5013DE01
Connecting the Projector
1 Connect one end of the S-video cable to the S-VIDEO
INPUT terminal, or one end of the video cable to the
VIDEO INPUT terminal on the projector and the video
output terminal on the video source.
2 To use the built-in audio system, connect the RCA
connectors to the corresponding AUDIO INPUT (S-
VIDEO, VIDEO INPUT) terminals on the projector and
the audio output terminals on the audiovisual source.
The S-VIDEO INPUT terminal uses a video signal system
in which the picture is separated into a color and a
luminance signal to realize a higher-quality image.
• For higher quality video, you may use the S-VIDEO INPUT terminal on
the projector. S-video cable is sold separately.
• If your video equipment does not have an S-video output terminal, use
the composite video output terminal.
Connecting the Projector to Audiovisual Equipment
You can connect your projector to a VCR, laser disc player, DVD player, DTV decoder and other audiovisual
equipment.
CAUTION
• Always turn off the projector while connecting to audiovisual equipment, in order to protect both the projector and the
equipment being connected.
Connecting a video source (VCR, laser disc player, DTV decoder or DVD player) using the standard video and audio input
VIDEO
INPUT S-VIDEO
INPUT AUDIO INPUT
(S-VIDEO, VIDEO INPUT)
L R
1 Video cable (sold separately)
2 Audio cable (sold separately)
To audio output terminals
To video output terminal
To S-video output terminal
1 S-video cable (sold separately)
Projector
VCR,
Laser disc player,
DTV decoder or
DVD player
OR
CAUTION
• Make sure you connect the power cord firmly into the AC socket.
OR
