StorCase Technology, Inc. DE100i-SW/SWC User's Guide - Rev. G01
14 Installation
Front of
Receiving
Frame
0143
0 2
4
6
8
A
C
E
0 = 10 SECONDS 8 = 50 SECONDS
1 = 15 SECONDS 9 = 55 SECONDS
2 = 20 SECONDS A = 60 SECONDS
3 = 25 SECONDS B = 65 SECONDS
4 = 30 SECONDS C = 70 SECONDS
5 = 35 SECONDS D = 75 SECONDS
6 = 40 SECONDS E = 80 SECONDS
7 = 45 SECONDS F = 85 SECONDS
Spin Down/Up Time

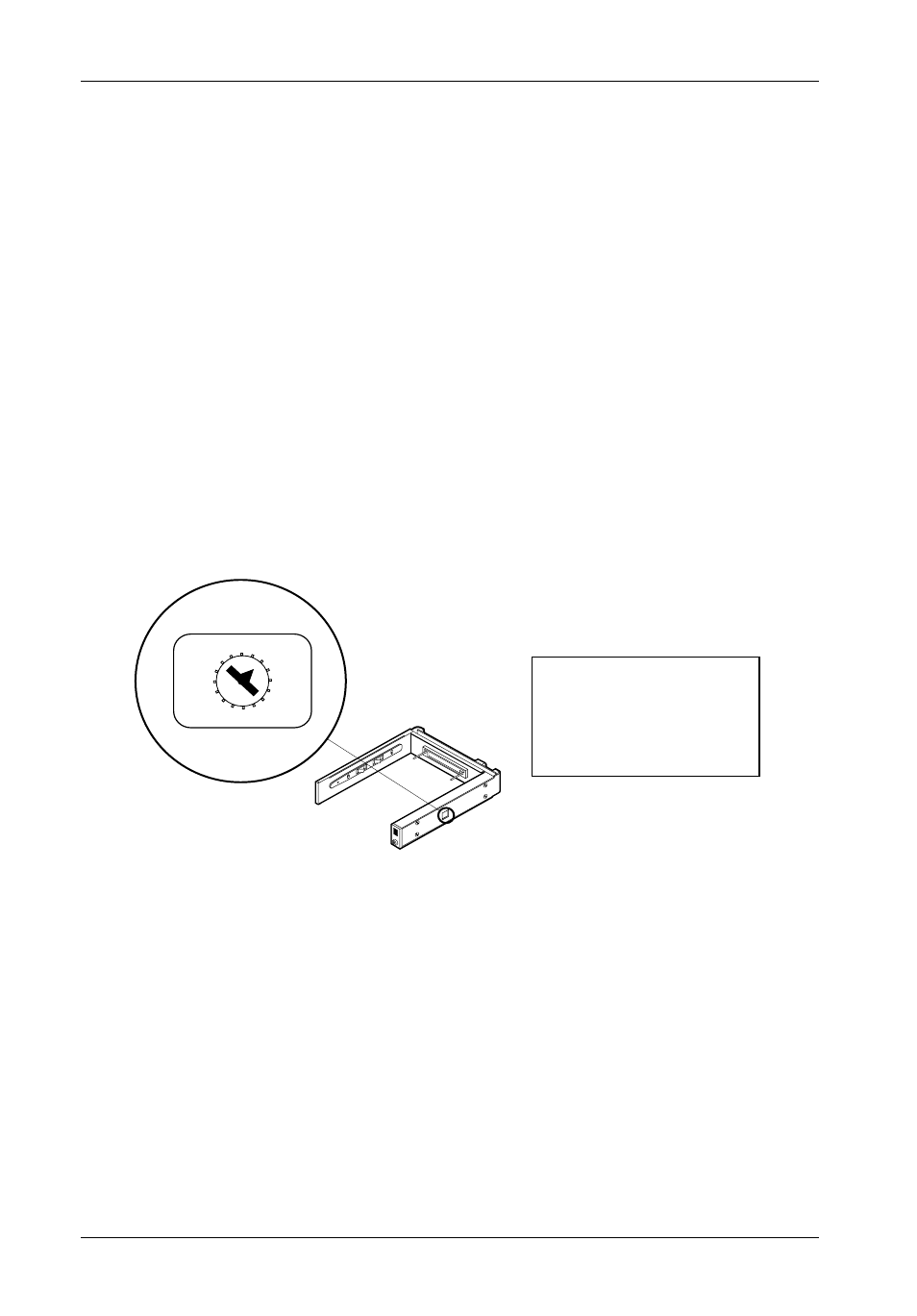

Figure 11: Device Spin Down/Up Timer
NOTE: The timer for device spin down is controlled by a small selector, located in a cutout
on the side of the DE100 receiving frame as shown in Figure 11. When the key
is turned to the OFF position, and when the timer receives a No SCSI Activity signal
from the Hot Swap Board, it waits the specified delay time before displaying a “u”
on the front panel of the receiving frame. The amount of time required for a disk
drive to spin down is approximately 15 seconds or more. This number can vary
depending on the type of SCSI device and manufacturer (e.g. a Seagate Barracuda
may require 45 seconds). The factory configuration is set for 20 seconds. A
different delay time may be selected with the provided aligment tool. Refer to the
SCSI device manufacturer’s manual for more information on required device spin
down time.
Adjusting the Spin Down/Up Timer
