StorCase Technology, Inc. DE100i-SW/SWC User's Guide - Rev. G01
10 Installation

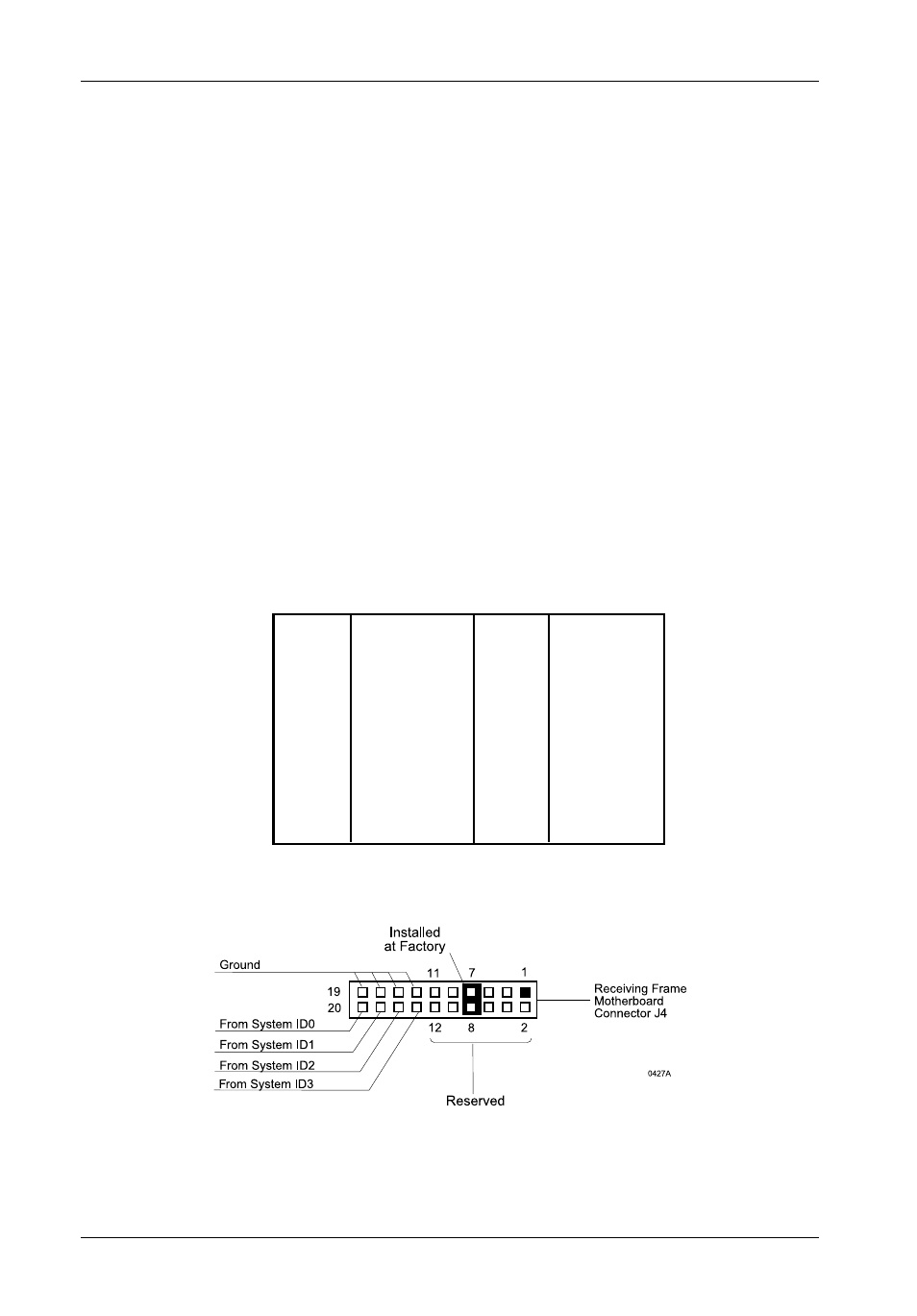

Figure 8: Receiving Frame Connector J4 Pin Configuration
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3. To select the DE100 unit ID remotely through the computer system or external
expansion chassis, the appropriate cable from the system must be connected to
the ID select connector (J4) on the rear of the receiving frame as shown in Table
1 and Figure 8.
Table 1: Receiving Frame Motherboard Connector J4 Pin Configuration
Pin 1 RESERVED Pin 11 RESERVED
Pin 2 RESERVED Pin 12 RESERVED
Pin 3 RESERVED Pin 13 Ground
Pin 4 RESERVED Pin 14 ID3
Pin 5 RESERVED Pin 15 Ground
Pin 6 RESERVED Pin 16 ID2
Pin 7 RESERVED Pin 17 Ground
Pin 8 RESERVED Pin 18 ID1
Pin 9 RESERVED Pin 19 Ground
Pin 10 RESERVED Pin 20 ID0
