-10-
W1754S 20" Planer with Spiral Cutterhead
501
502
504
503
505
506
507
508
509
514
510
511
512
513
517
520
532
531
530
528
527
525
526
524
523
522
521
529
519
516
518
515
533

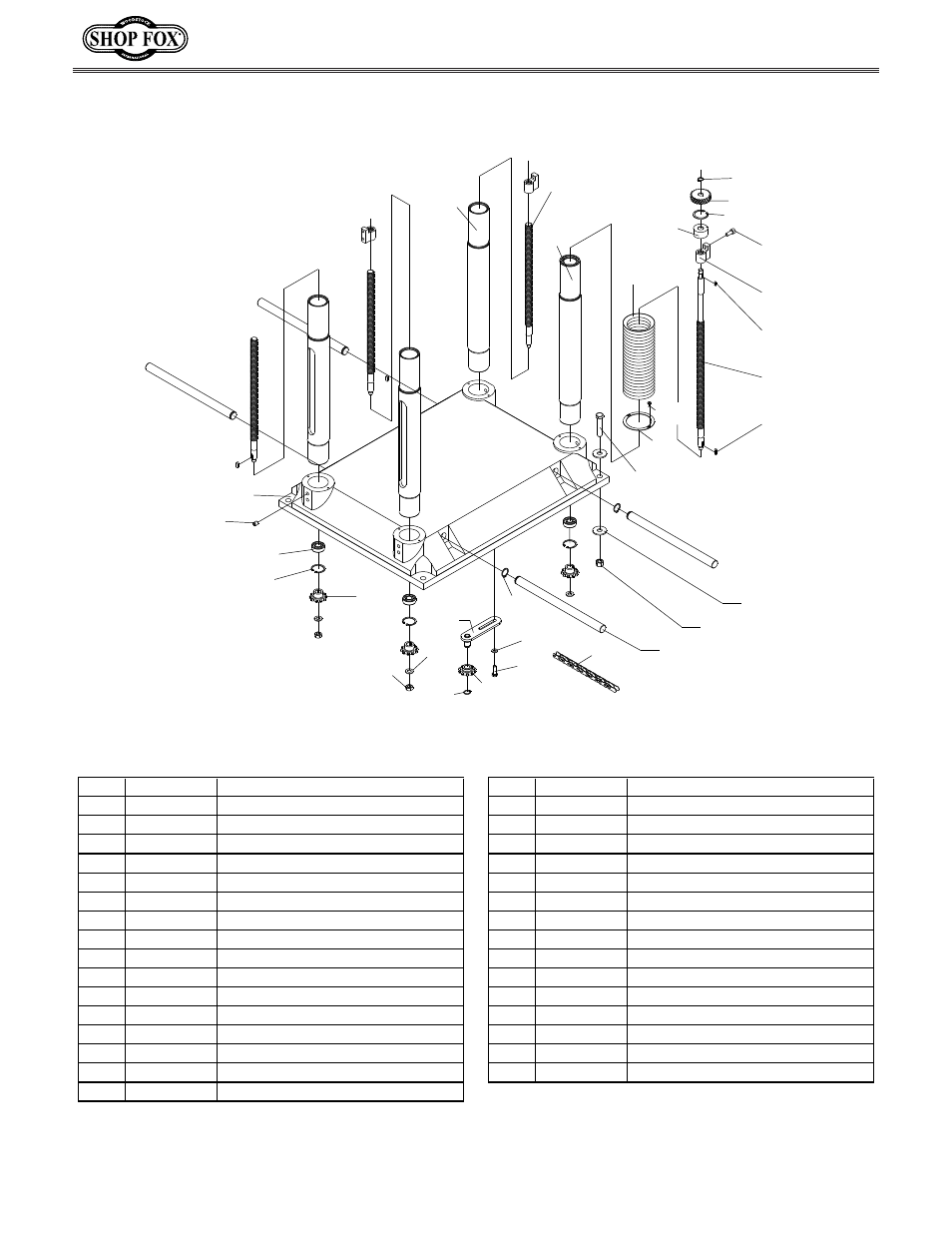

Columns Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 X1754501 BASE 518 XPR03M EXT RETAINING RING 12MM
502 XPB38M HEX BOLT M12-1.75 X 60 519 X1754519 SPROCKET
503 XPN09M HEX NUT M12-1.75 520 XPK08M KEY 5 X 5 X 16
504 XPW06M FLAT WASHER 12MM 521 XPW04M FLAT WASHER 10MM
505 X1754505 COLUMN 522 XPN02M HEX NUT M10-1.5
506 XP6202ZZ BALL BEARING 6202ZZ 523 X1754523 BRACKET ASSEMBLY
507 XPR21M INT RETAINING RING 35MM 524 XPR05M EXT RETAINING RING 15MM
508 X1754508 COLUMN 525 XPB07M HEX BOLT M8-1.25 X 25
509 XPR22M INT RETAINING RING 38MM 526 X1754526 SPROCKET
510 XPSS13M SET SCREW M10-1.5 X 12 527 XPW01M FLAT WASHER 8MM
511 X1754511 LEAD SCREW 528 X1754528 CRANE POST
512 X1754512 LEAD SCREW 529 XPR81M EXT RETAINING RING 21MM
513 X1754513 LEAD NUT 530 X1754530 PIPE BAND
514 XPSB14M CAP SCREW M8-1.25 X 20 531 XPS09M PHLP HD SCR M5-.8 X 10
515 X1754515 BUSHING 532 X1754532 DUST BOOT
516 X1754516 GEAR 533 X1754533 CHAIN 08A-1 X 66
517 XPK69M KEY 4 X 4 X 12
