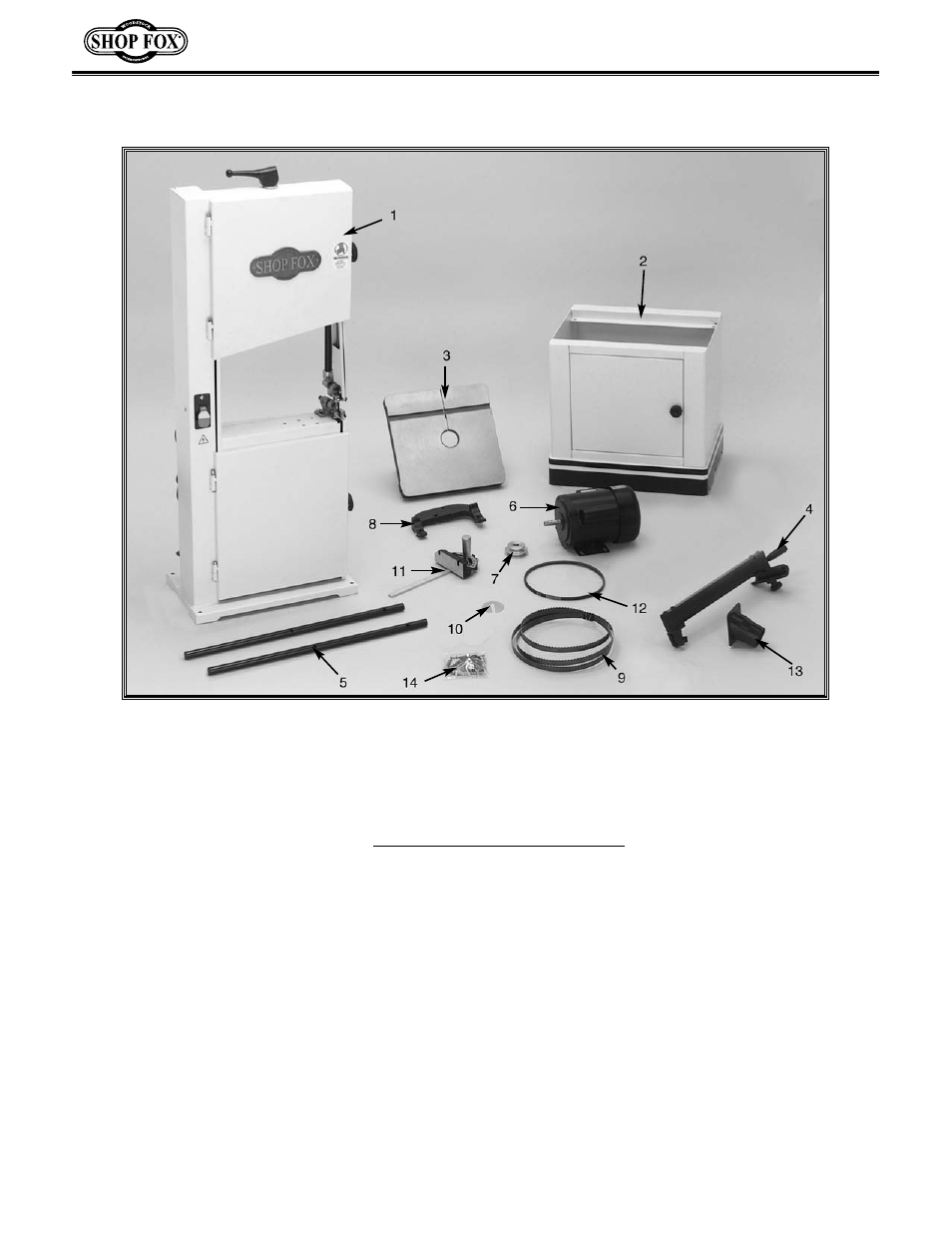

Figure 10. Components laid out for identification.
The following is a description of the components shipped with the Shop Fox ® W1672 14" Bandsaw. It is
recommended that the components be laid out in a similar fashion to those in Figure 10. This will help
in identification before beginning assembly. Should any part be missing, examine the packaging careful-
ly to be sure none are among the packing materials. If any key parts are missing, contact Woodstock
International, Inc. at 360-734-3482 or [email protected].
ASSEMBLY INSTRUCTIONS
1. Bandsaw Body
2. Cabinet Stand
3. Table
4. Fence
5. Fence Rails (2)
6. Motor
7. Motor Pulley 8. Trunnion Support
9.
3 ⁄
8
" Bandsaw Blade
10. Table Insert
11. Miter Gauge
12. V-Belt
13. Dust Port
14. Bag of Hardware (see next page for detailed
contents)
