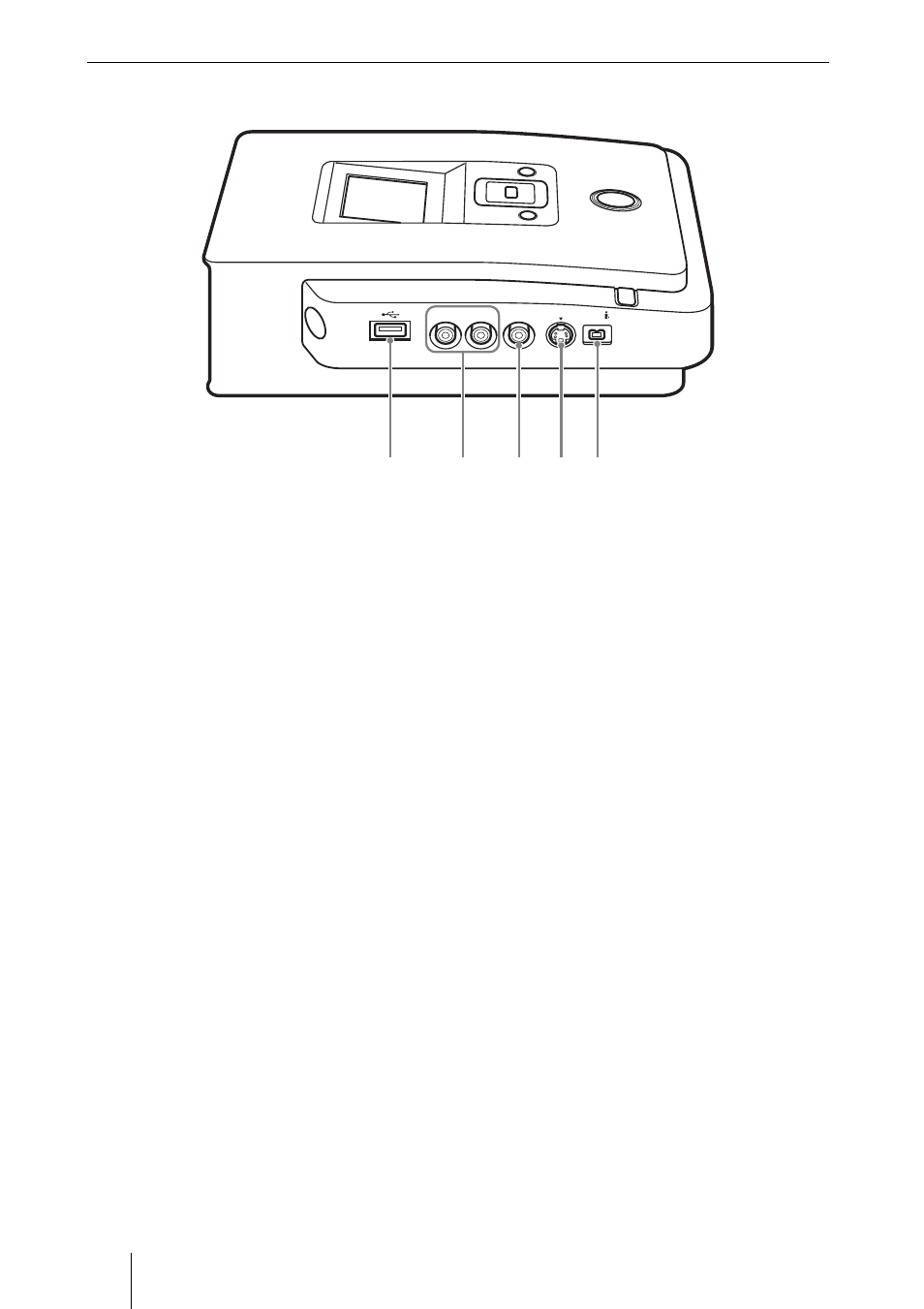

Left side panel

A USB connector (Type A)

Connect the USB cable (not supplied)
here when connecting a Handycam

B AUDIO IN L/R connectors

Connect the audio plugs of an AV cable
(not supplied) here when connecting the
DVDirect to a video device, such as a
camcorder or VCR.

C VIDEO IN connector

Connect the video plug of an AV cable
(not supplied) here when connecting the
DVDirect to a video device, such as a
camcorder or VCR.

D S VIDEO IN connector

Connect an S-video cable (not supplied)
here when connecting the DVDirect to a
video device with an S-video connector,
such as a camcorder or VCR.

E DV IN connector (4-pin)

Connect a DV (i.LINK) cable (not
supplied) here when connecting the
DVDirect to a DV camcorder with DV
connector.

HANDCAM

R-AUDIO IN-L

VIDEO IN

S VIDEO IN

DV IN
