Model W1798 Professional Spray Gun
-11-
Lubrication
Lubricate the following areas with
spray gun lube after cleaning:
A. Atomizing Cap Threads and Gasket
B. Pattern Control Knob
C. Fluid Control Knob
D. Reservoir Quick Release Lever
E. Reservoir Gasket
F. Trigger Pin
After each cleaning, apply a thin film
of petroleum jelly to the needle spring
before reassembling.

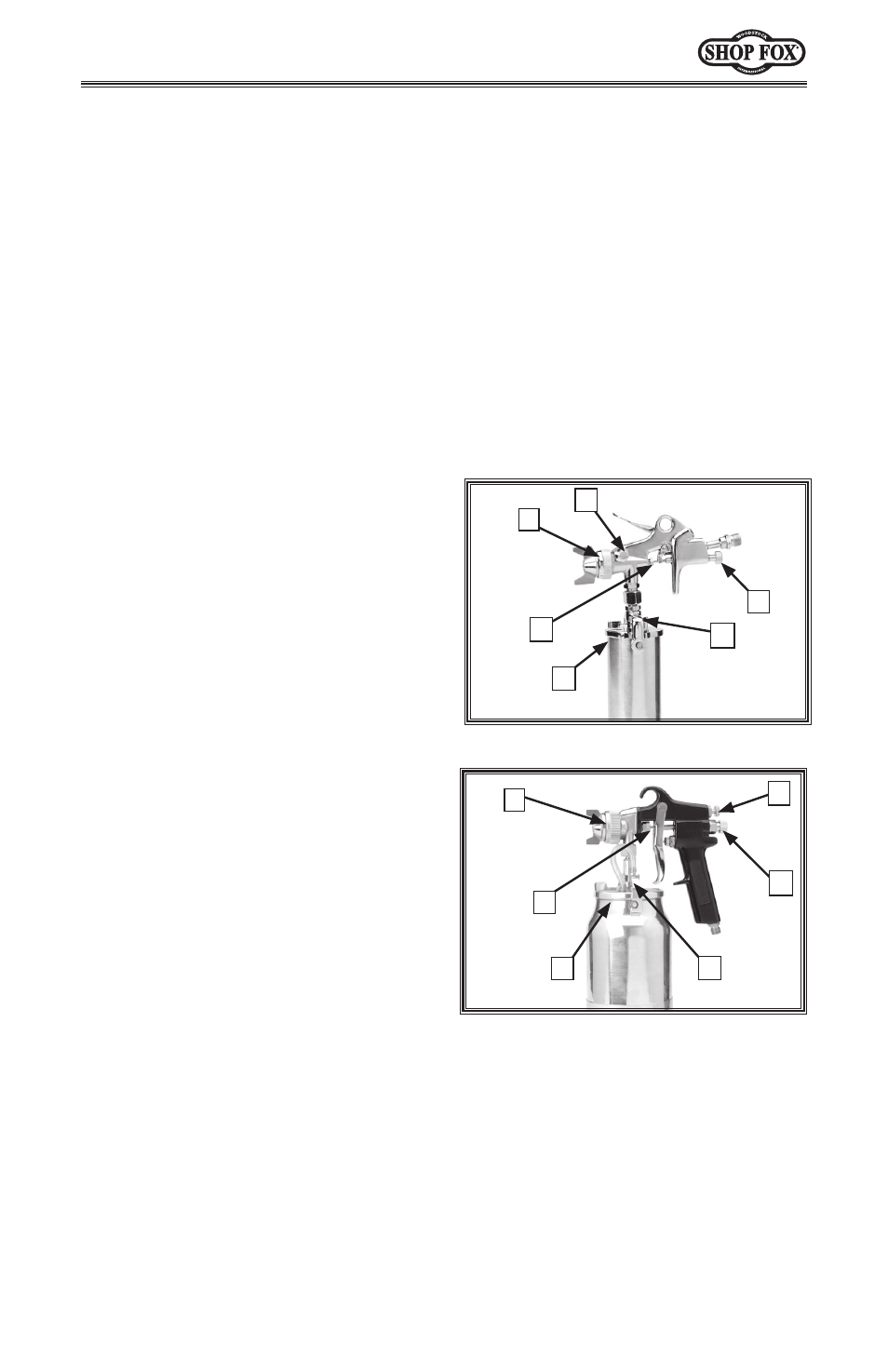

Figure 11. Lubrication points.
A
F
D
E
B
C
6. Rinse these parts thoroughly in sol-
vent, then dry with compressed air or
let air dry.
Note: If the small holes in the atomiz-
ing cap become blocked, soak in clean
solvent. If the blockage still exists, clear
the blockage with a small needle, tak-
ing great care to not enlarge or damage
the hole. Damage to the hole will create
a disrupted spray pattern.
7. Use an old tooth brush with solvent to
clean the inner orifice and other hard
to reach areas on the outside of the
spray gun body.
8. Wipe the gun body with a lint free
shop towel to dry.
Figure 12. Lubrication points.
A
B
C
D E
F
