• The audio-video cables shown here are usually included with a Camcorder.
(If not, check your local electronics store.)
If your camcorder is stereo, you need to connect a set of two cables.

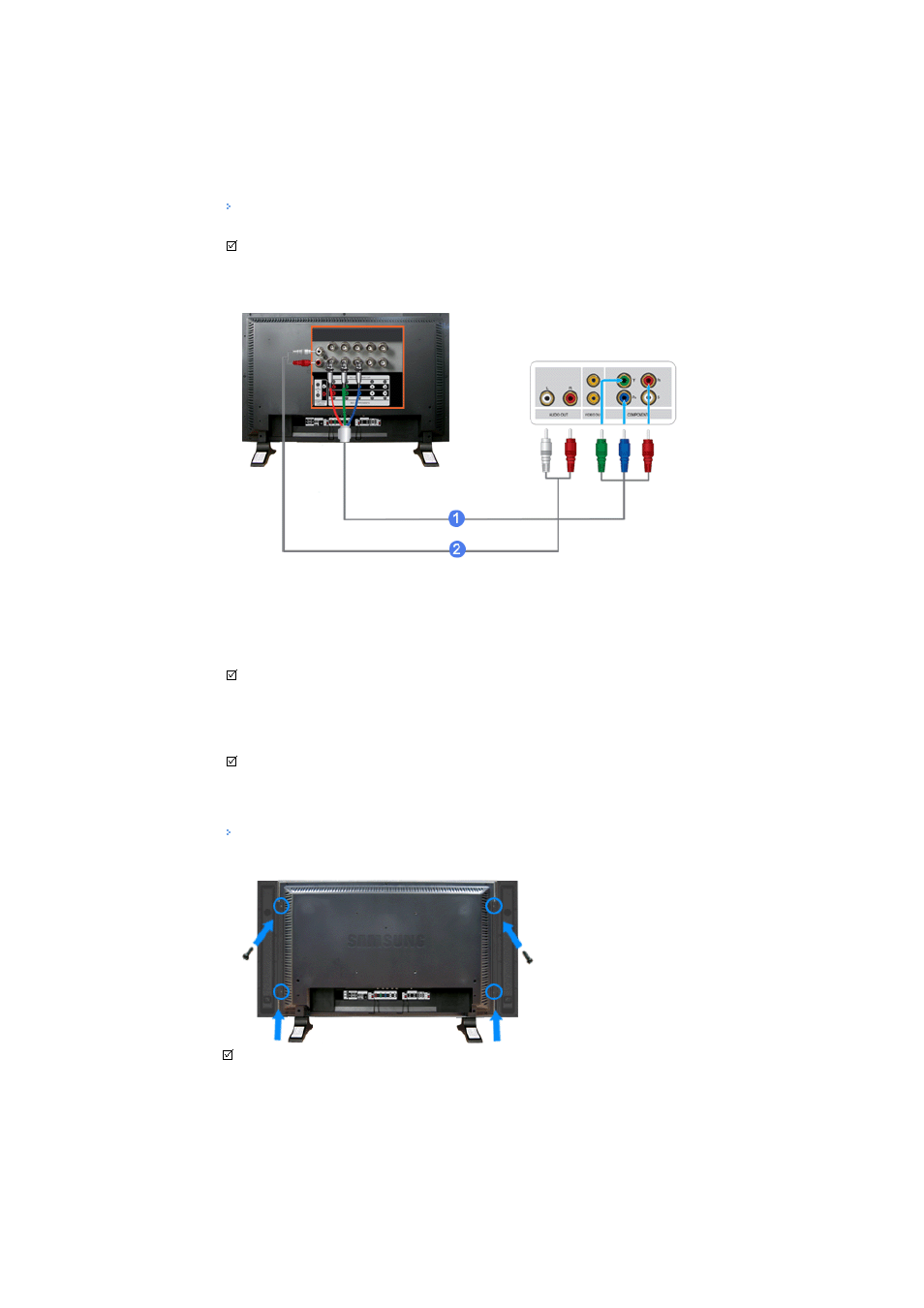

Connecting a DTV Set Top Box
Note
• The connections for a typical Set Top Box are shown below.
1) Connect a Component cable between the BNC / COMPONENT IN - P R , Y, P B port on the LCD Display and
the P R , Y, P B jacks on the Set Top Box.
2) Connect a set of audio cables between the COMPONENT AUDIO IN [L-AUDIO-R] on the LCD Display and
the AUDIO OUT jacks on the Set Top Box.
Note
• Select Component for the connection to a DTV Set Top Box using the SOURCE button on the front of the
LCD Display or on the remote control.
Note
• For an explanation of Component video, see your Set Top Box owner's manual.
Connecting Speakers
Note
• Fasten the SET and the speaker using the screws.
* Mount the speaker set without the speaker stand.
