B W CCD CAMERA
B W CCD CAMERA
10
11

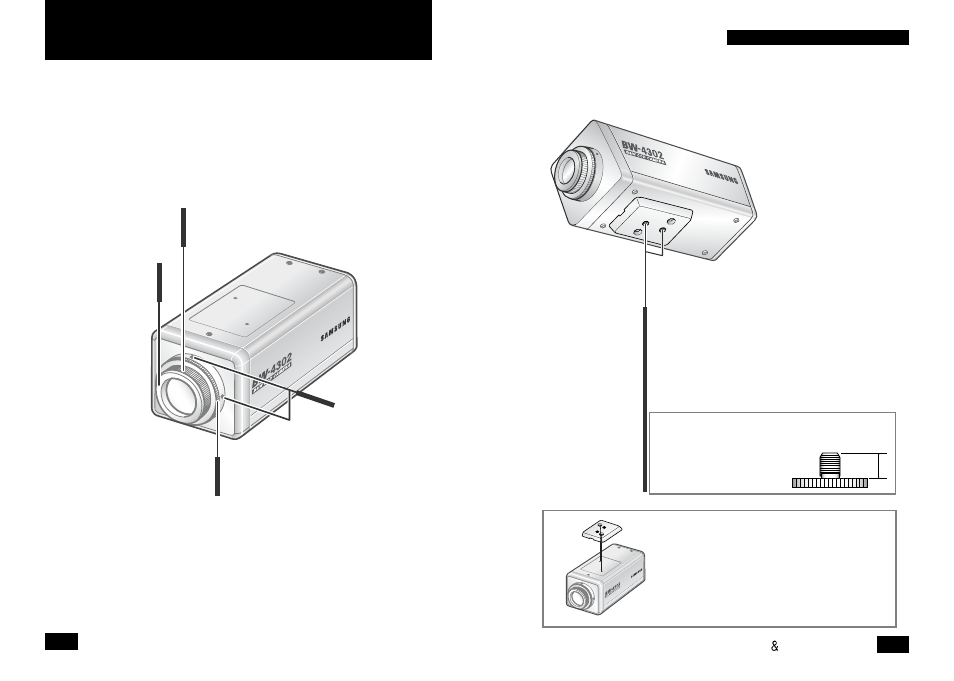

C -Mount Lens Adapter
Back Focus
Lock Screw
CS-Mount Lens Adapter
Glass Protecting Cap
L
1/4 -20 UNC (20 THREAD)
L : 4.5mm 0.2 mm (ISO standard),
or 0.197 (ASA standard)
Tripod Mounting Hold
Used to install the camera on an optional tripod.
The tripod must be equipped with the screw
specified as shown below
You can remove and install this bracket on the top
of the camera.
You must use the supplied screw or the equivalent
(within 5mm). If not, it can cause malfunction and
demage inside the camera.
Getting to Know Your Camera
