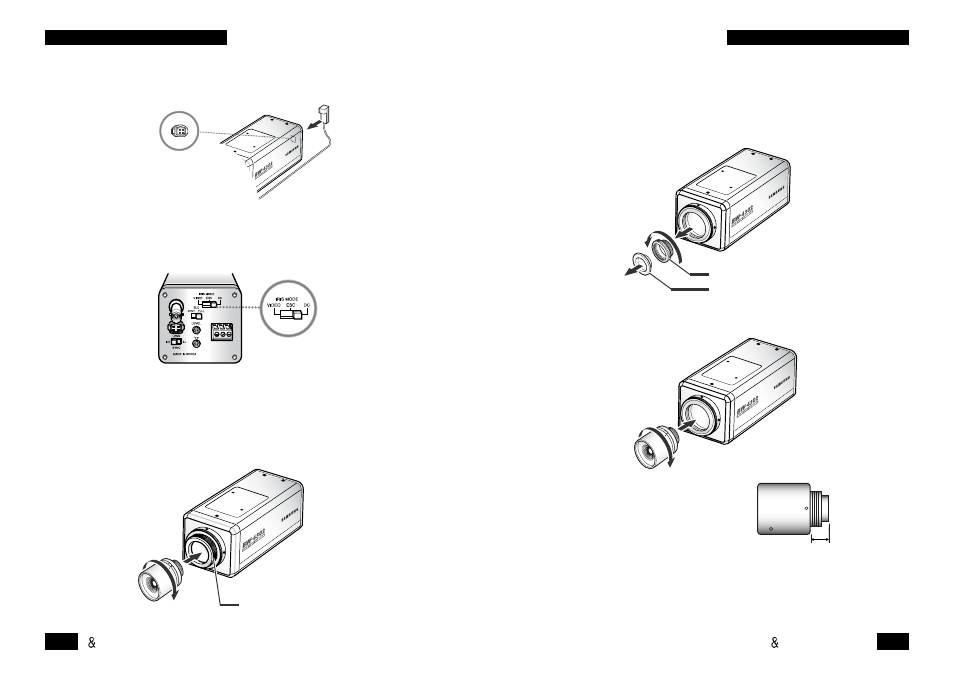

1. Remove the protecting cap and C-mount adapter.
2. Attach the lens into the camera by turning clockwise.
Notes:
• Use the lens under the specification aside.
• Otherwise the lens can damage the camera
or abnormal fixing may be resulted in.
• A heavy lens may disturb the balance with
the camera and possibly results in damage.
Don't use more than 450g lens.
• It is recommended to set the lens ALC mode to Av mode
(Average). Pk mode can be occurred hunting.
20 B W CCD CAMERA
C-mount lens : 14 mm or less
CS-mount lens : 9 mm or less
C-Mount Lens Adapter.
Glass Protecting Cap.
CONNECTION
5. Connect the lens plug to the auto iris connector on the
rear of the camera.
6. Set the IRIS Mode selection switch to Video according
to the type of the lens.
After removing the protecting cap, attach the lens into the
camera by turning clockwise.
CONNECTION
C-Mount Lens Adapter.
21 B W CCD CAMERA
