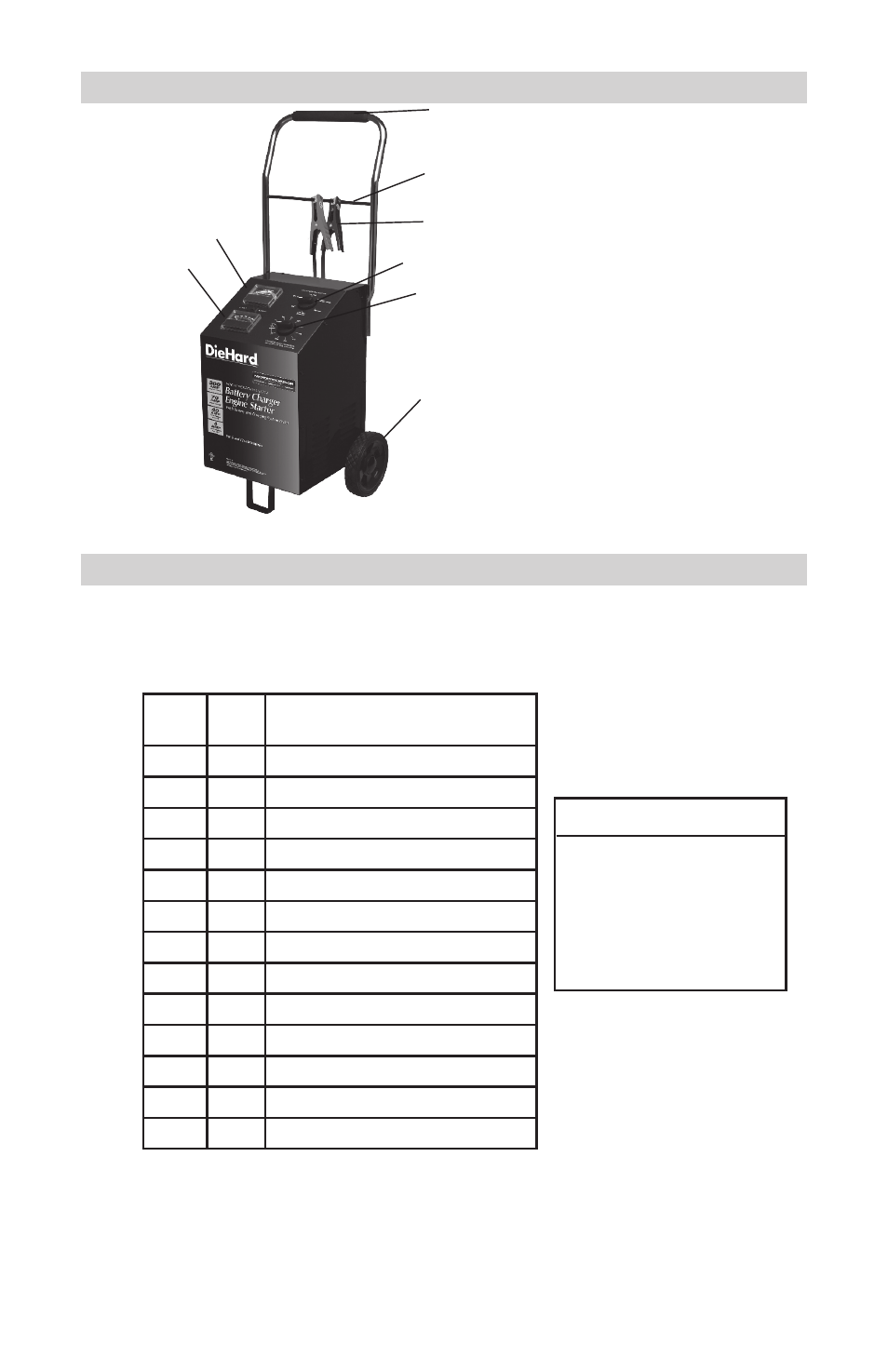

Sears 200.71991 - Manual (Page 11)

• 8 •
fEATURES 9.
ASSEMBLY INSTRUCTIONS 10.
IT IS IMPORTANT TO fULLY ASSEMBLE YOUR ChARGER BEfORE
USE. fOLLOW ThESE INSTRUCTIONS fOR ASSEMBLY:
ITEM
NO.
QTY dESCRIPTION
1 2 axle bracket
2 1 axle with pin holes
3 2 wheel
4 2 screw, 10-32 x 1/2, self tapping
5 2 screw, 1/4-20 x 3/4, self tapping
6 1 wheel charger foot
7 2 hubcap, black
8 2 hairpin cotter
9 2 nylon washer
10 4 screw, 8-18 x 1/2 sheet metal
11 1 handle assembly
12 1 fiberglass clamp rod
13 1 foam handle grip
1
2
3
4
5
6
7
8
Ammeter 1.
Volt Meter 2.
Foam Grip 3.
Fiber Glass Clamp Rod 4.
Clamps 5.
Charge Rate Selector Switch 6.
Timer 7.
Wheel 8.
TOOLS NEEdEd
5/16” Wrench or Nut Driver
3/8” Wrench or Nut Driver
Screwdriver (Flat Blade)
Screwdriver (Phillips)
Hammer
