7 (b) jai, inc. power cables, Figure 6. 12p-02s interface cable (optional), 7 (c) “k” series power supplies – JAI TM-2016-8/8CL User Manual

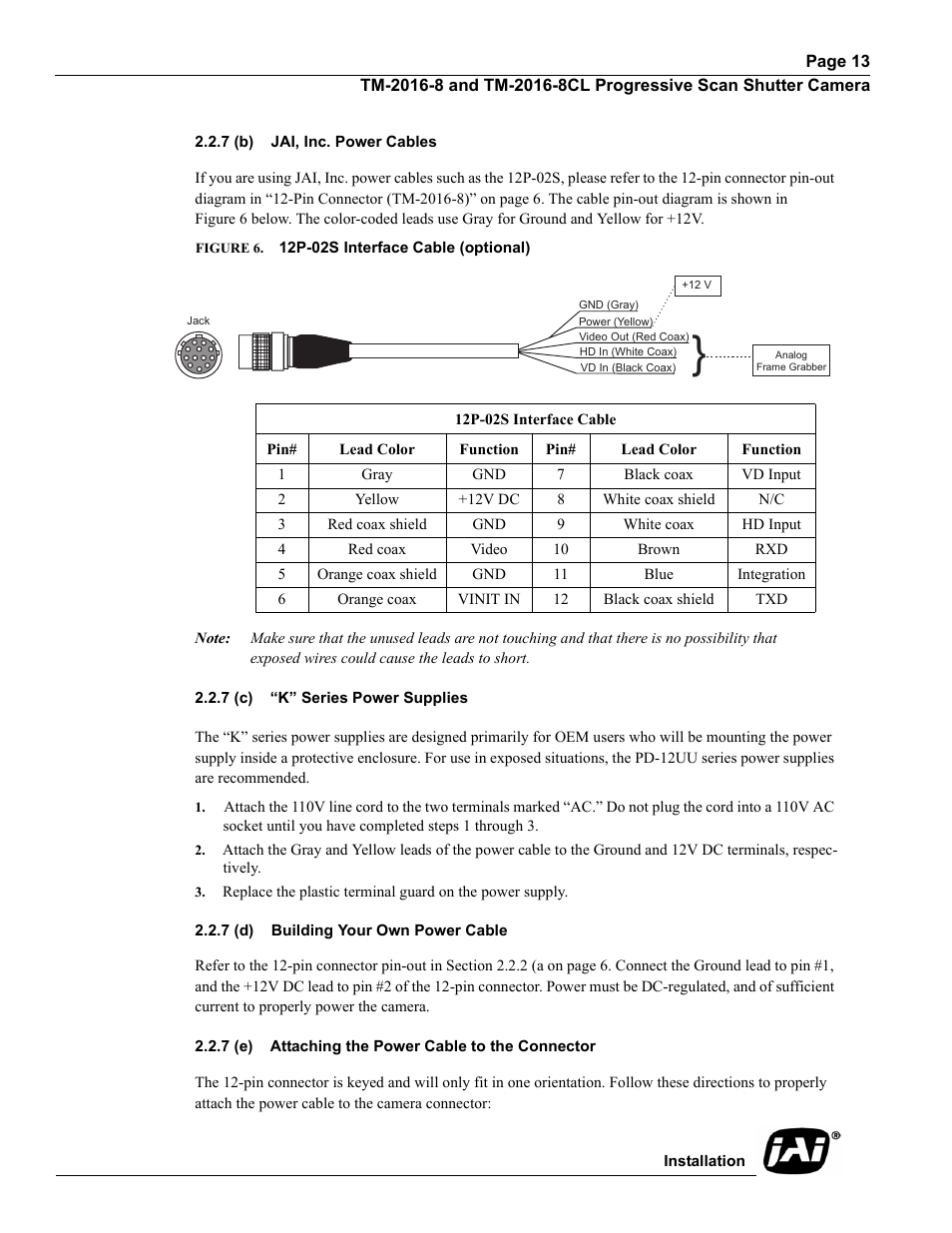

Page 23: 7 (d) building your own power cable, 7 (e) attaching the power cable to the connector, Figure 6, 12p-02s interface cable (optional)

Text mode
Original mode

7 (b) jai, inc. power cables, Figure 6. 12p-02s interface cable (optional), 7 (c) “k” series power supplies | 7 (d) building your own power cable, 7 (e) attaching the power cable to the connector, Figure 6, 12p-02s interface cable (optional) | JAI TM-2016-8/8CL User Manual | Page 23 / 44
