— 4 —

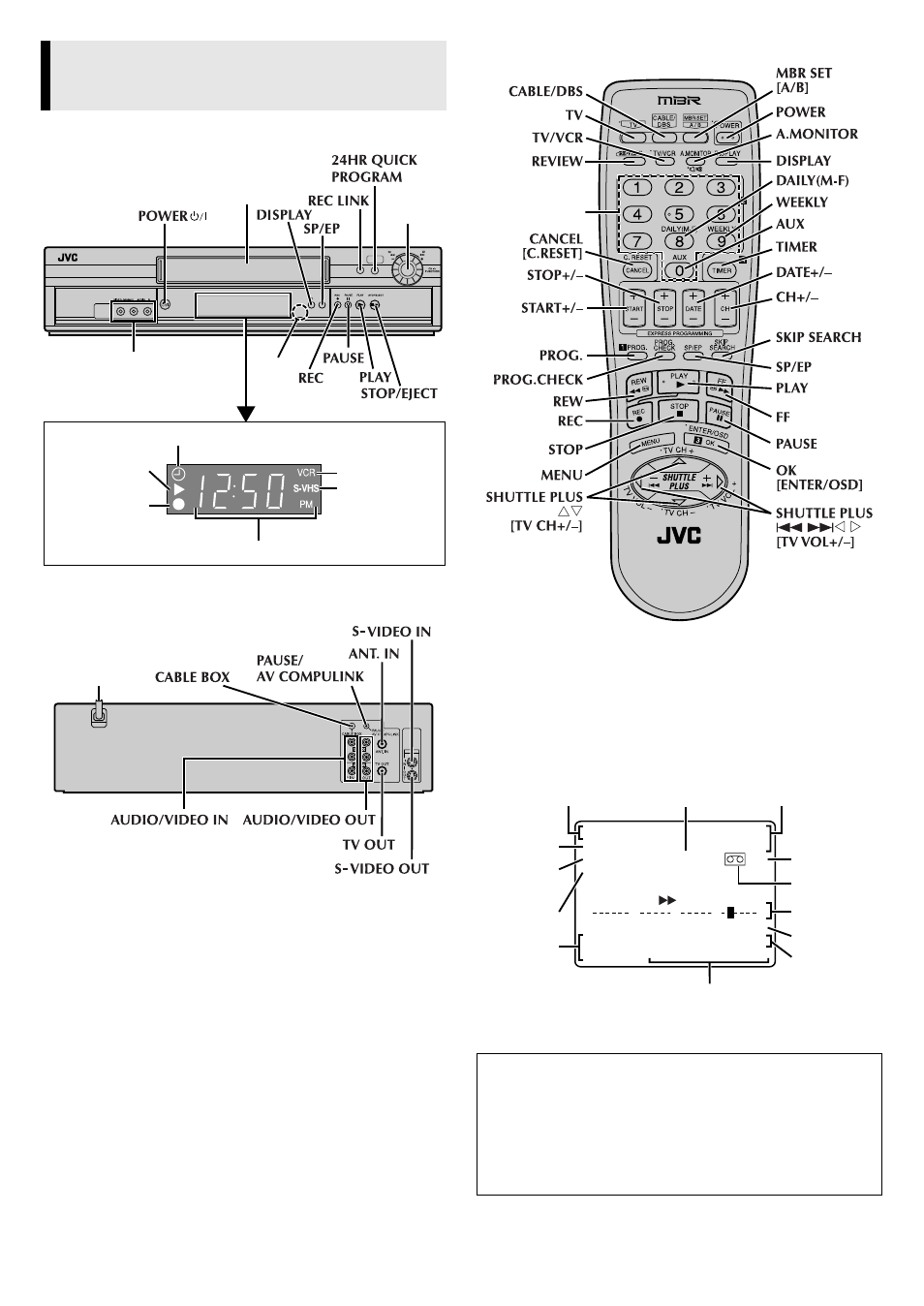

Front Panel
Rear Panel
Remote
On-screen display
If you press OSD (OK) on the Remote when “SUPERIMPOSE” is
set to “ON” (
੬
pg. 15), you can see the current VCR status on the
TV screen.
The indications are not recorded even if the VCR is in the
recording mode.
To recall an indication
Buttons, Connectors and
Indicators
REW FF
REC LINK
24HR QUICK
PROGRAM
POWER DISPLAY SP/EP
Cassette
loading slot
VIDEO/AUDIO input
connectors
Display panel
VCR mode
indicator
Play indicator
Record indicator
Timer mode indicator
Channel and auxiliary input/Clock time
Remote
sensor
Advanced
JOG dial
S-VHS
indicator
S-VIDEO
AC power cord
A Press OSD (OK).
● All indications corresponding to the current status are
displayed for 5 seconds. After that, the counter
information and RECORD/PAUSE if in the Record Pause
mode, are left displayed on the screen.
B Press OSD (OK) again to clear the display.
● The RECORD/PAUSE indication is left displayed on the
screen.
Number keys
B + + + E
CH125 RECORD
THU 12:00 AM PAUSE
STEREO –WARNING– SP
SAP TIMER RECORDING
TO START SOON
(CANCEL)
INDEX 1
NORM REMAIN 1:00
HI-FI COUNT – 1:23:45
Channel and
auxiliary input
Day and
clock time
STEREO
program
indication
SAP
indication
Audio
monitor
indications
VCR operation
mode
Tape speed
Cassette mark
Tape position
Index number
Timer warning display
Time counter
Tape
remaining time
