– 4 –

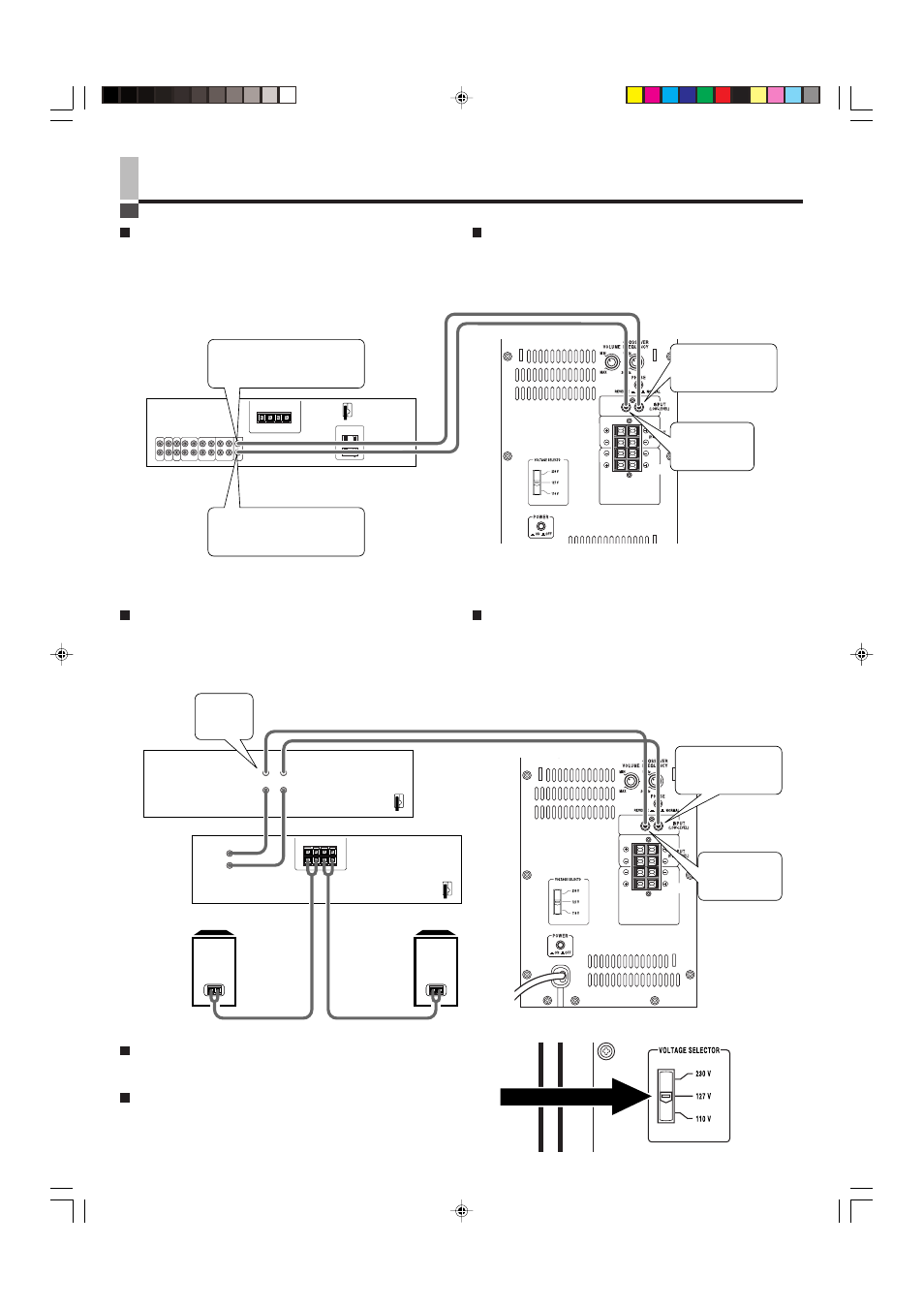

Connections (Continued)
Conexiones (Continuación)
Make all the connections before plugging the AC power cord into an AC outlet.
Efectúe todas las conexiones antes de desenchufar el cable de alimentación de CA de la toma de CA.
Conexión con un amplificador con terminales de salida
LINE OUT
Conecte a los terminales RIGHT y LEFT/MONO de INPUT (LOW-LEVEL).
Al conectar el cable, asegúrese de verificar los terminales derecho (RIGHT) e
izquierdo (LEFT), respectivamente.
• Utilice cables de conexión vendidos separadamente.
Connecting to a preamplifier set
Connect to the RIGHT and LEFT/MONO terminals of INPUT (LOW-
LEVEL).
Be sure to connect the correct cord to the RIGHT and LEFT
terminals, respectively.
• Use separately purchased connecting cords.
Conexión a un juego de preamplificador
Conecte a los terminales RIGHT y LEFT/MONO de INPUT (LOW-LEVEL).
Al conectar el cable, asegúrese de verificar los terminales derecho (RIGHT) e
izquierdo (LEFT), respectivamente.
• Utilice cables de conexión vendidos separadamente.
Set the voltage selector switch to the correct voltage
• Be sure that the AC power cord is disconnected before setting the voltage
selectors switch.
Ajuste del conmutador selector de tensión a la tensión
correcta
• Antes de ajustar el conmutador selector de tensión, asegúrese de comprobar
que esté desconectado el cable de alimentación de CA.
RIGHT
RIGHT
RIGHT
LEFT/MONO
LEFT
RIGHT LEFT
RIGHT LEFT
TO MAIN
SPEAKERS
Sound output (LINE OUT) (LEFT)
Salida de sonido (LINE OUT) (LEFT)
(Izquierda)
Sound output (LINE OUT) (RIGHT)
Salida de sonido (LINE OUT)
(RIGHT) (Derecha)
INPUT (LOW-LEVEL)
LEFT/MONO
INPUT (LOW-LEVEL)
LEFT/MONO
INPUT (LOW-LEVEL)
RIGHT
INPUT (LOW-LEVEL)
RIGHT
RIGHT
RIGHT
RIGHT
LEFT/MONO
LEFT
RIGHT LEFT
RIGHT LEFT
TO MAIN
SPEAKERS
OUTPUT
Salida
(OUTPUT)
INPUT (LOW-LEVEL)
RIGHT
INPUT (LOW-LEVEL)
RIGHT
INPUT (LOW-LEVEL)
LEFT/MONO
INPUT (LOW-LEVEL)
LEFT/MONO
Preamplifier
Preamplificador
Power amplifier
Amplificador de potencia
Connecting to an amplifier with LINE OUT output terminals
Connect to the RIGHT and LEFT/MONO terminals of INPUT
(LOW-LEVEL).
Be sure to connect the correct cord to the RIGHT and LEFT terminals,
respectively. (The LEFT and RIGHT terminals are mixed inside the unit.)
• Use separately purchased connecting cords.
