Step 7

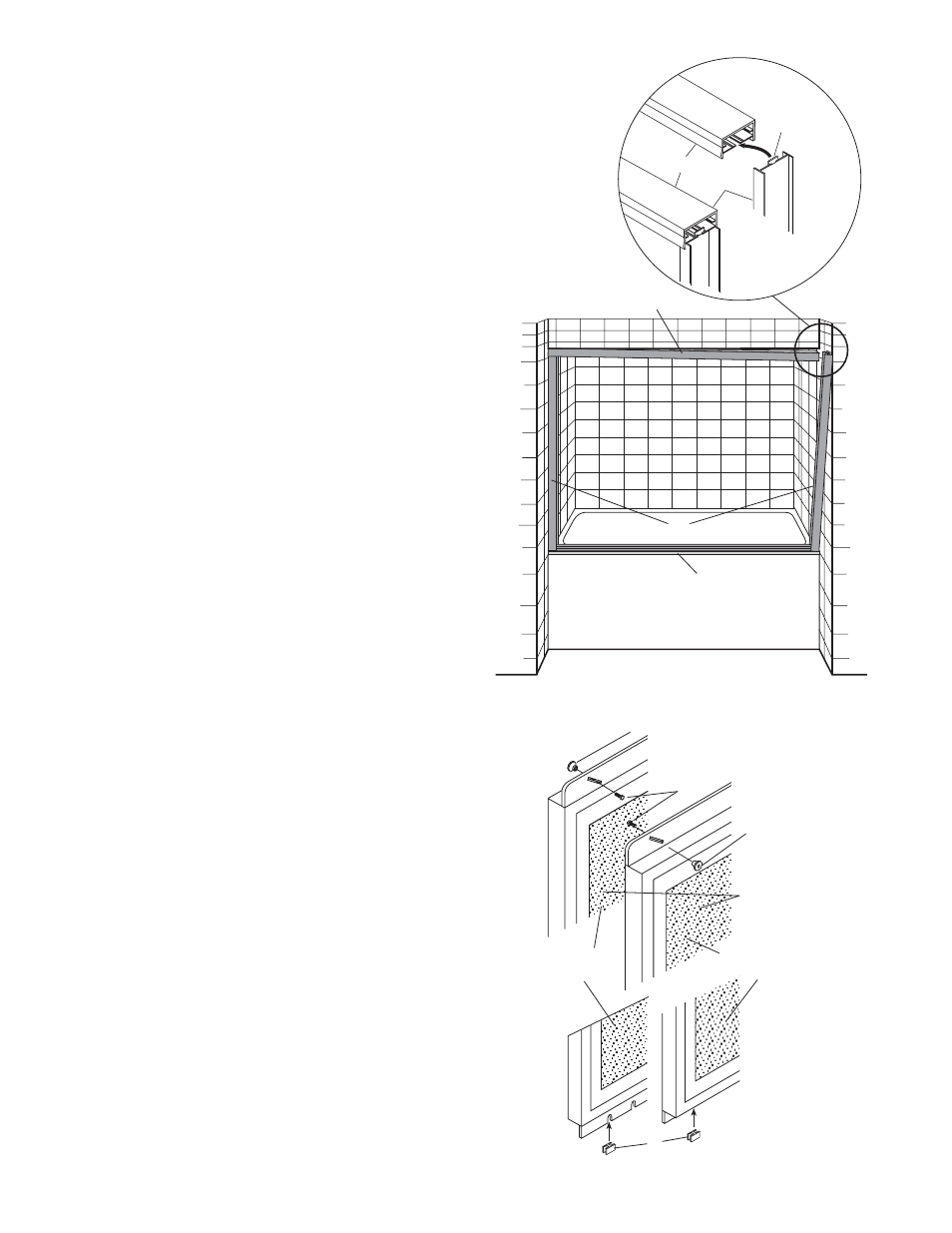

All units are equipped with safety tee-lock jambs.
When installed properly the header is permanently locked
to the jambs and cannot be accidently dislodged. Slide
the safety lock of the remaining wall jamb and jamb filler
into the header. The rounded surface of the header goes
to the exterior and the jamb filler should be positioned
with the opening closet to the exterior of the wall jamb.
Holding the header at an angle engage the opposite
end onto the mounted wall jamb and press the wall jamb
into position on the bath track. Attach to the wall per
Step 4.
I
D
TEE-LOCK
D
A
I
Step 8
Obscure glass panels are installed with the rough
side of the glass to the exterior. Attach rollers to the
interior panel (rough glass surface closest to the top fin)
and the exterior (rough surface away from the top fin
using four 8-32 x 3/8" hex head screws. Press four vinyl
silencers into the slots in the fin on the bottom of both
panels.
J
K
J
EXTERIOR
PANEL
INTERIOR
PANEL
ROUGH
SURFACE
