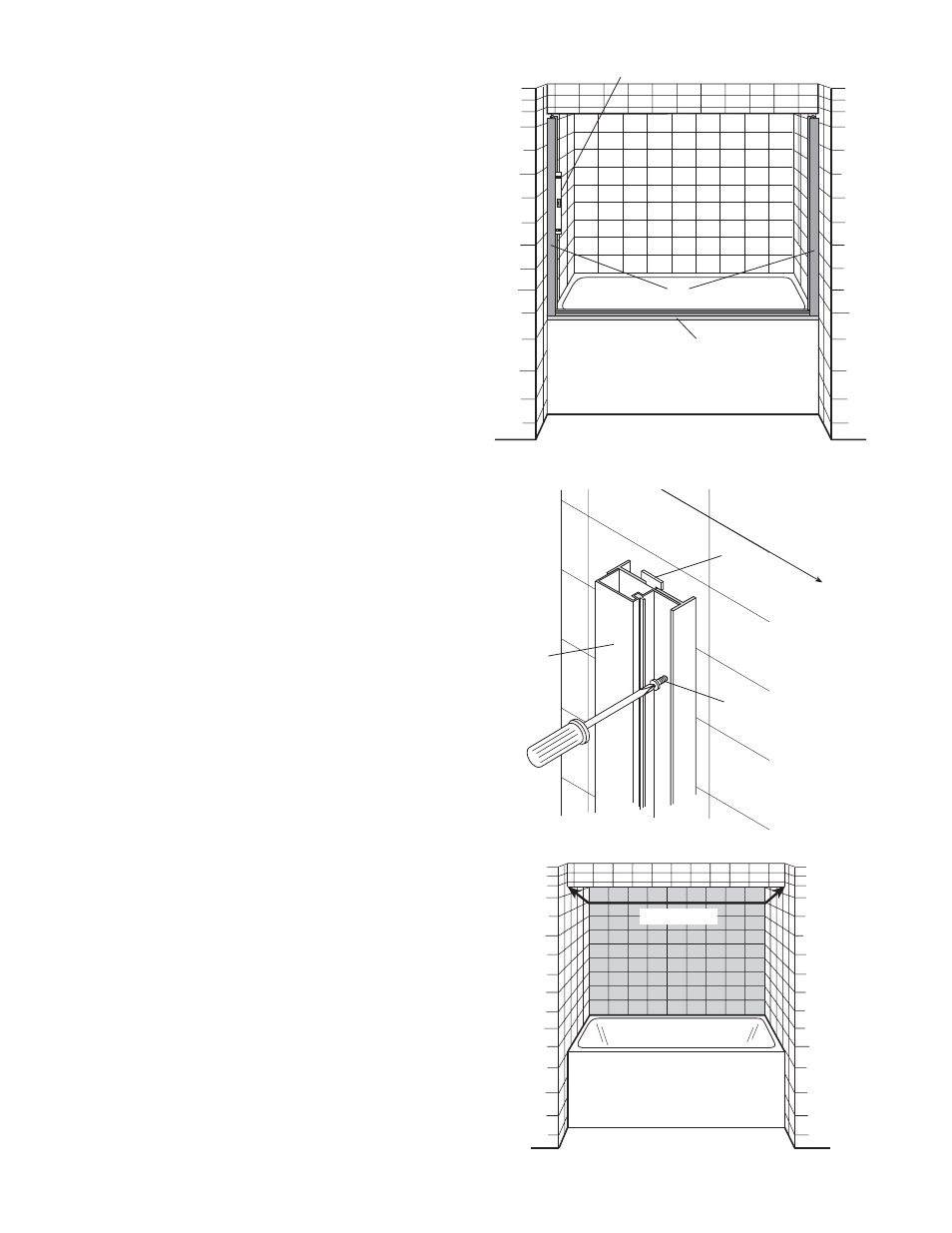

Step 4

Position the wall jambs on each end of the bath track

with notches in the bottom of the jambs pressed securely
over the bath track. Use a level to plumb each wall jamb.
Make a pencil mark on the wall through each of the holes
in the wall jamb. Remove all parts and drill the walls in
the locations marked using an 1/8" diameter drill. In tile
walls drill 7/32" diameter holes and insert plastic wall
plugs.

D

A

PLUMB EACH JAMB

Step 6

Measure the wall to wall opening at the top of the

mounted wall jamb. Cut the header 1/16" short of this
measurement. Check the header for fit.

MEASURE

Step 5

Apply a continuous bead of caulking on the bottom of

the bath track vinyl. Carefully replace the bath track in
the position marked in Step 3. Slide the two pieces of
jamb vinyl into the jamb filler. Replace the wall jamb
closest to the shower head. The jamb filler should be
installed with the opening closest to the interior of the
bath. (This insures maximum waterproofing by position-
ing the interior glass panel closest to the shower head.)
Attach the jamb and jamb filler to the wall with three #8
x 1-1/2" truss head screws.
