2.
Carefully unsnap the plastic trim ring from the front of the new radio chassis. Remove and
discard the trim ring.
3.

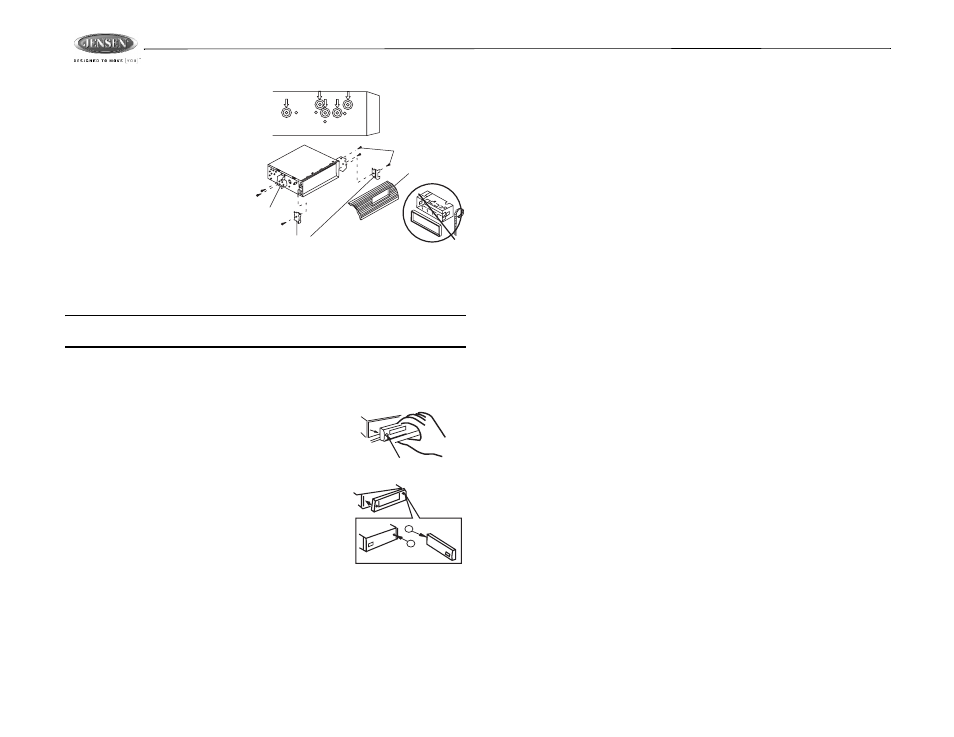

Remove the factory mounting
brackets and hardware from
the existing radio and attach
them to the new radio. Select
a position where the screw
holes of the bracket and the
screw holes of the main unit
are aligned (are fitted).
Tighten the screws at 2
places on each side. Do not
exceed M5 x 9 MM maximum
screw size. Longer screws
may damage components
inside the chassis.
4.
Wire the new radio to the
vehicle as outlined in the Universal Installation instructions.
5.
Mount the new radio assembly to the dashboard or center console using the reverse
procedure of step 1.
NOTE: The mounting box, outer trim ring, and half-sleeve are not used for method B
installation.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
Detachable Control Panel (DCP)
Removing the Detachable Control Panel (DCP)
1.
Turn the power off.
2.
Press the REL button.
3.
Remove the DCP.
Attaching the DCP
1.
Attach the panel at the right side first, with point B on the
main unit touching point A on the DCP (as shown in the
diagram).
2.
Press the left side of the DCP onto the main unit until a
“click” is heard.
CAUTION:
•
DO NOT insert the DCP from the left side. Doing so may
damage it.
•
The DCP can easily be damaged if dropped or
subjected to a strong shock. When the release button is pressed and the DCP is
unlocked, the vehicle's vibrations may cause it to fall. To prevent damage to the DCP,
always store it in a protective case after detaching it.
•
The rear connector that connects the main unit and the DCP is an extremely important
part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
•
If the DCP is dirty, remove debris with a soft, dry cloth only. You can use a cotton swab
soaked in isopropyl alcohol to clean the socket on the back of the DCP.
