Location of the Buttons and Controls
Become familiar with the buttons and controls on your unit.

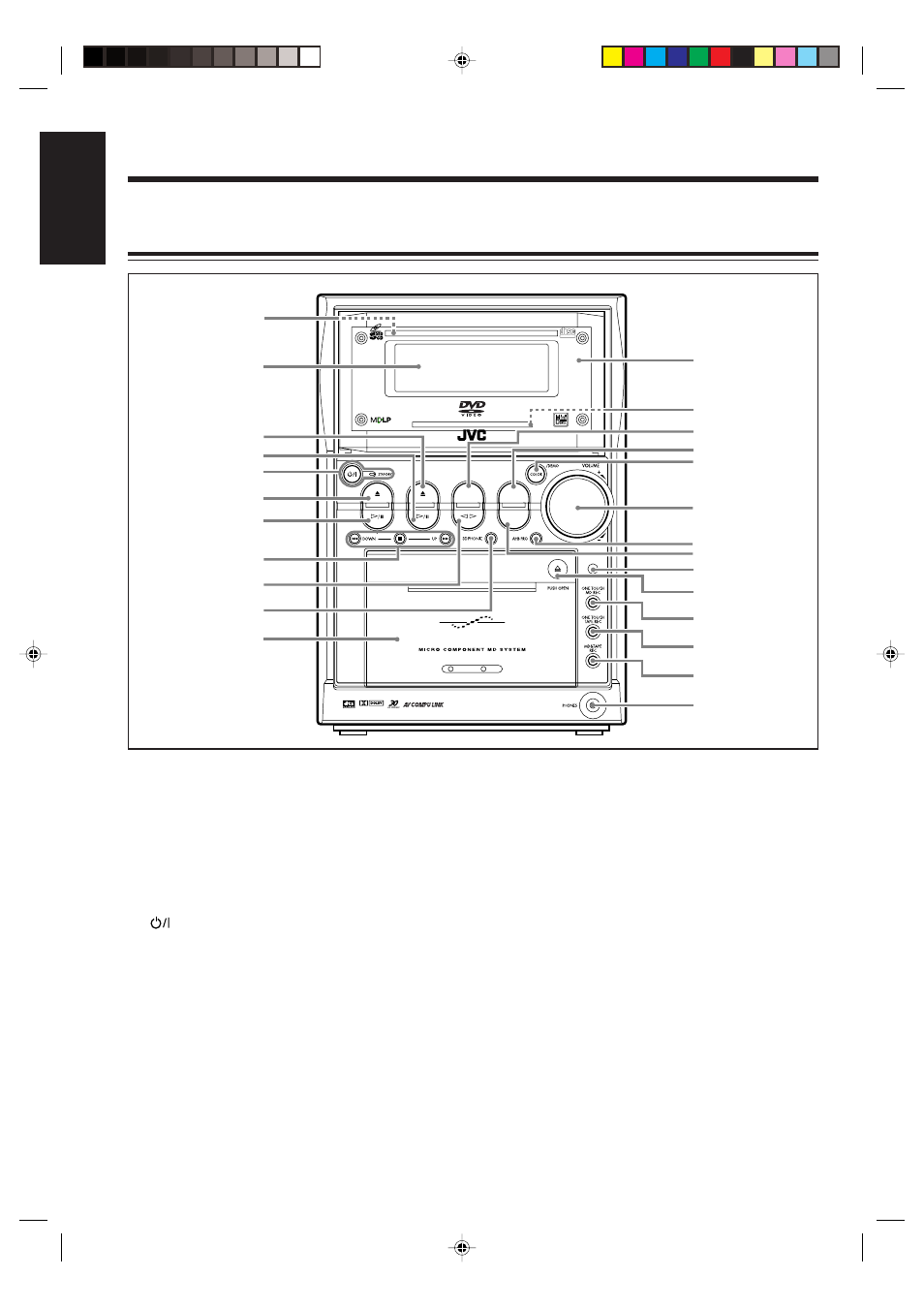

Main Unit
Main unit
See pages in parentheses for details.
1 Disc tray (inside the electronic swing panel) (28)
2 Display window (4)
3 MD
0 (eject) button (19, 41, 81, 82)
• Pressing this button also turns on the unit.
4 MD
#¥8 (play/pause) button (19, 20, 41)
• Pressing this button also turns on the unit.
5
(Standby/On) button and STANDBY lamp (19, 25,
90, 91)
6 DVD
0 (eject) button (19, 28 – 30, 86, 87)
• Pressing this button also turns on the unit.
7 DVD
#¥8 (play/pause) button (19, 20, 28 – 33, 86)
• Pressing this button also turns on the unit.
8 Multi operation buttons
• DOWN and UP buttons
•
4 (reverse search/fast-wind to the left), 7 (stop)
and
¢ (forward search/fast-wind to the right)
buttons
9 TAPE
@ # (play) button (19, 20, 48)
• Pressing this button also turns on the unit.
p 3D PHONIC button (55)
q Cassette holder (48)
w Electronic swing panel
e MD loading slot (inside the electronic swing panel)
(41)
r REV. MODE button (23, 48, 89)
t AUX button (19, 20, 23)
• Pressing this button also turns on the unit.
y COLOR/DEMO button (13, 22)
u VOLUME
+ / – control (20)
i AHB PRO (Active Hyper Bass Pro) button (21)
o FM/AM button (19, 20, 25)
• Pressing this button also turns on the unit.
; Remote sensor
a
) (PUSH OPEN) (48)
• Push this mark to open and close the cassette holder.
s ONE TOUCH MD REC button (59, 61)
d ONE TOUCH TAPE REC button (63)
f MD&TAPE REC button (64)
g PHONES jack (20)
