C O N N E C T I O N S

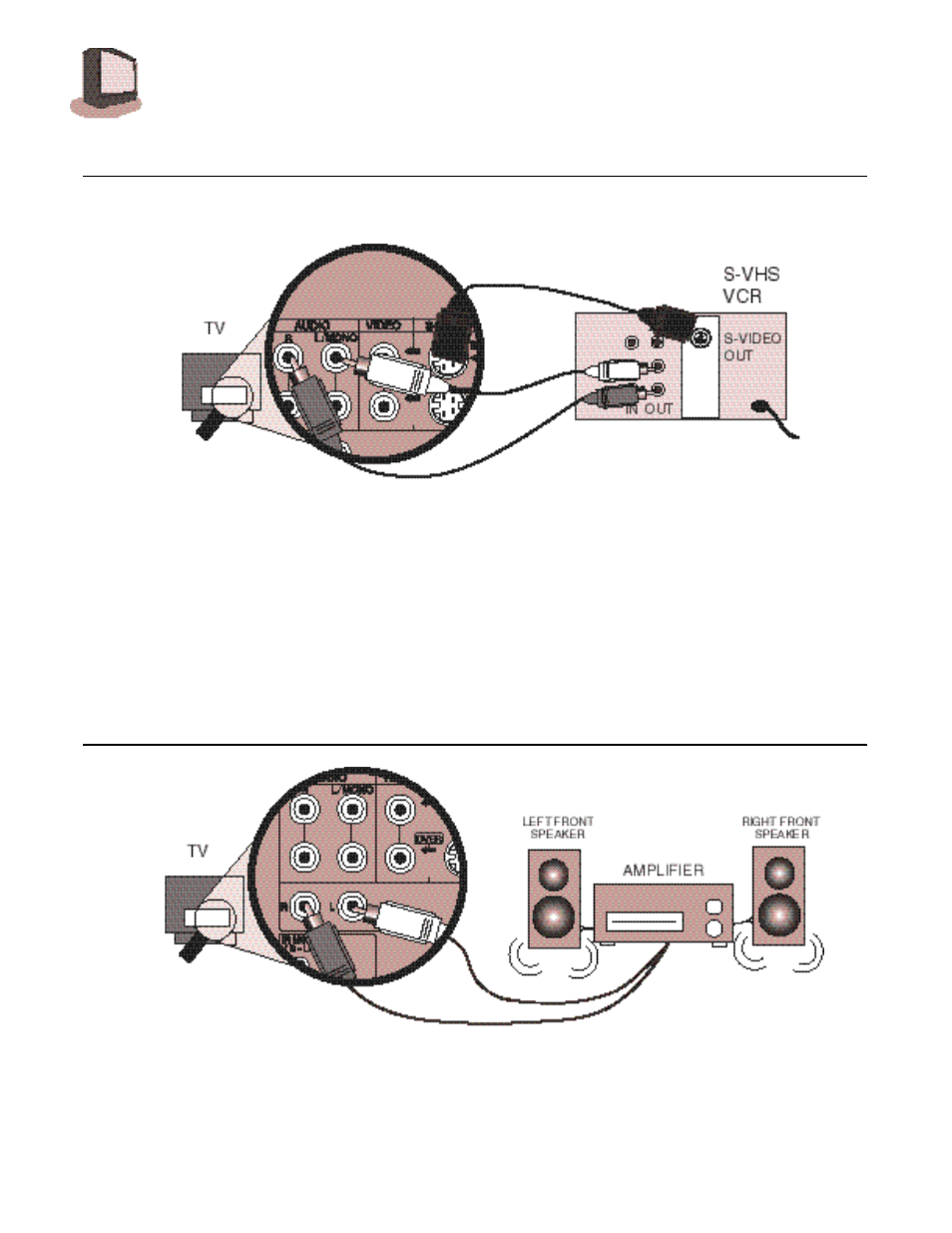

Keep the audio connections the same as for a non-S-VHS VCR or camcorder (page 9), and use the
special S-VHS cable that came with the VCR or Camcorder. (This illustration is of an S-VHS VCR
hookup — the same connections will apply for an S-VHS camcorder.)

1) S-VHS Plug out from VCR, in to TV’s S-Video input.

CONNECTING S-VHS ACCESSORIES (VCR or Camcorder)

CONNECTING TO AN EXTERNAL AMPLIFIER

1) White audio cable out from TV Left Audio output jack, in to Amplifier [Left] input.

2) Red audio cable out from TV Right Audio output jack, in to Amplifier [Right] input.

NOTE: A) Set the TV Speaker to OFF (page 39), switch the audio output to VARI (page 39), and

adjust the sound with the TV remote’s V

OLUME

button.
