C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.

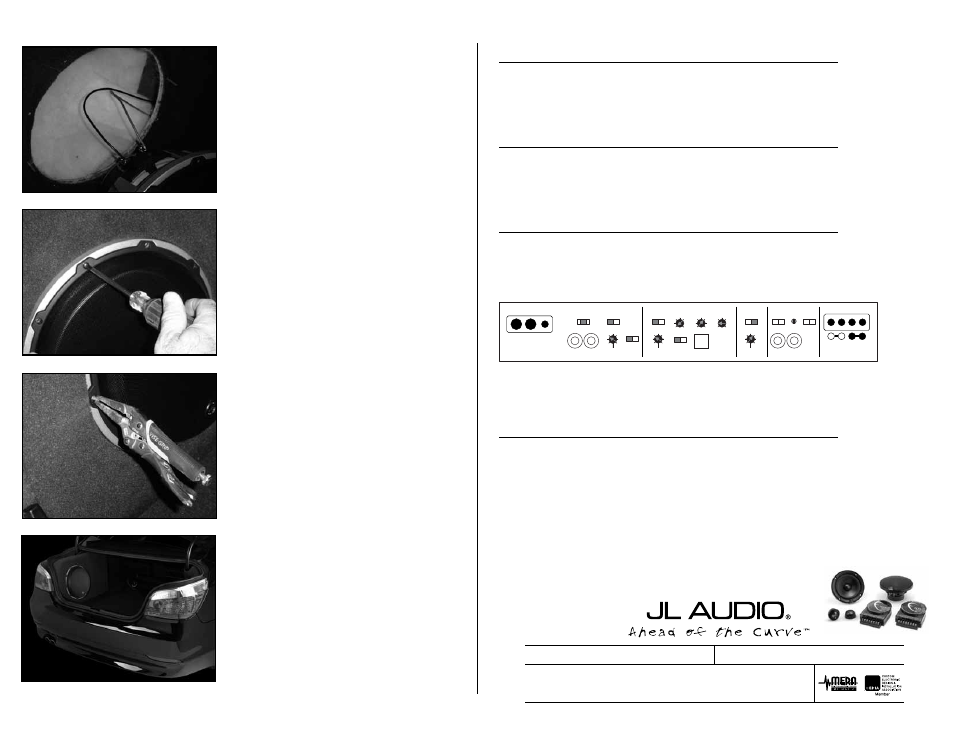

S T E P 2 2
Remove the two threaded rods, a pair of pliers help with this
removal.
Finish securing the woofer with the last two mounting
screws.
S T E P 2 1
Using the threaded rods as guide, place the woofer back
onto the Stealthbox® and mount.
S T E P 2 0
Attach the proper speaker wires to the woofer’s terminal.
Page 3 • JL Audio, Inc 2007
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU#011233 -05-01-200 JLA-SKU#011233 -05-01-2007 7 • Printed in USA • ©2007 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902
#6,243,479 #6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign
patents pending. For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100 w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
(1) (1) 7/8-inch(L) x 3/4-inch(OD) x 3/8-inch(ID) Spacer 7/8-inch(L) x 3/4-inch(OD) x 3/8-inch(ID) Spacer (1) (1) 3/8-inch -16 x 3” Set Screw Stud 3/8-inch -16 x 3” Set Screw Stud
(1) (1) 3/8-inch -16 x 5/8-inch Weld Nut 3/8-inch -16 x 5/8-inch Weld Nut (1) (1) 3/8-inch -16 Hex Nut 3/8-inch -16 Hex Nut
(1) (1) 3/8-inch Spilt Lock Washer 3/8-inch Spilt Lock Washer (3) (3) Button Head Rivet Button Head Rivet
(1) (1) 3/8-inch Flat Washer 3/8-inch Flat Washer
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed) Acoustic Suspension (sealed)
Driver Type: 12W6v2-D4 12W6v2-D4
Nominal Impedance: 2 ohms mono 2 ohms mono
Continuous Power Handling: 400 Watts 400 Watts
P O W E R R E C O M M E N D A T I O N P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio 500/1v2.
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 500/1v2
when being used to power your Stealthbox
® .
+12VDC Remote Ground
JL AUDIO 500/1
five-channel system amplifier
+ _ _ +
Subwoofer Output
MONO OUTPUT ONLY 40
45
55 65 85
120
200
Filter Freq. (Hz)
Mode / Slope
Off / 12dB / 24dB
Amp LP Filter
Infrasonic Freq. (Hz)
15
18
25 30 40
50
60
Off / 30Hz
Infrasonic Filter
0.5
0.7
1.1 1.6 2.7
4.3
"Q"
20
25
35 45 55
70
85
Center Freq.
0
+4 +10 +13
+15
Boost (dB)
Off / On
Bass EQ
Remote Bass Port
Advanced
Bass
Control
Preamp Output Section
Full Range / Amp Filter / Out Filter
Output Mode Filter Slope
12dB / 24dB
40
45
55 65 85
120
200
Filter Freq. (Hz) Left Ch. Right Ch.
Filter Mode
LP / HP
Amplifier Input Section
Input Sens.
Left Ch. Right Ch.
Signal Sensing
Off / On
Input Voltage
Low / High
The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 4.0-inch / Front Doors 4.0-inch / Front Doors
Fits JL Audio Models: TR400-CXi TR400-CXi
Rear Speaker Size / Location: 4.0-inch / Rear Door 4.0-inch / Rear Door
Fits JL Audio Models: TR400-CXi TR400-CXi
